Melex N.20 / N.30 2024-2026 48V Fleet Lithium Conversion Kit
Drop-in lithium conversion kit for the Melex N.20 / N.30 2024-2026 48V system. Replaces the factory lead-acid battery pack with a purpose-built Fleet Lithium bundle sized for your vehicle's tray and electrical demands.
What's Included

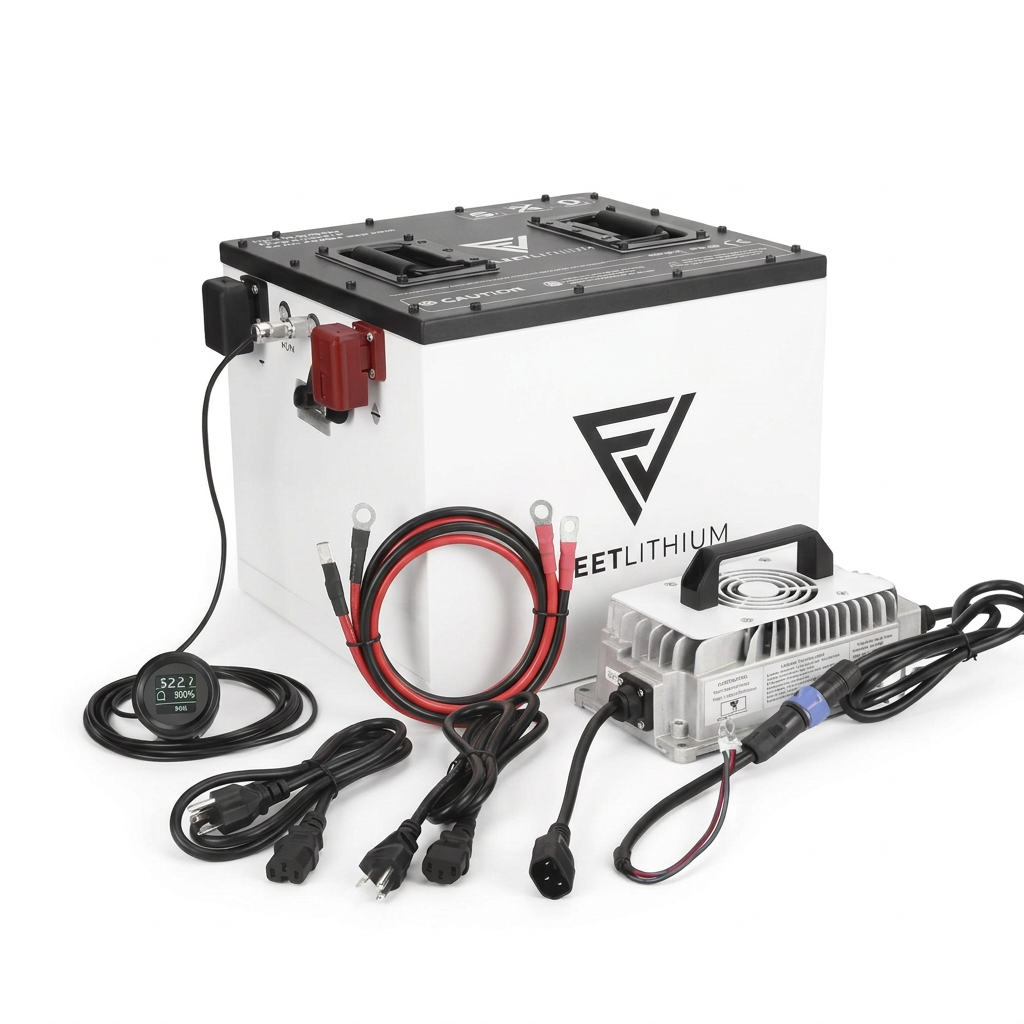

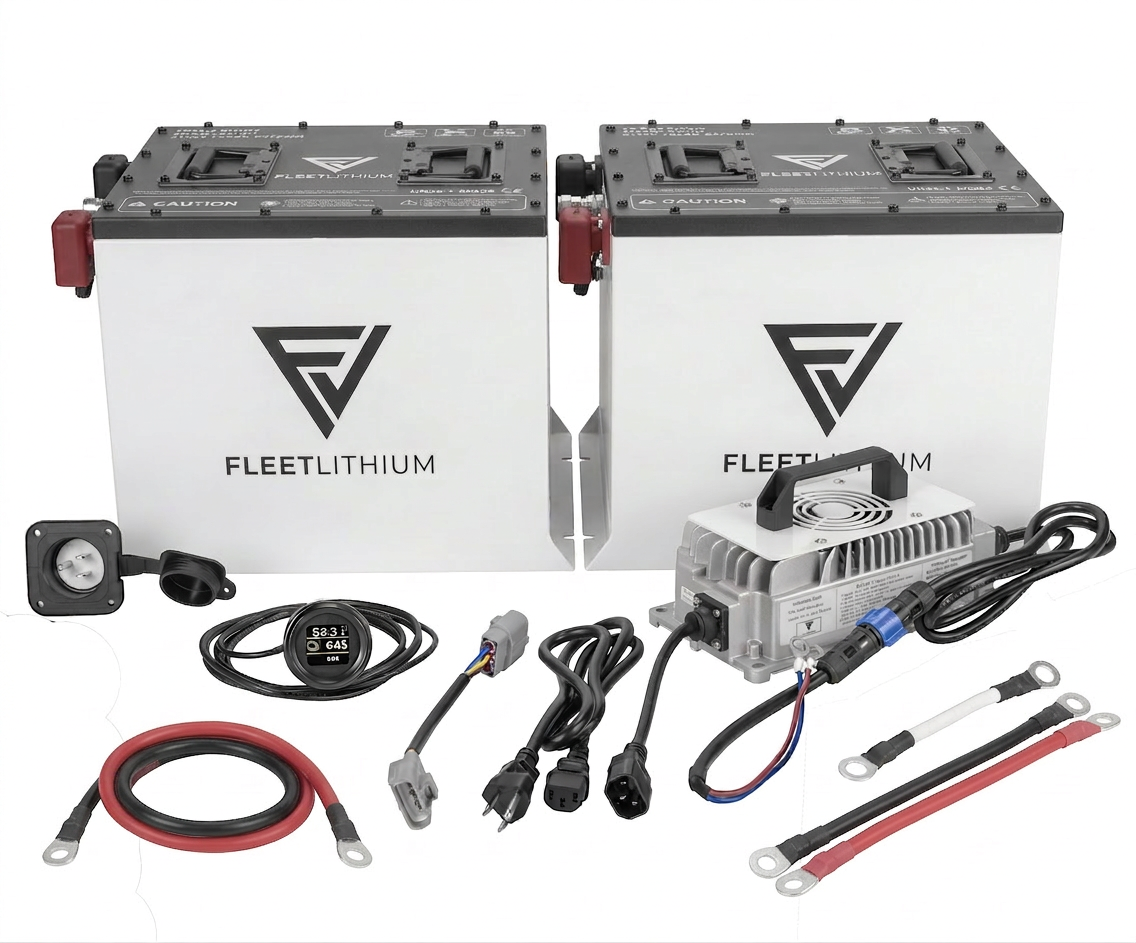

- Fleet Lithium 48V battery pack — choose 65Ah, 105Ah, 168Ah, 210Ah
- Vehicle-specific bracket kit matched to the factory tray
- Matched lithium charger with OEM-style plug
- Hardware and wiring adapters required for installation
Fitment & Compatibility
- Vehicle: Melex N.20 / N.30 2024-2026 48V
- Factory battery config: Eight 6V Trojan T-125 lead-acid batteries
- Vehicle class: Passenger / LSV
Controller / Electrical Note: 48V factory drive. Fleet packs provide 300A continuous and 800A peak. Confirm the visible controller label and stock configuration before installation; modified controllers require separate electrical review.
Modification Required: Replace or bypass the factory lead-acid charger with CH5618, install the Fleet SOC gauge, and retain required DC-DC/accessory feeds. Do not drill frame rails. Ships with a vehicle-specific bracket kit, matched to your factory tray — no frame drilling required.
Fitment Notes: Use only after the customer selects N.20 - eight 6V lead-acid batteries. Confirm battery count, voltage, chemistry, controller/charger labels and the photographed physical layout.
Why Fleet Lithium
- 10-year warranty on Promise-series packs
- Bluetooth-enabled NexGen BMS with 300A continuous / 800A peak surge discharge
- Heated cold-weather operation and CAN/RS485 communication support
- Ships from the USA; shipping calculated at checkout
Quick answer: the Melex N.20 / N.30 2024-2026 48V Fleet Lithium Conversion Kit from Fleet Lithium has nominal voltage 51.2V, capacity 65 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), cell chemistry Lithium iron phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Cell Chemistry
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge , Advanced Battery Management System (BMS) , Internal Heating for Cold Temp Charging , Active Cell Balancing for Extended Life Cycle , Built in Fire Extinguisher for Ultimate Safety
- Safety Features
- Thermal Regulation (Heated Cells) , Low Voltage Disconnect (LVD) , Over Charge / Discharge Protection , Over Current Protection
- Battery Features
- EV Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC) , Discharging: -4 to 149 ºF (-20 to 65 ºC) , Storage: 50 to 113 ºF (10 to 45 ºC)
Dimensions & Weight
- Dimensions (L x W x H)
- Weight
- 85.0 lb
Fitment & Compatibility
- Make
- Model
- Model Year
- 2024 , 2025 , 2026
- Model Number
Warranty & Compliance
- Warranty
- Certifications & Standards
- UL 1642, UL 1973, CE, RoHS, UN 38.3, IP67
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Lithium Battery Conversion Kit
- SKU
- KIT-MELEX-n20n30-48-65-MLN2048
