76.8V 168Ah Fleet Lithium Battery Bundle — NexGen BMS
76.8V 168Ah Fleet Lithium Battery Bundle — NexGen BMSis backordered and will ship as soon as it is back in stock.
76.8V 168Ah Fleet Lithium Battery Bundle — NexGen BMS
76.8V 168Ah Fleet Lithium Battery Bundle — NexGen BMS
Complete 76.8V 168Ah LiFePO4 battery bundle with 300A NexGen BMS. Engineered for high-demand 72V vehicles like Textron Prowler EV, Bad Boy Buggy Recoil, and Cushman Hauler PRO. Stores 12,902Wh of energy for maximum range and all-day power.
What's Included

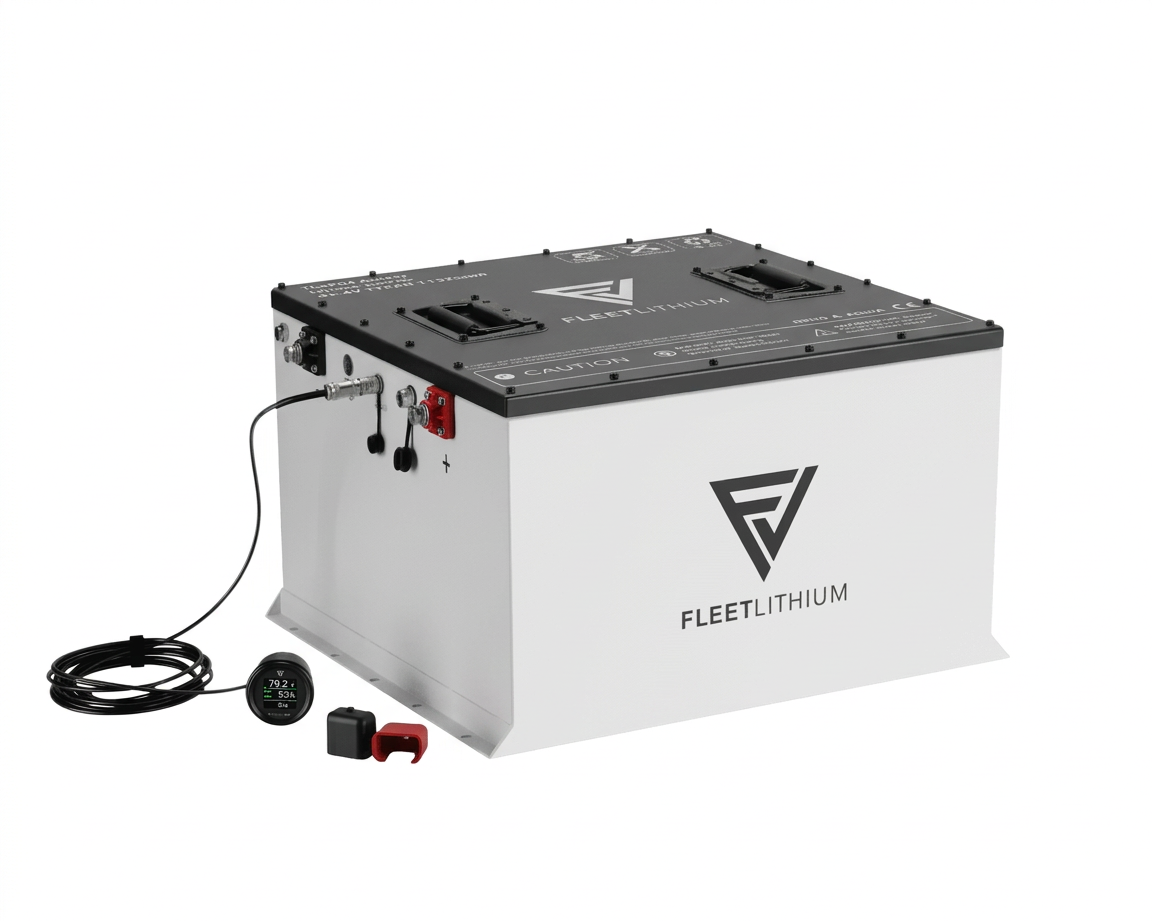

- 76.8V 168Ah NexGen Fleet Lithium LiFePO4 Battery

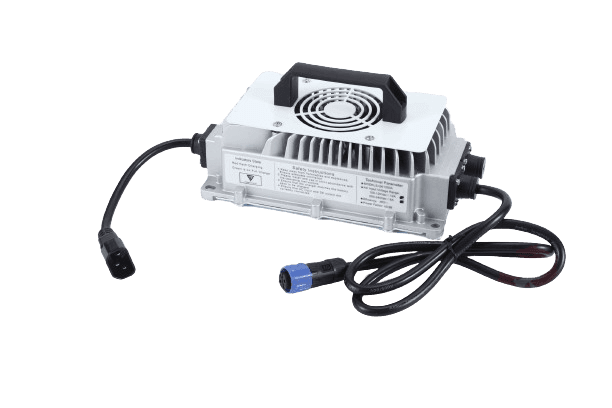

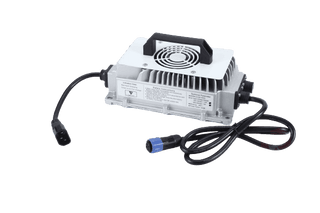

- 20A Waterproof Lithium Fast Charger

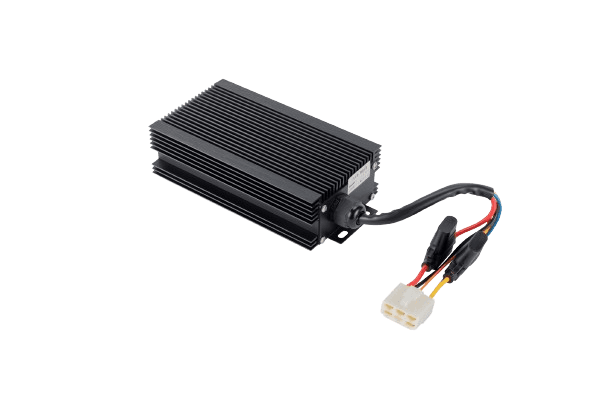

- 30A 12V Voltage Reducer

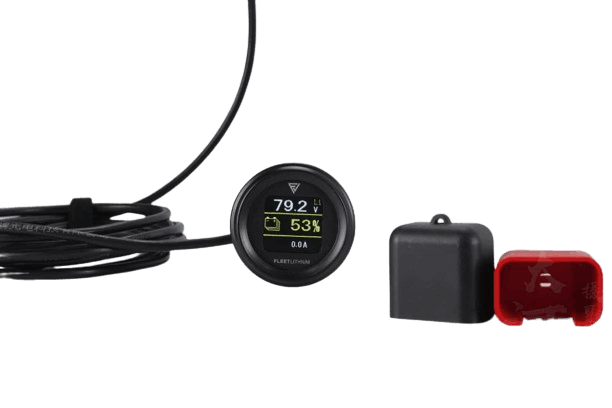

- Round State-of-Charge Meter
- Universal Charge Receptacle
Key Specs
- Chemistry: LiFePO4
- Nominal Voltage: 76.8V
- Capacity: 168Ah (12,902Wh)
- 300A NexGen BMS with 800A peak surge
- Cycle Life: 5,000+ cycles at 80% DoD
- Weight: 149 lbs
- Dimensions: 20.51" × 20.24" × 10.94"
- Built-in cold-weather heater — activates automatically below 32°F
- Patent-pending fire suppression system
- Bluetooth monitoring — voltage, temp, cycle count via iOS/Android
- Built-in parallel board for expansion
Safety & BMS
Active cell balancing, overcharge/over-discharge/short circuit/overcurrent/thermal/reverse polarity protection, low voltage disconnect, and real-time app monitoring.
FAQ
What vehicles does this fit? Designed for high-amperage 72V vehicles — Textron Prowler EV, Bad Boy Buggy Recoil, Cushman Hauler PRO/PRO-X, and similar platforms. No vehicle-specific bracket included.
Does it include a charger? Yes. A 20A waterproof lithium fast charger is included.
Does it work in cold weather? Yes. Built-in heater activates automatically below 32°F — standard on every pack.
10-year warranty. Designed and assembled in the USA.
Quick answer: the 76.8V 168Ah Fleet Lithium Battery Bundle — NexGen BMS from Fleet Lithium has nominal voltage 76.8V, capacity 168 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), cell chemistry Lithium iron phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Cell Chemistry
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge , Advanced Battery Management System (BMS) , Internal Heating for Cold Temp Charging , Built in Fire Extinguisher for Ultimate Safety , Patent-Pending Fire Suppression System , Real-time status monitoring (via app or display) , Active Cell Balancing for Extended Life Cycle , Bluetooth Communication with BT 5.0
- Safety Features
- Thermal Regulation (Heated Cells) , Low Voltage Disconnect (LVD) , Low Temp Charging Cutoff , Over Charge / Discharge Protection , Reverse Polarity Protection , Built in Fire Extinguishers
- Battery Features
- EV Battery Features
- Operating Temperature
- Charging: 0°C to 45°C (32°F to 113°F) , Discharging: -20°C to 60°C (-4°F to 140°F)
Dimensions & Weight
- Dimensions (L x W x H)
- Weight
- 149.0 lb
Fitment & Compatibility
- Make
- Model
- Model Number
Warranty & Compliance
- Warranty
- Certifications & Standards
- UL 1642, UL 1973, CE, RoHS, UN 38.3, IP65, MSDS
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Lithium Battery Bundle
- SKU
- 76V168-NEXG
