76 Volt 105 AH Fleet Lithium Bundle

76 Volt 105Ah Fleet Lithium Battery Bundle

Overview

The 76 Volt 105Ah Fleet Lithium Battery Bundle is designed to deliver high power output for demanding applications. With a high voltage and substantial capacity, this bundle is ideal for high-performance electric vehicles, off-grid energy storage, and large marine systems. It comes complete with all the necessary components, ensuring an easy installation and reliable performance over time. Whether you need to power a large system or maintain a stable energy supply for off-grid solar, this bundle provides an efficient and durable solution.

What’s Included in the Bundle

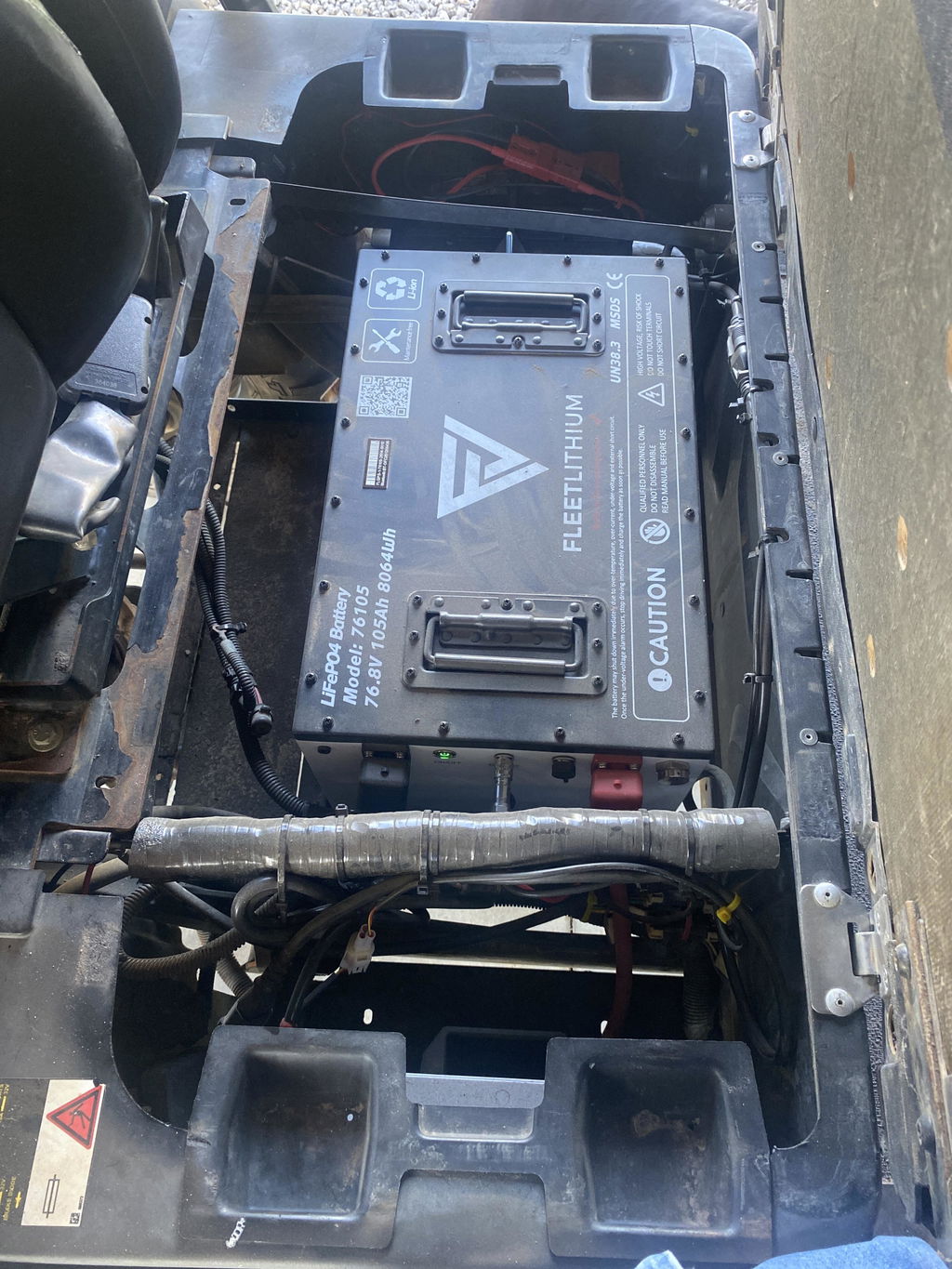

• 1 x 76 Volt 105Ah Fleet Lithium Battery: High-capacity battery designed for large-scale energy storage and high-power applications.

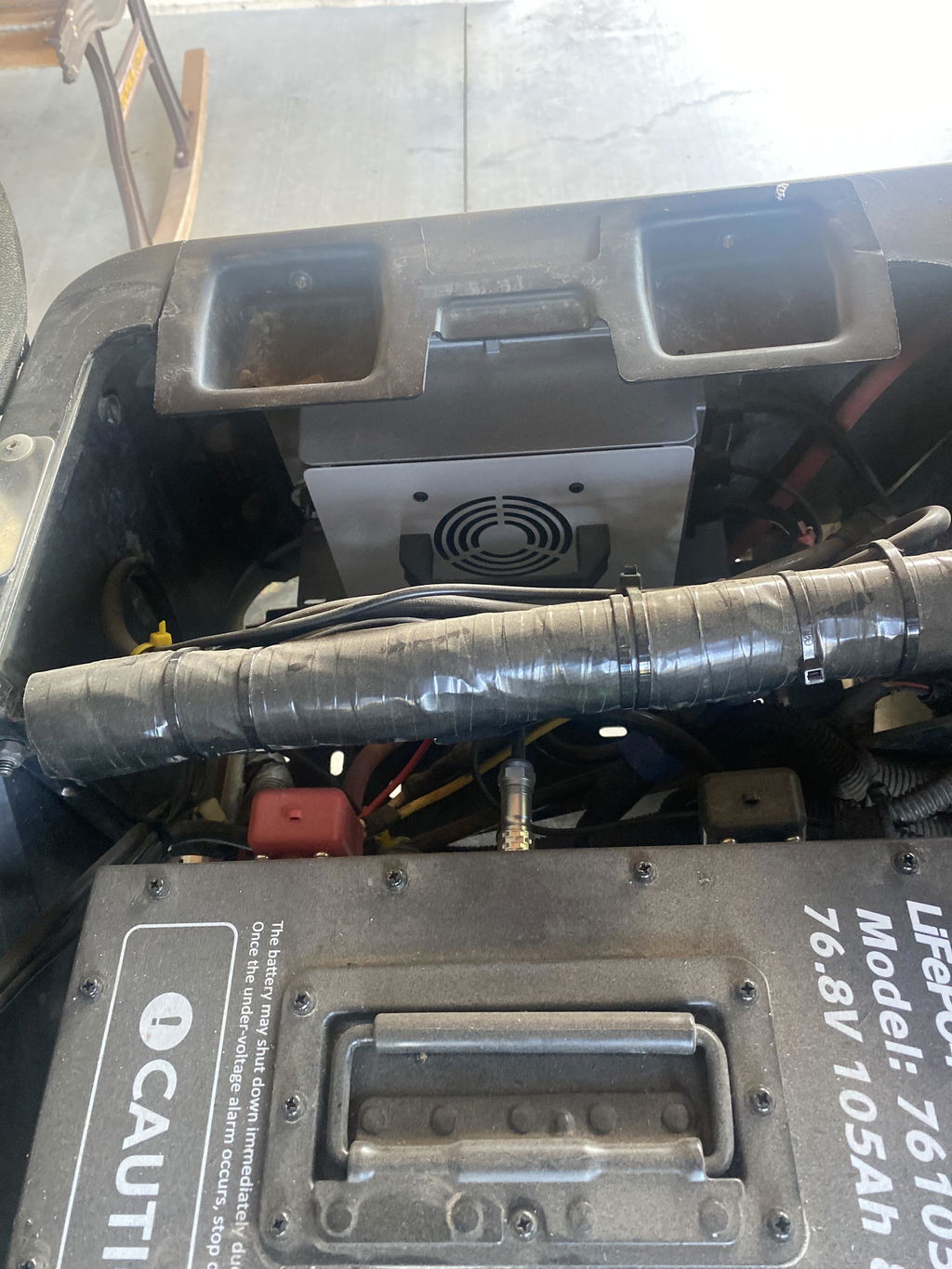

• 1 x 76 Volt Lithium Battery Charger: Efficient charger designed to quickly and safely recharge the 76V battery.
• 1 x Bluetooth Module: Enables real-time monitoring of battery performance and state of charge via mobile app, ensuring easy management.

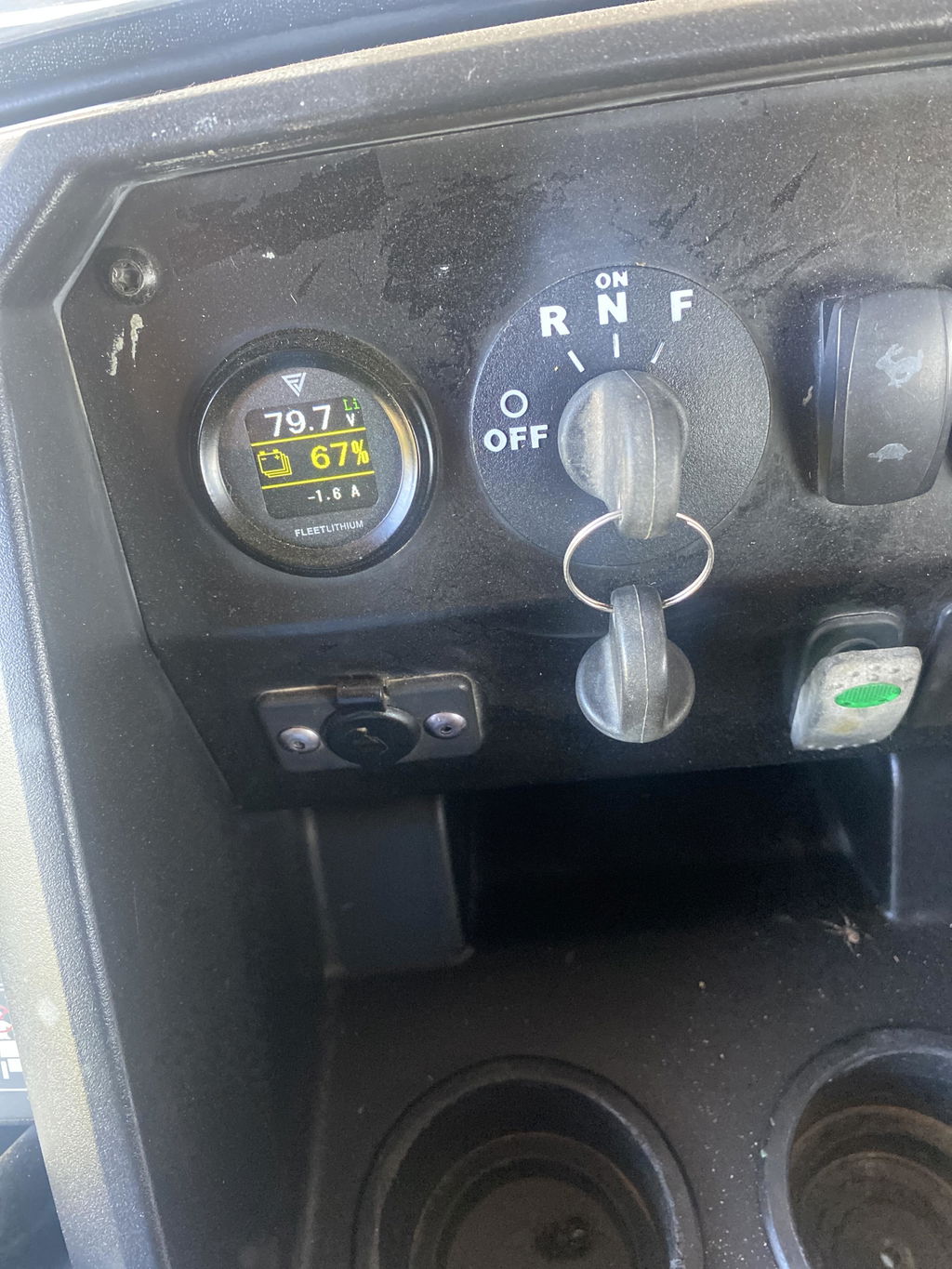

• 1 x Round State of Charge Meter: Provides accurate and up-to-date information on battery charge level, preventing over discharge.

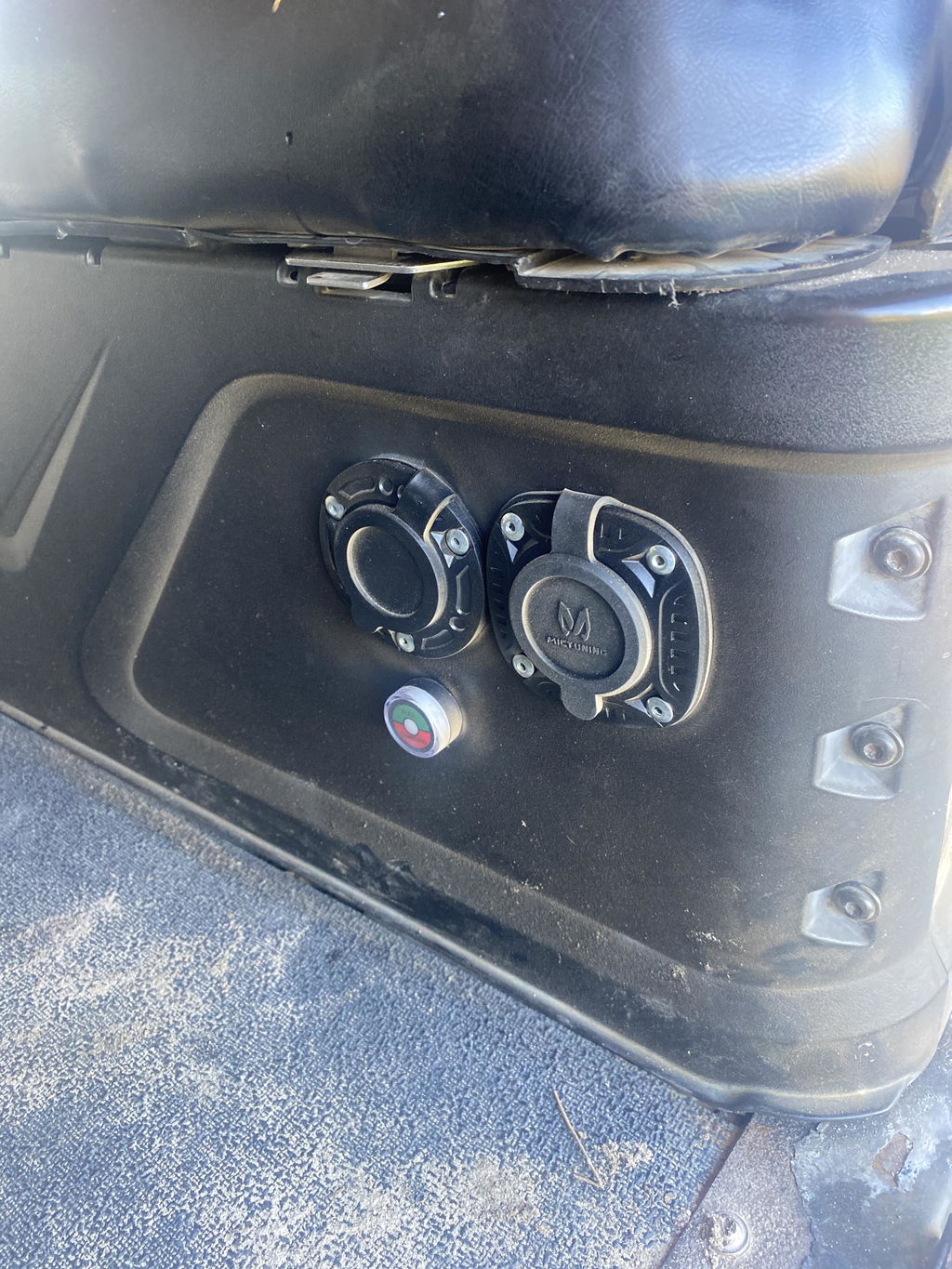

• 1 x Universal Charge Receptacle: A versatile receptacle for easy integration with various systems and charging setups.

Battery Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 76V
• Capacity: 105Ah
• Energy Storage: 7,980Wh
• Max Continuous Discharge Current: 250A
• Peak Discharge Current: 600A
• Charging Voltage: 76V
• Cycle Life: 3,000 to 5,000 cycles (80% Depth of Discharge)
• Weight: 147 lbs
• Dimensions: 20.51" x 12.24" x 10.94"

Charger Specifications

• Input Voltage: 110V-240V AC
• Output Voltage: 76V
• Charging Current: 10A
• Efficiency: 95%
• Charger Type: Automatic with built-in protections for safety and efficiency
• Dimensions: 9.5" x 6.0" x 4.5"

State of Charge Meter Specifications

• Display Type: Digital LCD
• Voltage Monitoring: 0-100V
• Current Monitoring: 0-150A
• Capacity Monitoring: Displays battery capacity as a percentage (0-100%)
• Dimensions: 2.0" x 3.5" x 0.5"

Safety Features

• Overcharge protection
• Over-discharge protection
• Short circuit protection
• Overcurrent protection
• Thermal protection
• Reverse polarity protection
• Low voltage disconnect (LVD)

Battery Management System (BMS) Features

• Active and passive cell balancing for optimal performance
• Comprehensive protection against overcharging, over-discharge, short circuits, and temperature fluctuations
• Real-time monitoring through Bluetooth or app for performance tracking
• Automatic shut-off in case of abnormal conditions
• Voltage, current, and temperature monitoring for enhanced reliability

Certifications

• UL 1642
• UL 1973
• CE
• RoHS
• UN38.3 (for shipping)

Warranty

• 5 years or 3,000 cycles (whichever comes first)

Why Choose the 76 Volt 105Ah Fleet Lithium Battery Bundle?

• Complete Solution: This bundle provides everything you need to power your high-demand systems, making it a complete energy solution.
• High Power & Efficiency: The 76V 105Ah battery is capable of powering large systems such as off-grid solar arrays, electric vehicles, and high-performance marine systems for extended periods.
• Long Lifespan: The LiFePO4 technology ensures up to 5,000 cycles at 80% depth of discharge, providing a much longer lifespan compared to traditional lead-acid batteries.
• Compact & Lightweight: Despite its high capacity, the 76V 105Ah battery is compact and lightweight, making it ideal for space-constrained applications like RVs, boats, and vehicles.
• Bluetooth Monitoring: The built-in Bluetooth module allows you to monitor the battery’s state of charge and performance from your smartphone, making battery management convenient and efficient.
• All-in-One Protection: The integrated BMS provides active balancing, voltage and current protection, and thermal safeguards to ensure long-lasting and safe operation in all conditions.
• Waterproof & Durable: IP67 rated for dust and water protection, the 76V 105Ah battery is designed to withstand harsh marine, outdoor, and off-grid environments.
• Fast Charging: The 76V 105Ah Fleet Lithium Battery charges rapidly, keeping your systems operational with minimal downtime.

Application Scenarios for the 76 Volt 105Ah Fleet Lithium Battery Bundle

• Off-Grid Solar Systems: Perfect for storing energy in solar-powered homes, cabins, or businesses in remote locations, ensuring reliable power when sunlight is unavailable.

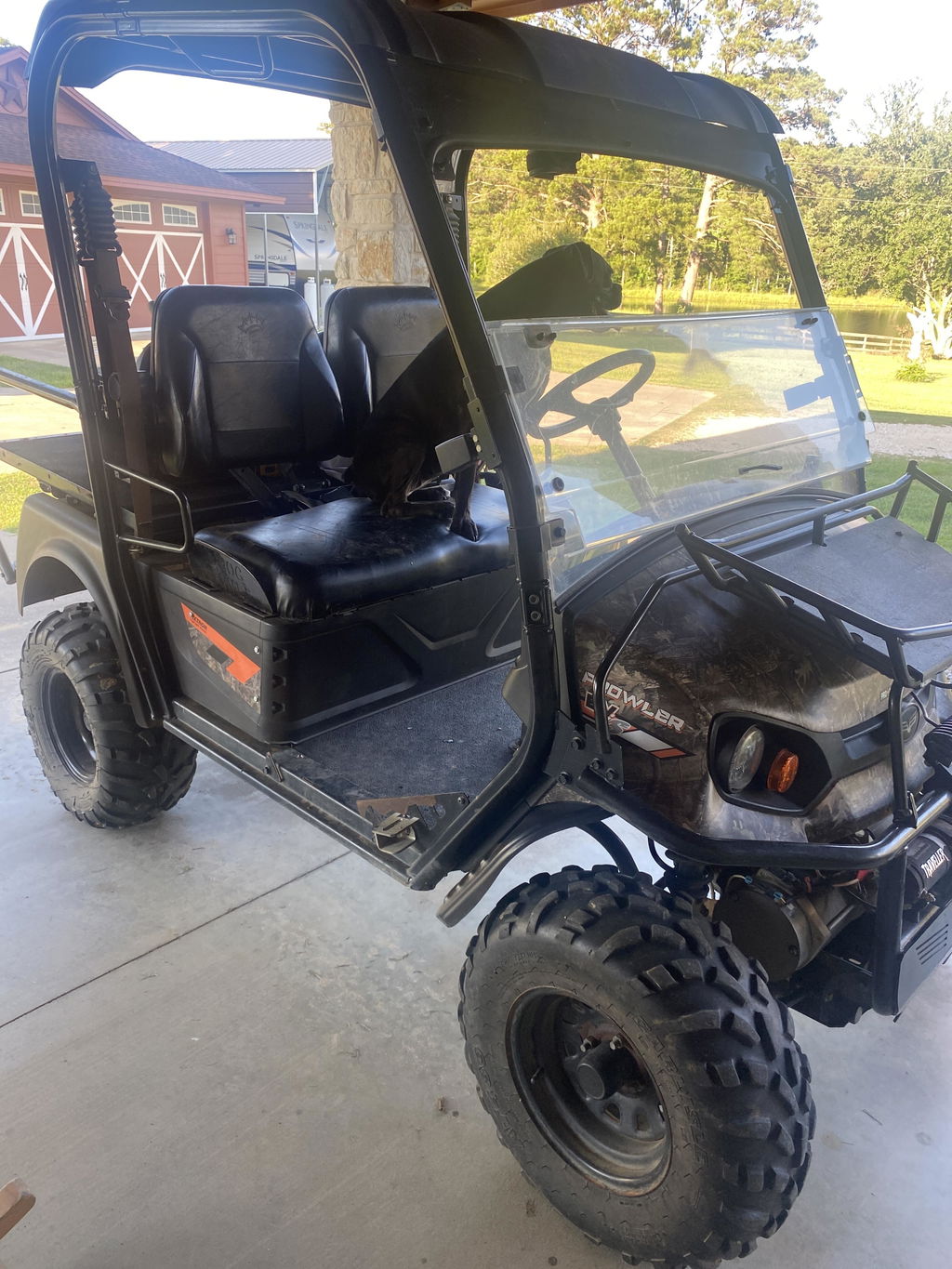

• Electric Vehicles (EVs): Suitable for powering large electric vehicles such as electric RVs, golf carts, and electric boats, providing high-efficiency solutions with extended lifespans.
• Marine Applications: Ideal for powering large boats, yachts, and marine systems with a high voltage output, ensuring long-term reliability on the water.
• RV Power Systems: Provides a reliable and efficient power source for RVs, powering everything from lights and appliances to high-demand systems like air conditioning and entertainment systems.
• Hybrid Energy Systems: Can be used in hybrid solar-wind or other renewable energy systems, acting as a backup power source for critical systems and ensuring energy efficiency.
