76 Volt 150 AH Fleet Lithium Battery Bundle

$4,89900 USD
Shipping calculated at checkout.

76 Volt - 150 AH - 11.4 kWh

Subscribe to our newsletter

Sign up for exclusive offers.

76 Volt 150Ah Fleet Lithium Battery Bundle

Overview

The 76 Volt 150Ah Fleet Lithium Battery Bundle is engineered for high-performance applications, offering a robust energy solution for electric vehicles, off-grid systems, and marine vessels. With a substantial capacity and high-voltage output, this bundle is built to meet the energy demands of power-hungry systems while maintaining efficiency and durability. Ideal for large-scale energy storage and heavy-duty use, this battery bundle ensures reliable power in both on-the-water and off-the-grid environments.

What’s Included in the Bundle

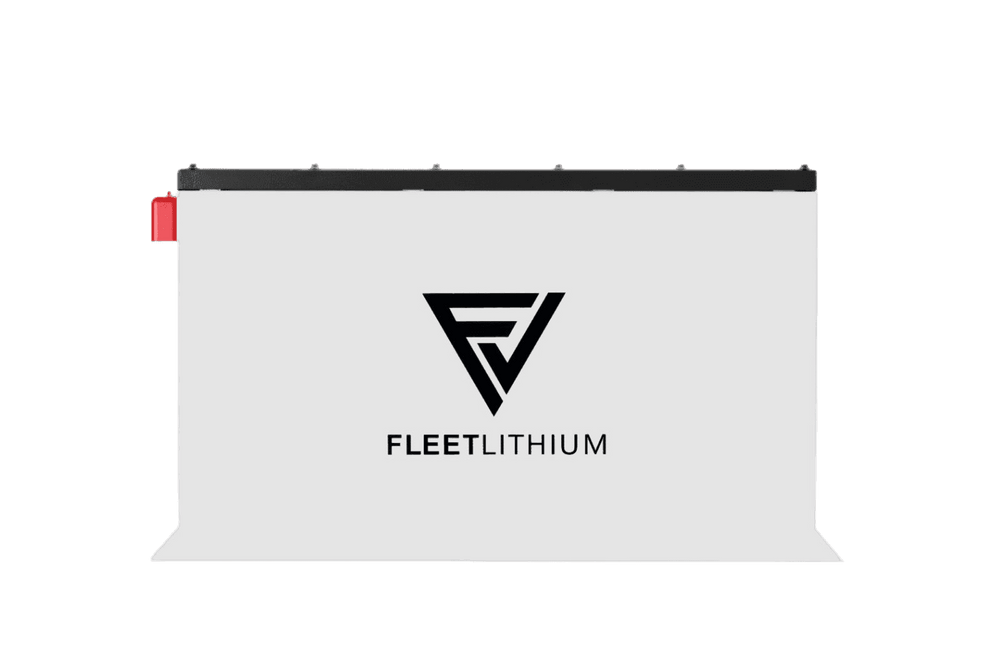

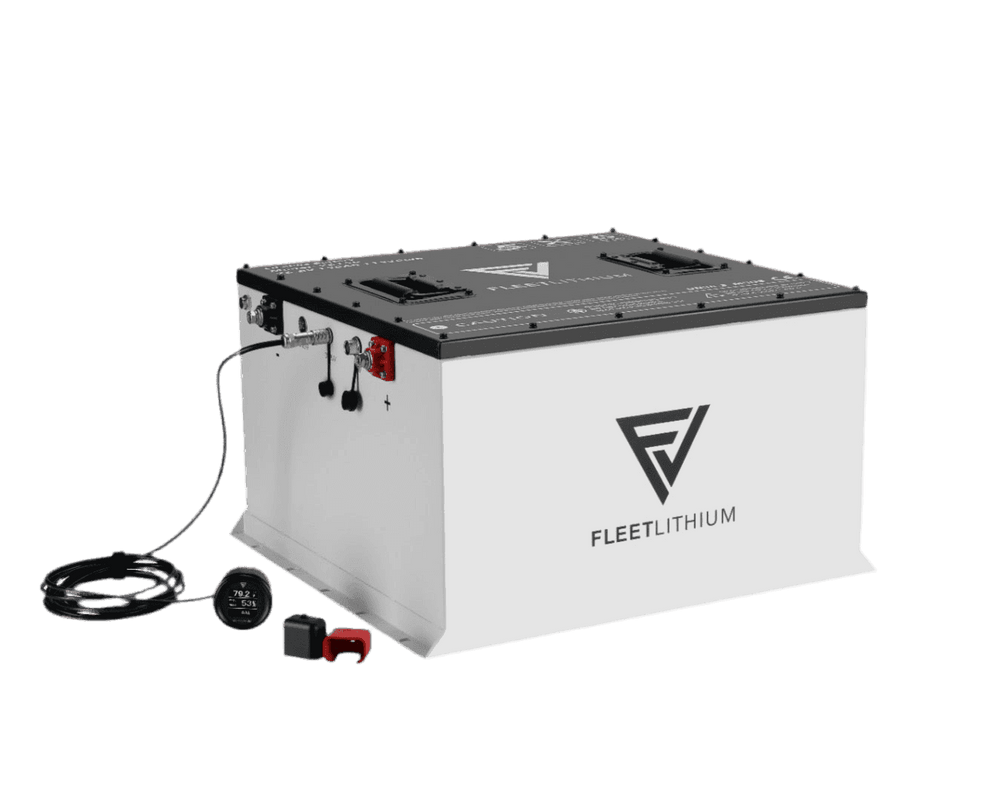

  • 1 x 76 Volt 150Ah Fleet Lithium Battery: High-capacity battery designed to meet the energy demands of large systems and high-power applications.

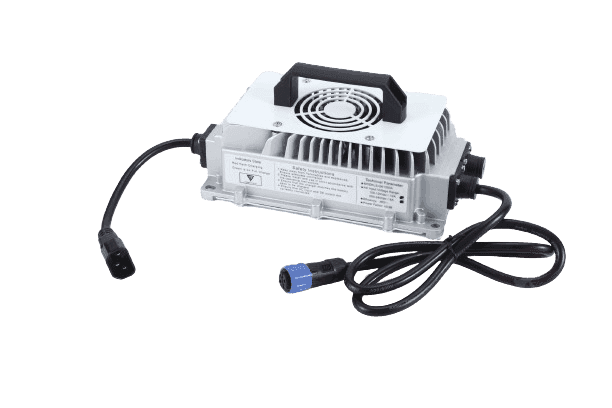

  • 1 x 76 Volt Lithium Battery Charger: Fast-charging solution designed specifically to recharge the 76V battery quickly and safely.
  • 1 x Bluetooth Module: Enables real-time performance monitoring and easy management of the battery’s state of charge via mobile devices.
  • 1 x Round State of Charge Meter: Displays the battery’s remaining charge as a percentage, preventing over-discharge and optimizing battery life.

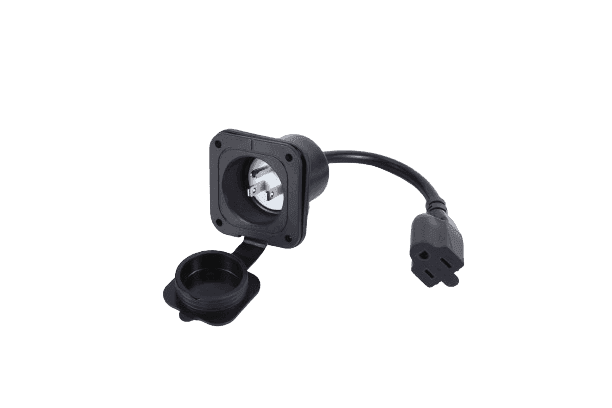

  • 1 x Universal Charge Receptacle: Versatile receptacle for easy connection with multiple systems and charging setups.

Battery Specifications

  • Battery Type: Lithium Iron Phosphate (LiFePO4)
  • Nominal Voltage: 76V
  • Capacity: 150Ah
  • Energy Storage: 11,400Wh
  • Max Continuous Discharge Current: 250A
  • Peak Discharge Current: 600A
  • Charging Voltage: 76V
  • Cycle Life: 3,000 to 5,000 cycles (80% Depth of Discharge)
  • Weight: 147 lbs
  • Dimensions: 20.51" x 12.24" x 10.94"

Charger Specifications

  • Input Voltage: 110V-240V AC
  • Output Voltage: 76V
  • Charging Current: 12A
  • Efficiency: 95%
  • Charger Type: Automatic with built-in protections for safety and efficiency
  • Dimensions: 10" x 6" x 4"

State of Charge Meter Specifications

  • Display Type: Digital LCD
  • Voltage Monitoring: 0-100V
  • Current Monitoring: 0-150A
  • Capacity Monitoring: Displays battery capacity as a percentage (0-100%)
  • Dimensions: 2.0" x 3.5" x 0.5"

Safety Features

  • Overcharge protection
  • Over-discharge protection
  • Short circuit protection
  • Overcurrent protection
  • Thermal protection
  • Reverse polarity protection
  • Low voltage disconnect (LVD)

Battery Management System (BMS) Features

  • Active and passive cell balancing for optimal performance
  • Comprehensive protection against overcharging, over-discharge, short circuits, and temperature fluctuations
  • Real-time monitoring through Bluetooth or app for performance tracking
  • Automatic shut-off in case of abnormal conditions
  • Voltage, current, and temperature monitoring for enhanced reliability

Certifications

  • UL 1642
  • UL 1973
  • CE
  • RoHS
  • UN38.3 (for shipping)

Warranty

  • 5 years or 3,000 cycles (whichever comes first)

Why Choose the 76 Volt 150Ah Fleet Lithium Battery Bundle?

  • Complete Solution: This bundle provides a comprehensive solution for high-demand applications, whether for off-grid solar, marine, or electric vehicle use.
  • High Power & Efficiency: The 76V 150Ah battery is capable of powering large systems such as off-grid solar arrays, electric vehicles, and high-performance marine systems with extended runtimes.
  • Long Lifespan: The LiFePO4 technology ensures up to 5,000 cycles at 80% depth of discharge, far outlasting traditional lead-acid batteries.
  • Compact & Lightweight: Despite its impressive capacity, the 76V 150Ah battery is relatively compact and lightweight, ideal for space-constrained installations in RVs, boats, or electric vehicles.
  • Bluetooth Monitoring: The built-in Bluetooth module allows you to easily monitor the battery’s state of charge and performance remotely via a smartphone, making battery management simple.
  • All-in-One Protection: The BMS offers active balancing, voltage and current protection, and thermal safeguards to ensure safe operation under any conditions.
  • Waterproof & Durable: With an IP67 rating, this battery is well-suited for harsh environments, including marine and outdoor conditions, ensuring reliability even in wet or damp conditions.
  • Fast Charging: The 76V 150Ah Fleet Lithium Battery charges quickly, allowing you to get back to full power with minimal downtime.

Application Scenarios for the 76 Volt 150Ah Fleet Lithium Battery Bundle

  • Off-Grid Solar Systems: Perfect for solar-powered homes, cabins, or businesses in remote areas, providing reliable power when sunlight is not available.
  • Electric Vehicles (EVs): Ideal for powering large electric vehicles such as RVs, golf carts, or electric boats, offering high-efficiency solutions with extended service life.
  • Marine Applications: The 76V 150Ah battery is perfect for powering large boats, yachts, and marine systems, delivering reliable performance in all marine environments.
  • RV Power Systems: Great for RVs, providing power for everything from lights and appliances to high-demand systems like air conditioning and entertainment systems.
  • Hybrid Energy Systems: Suitable for hybrid solar-wind or other renewable energy systems, ensuring a stable backup power source and optimal energy storage for critical systems.
