36V 150Ah Marine Trolling Motor Battery

36V 150Ah Marine Trolling Motor Battery

Overview

The 36V 150Ah Marine Trolling Motor Battery is designed for use in demanding marine environments, providing exceptional power and performance for trolling motors, ensuring you get the maximum runtime and reliability on the water. Ideal for fishing boats, pontoons, and other marine vessels, this battery offers long-lasting energy, faster charging, and superior performance compared to traditional lead-acid batteries. With a lightweight design and advanced battery management system (BMS), this lithium battery ensures consistent power to your trolling motor even in harsh conditions.

Battery Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Voltage: 36V
• Capacity: 150Ah
• Nominal Energy: 5,400Wh
• Cycle Life: 3,000 - 5,000 cycles at 80% Depth of Discharge (DoD)
• Max Discharge Current: 150A continuous, 200A peak
• Weight: 85-90 lbs (depending on the specific model)
• Dimensions: 20” x 10” x 8”

Safety Features

• Overcharge protection
• Over-discharge protection
• Short circuit protection
• Overcurrent protection
• Thermal protection
• Reverse polarity protection
• Low voltage disconnect (LVD)

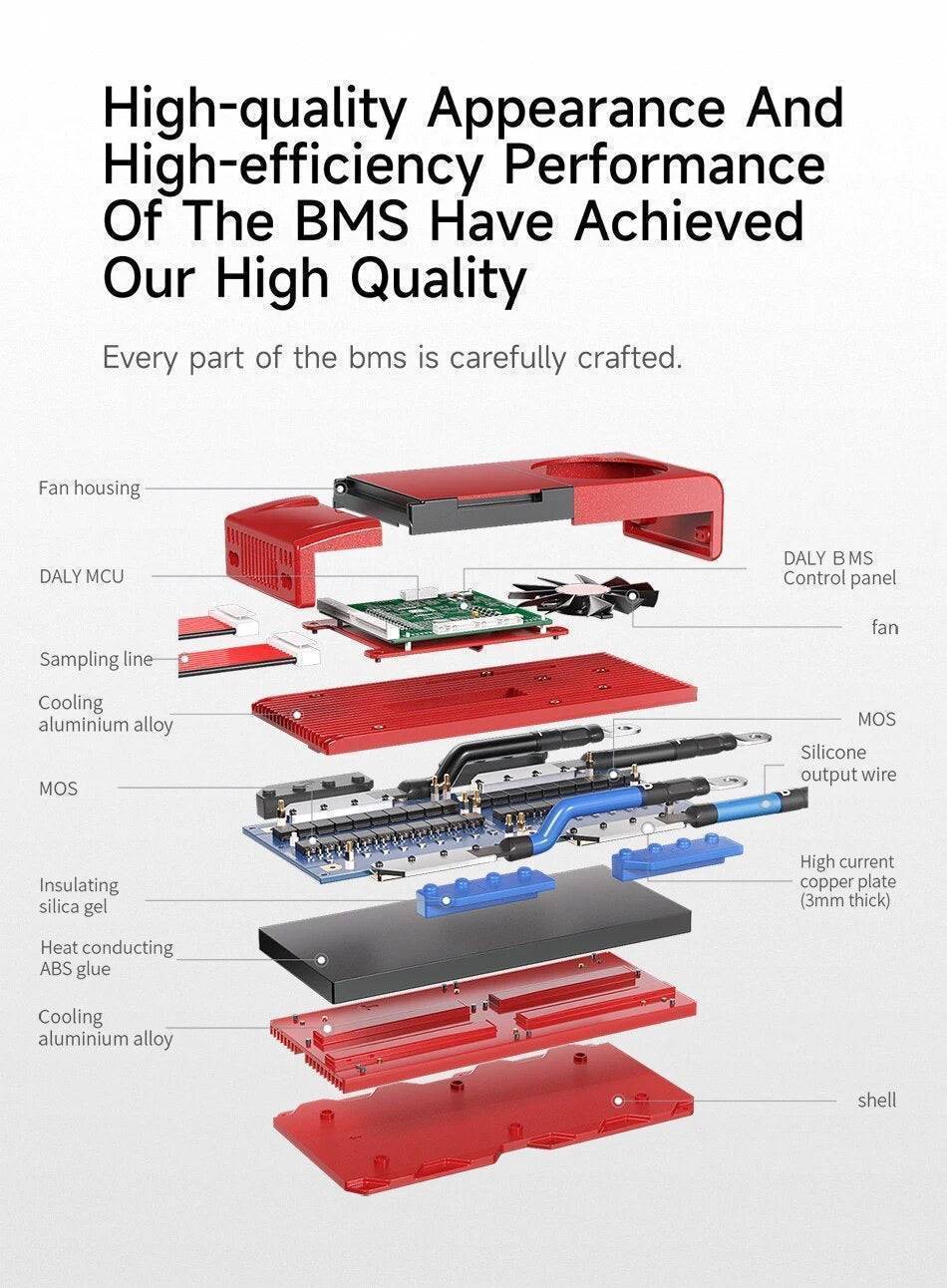

Battery Management System (BMS) Features

• Active and passive cell balancing for optimal performance

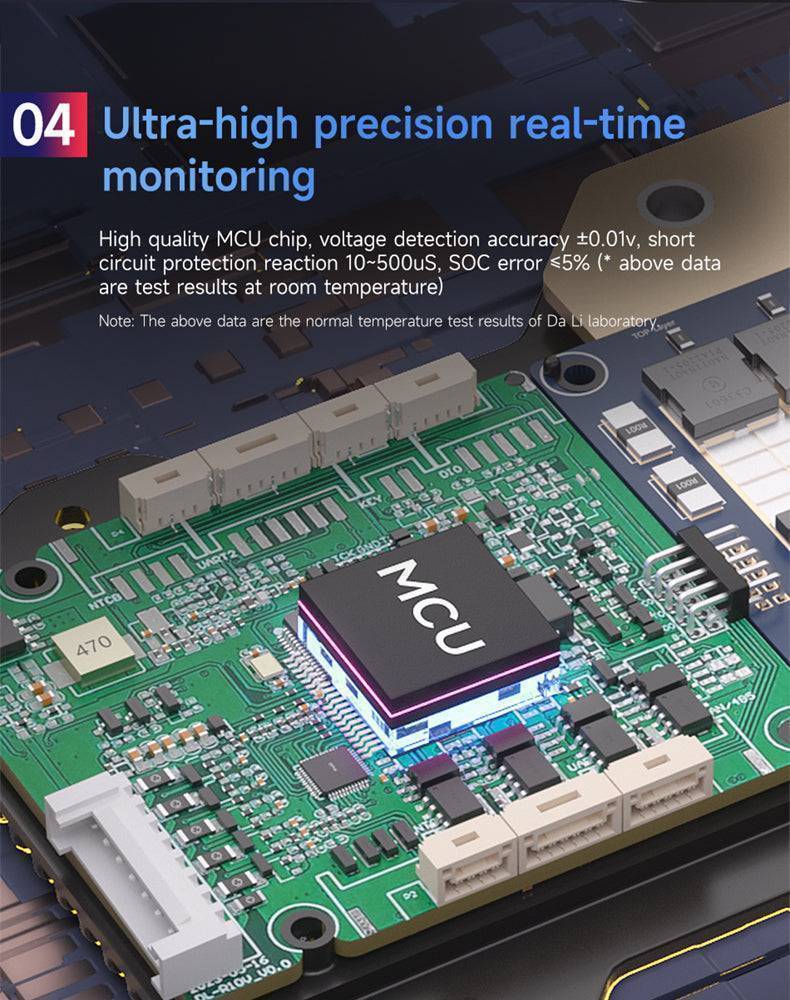

• Voltage, current, and temperature monitoring
• Real-time status monitoring via app or display
• Over-voltage, under-voltage, over-temperature, and over-current protection
• Low voltage disconnect (LVD) to prevent deep discharge
• Automatic shut-off in case of abnormal conditions

Certifications

• UL 1642
• UL 1973
• CE
• RoHS
• UN38.3 (for shipping)

Warranty

• 5 years or 3,000 cycles (whichever comes first)

Use Case

• Marine Trolling Motors: This battery is specifically designed for trolling motors, providing extended run times and superior performance. Whether you're fishing or cruising, the 36V 150Ah Marine Trolling Motor Battery ensures a smooth and consistent experience on the water.
• Fishing Boats: Perfect for fishing boats, the 36V 150Ah battery will power your trolling motor for long trips, offering a more reliable power source compared to traditional lead-acid batteries.
• Pontoon Boats: Ideal for pontoon boats, this lithium battery delivers long-lasting power to keep you on the water longer without the added weight and maintenance of lead-acid batteries.
• Small to Mid-Size Vessels: The 36V 150Ah lithium battery is also an excellent choice for small to mid-size marine vessels, providing the necessary power for navigation and onboard electronics.
• Hybrid Marine Applications: It can be used in hybrid systems, integrating solar or wind power, to ensure your boat is always ready for use without reliance on gasoline or diesel engines.

Why Choose the 36V 150Ah Marine Trolling Motor Battery?

• Extended Battery Life: With 3,000 to 5,000 charge cycles, the 36V 150Ah lithium battery outlasts traditional lead-acid batteries, reducing the need for frequent replacements and saving you money over time.
• Higher Capacity: This battery’s large capacity allows you to power your trolling motor and onboard electronics for extended periods, perfect for long fishing trips or leisurely cruises.
• Lightweight Design: The lithium construction makes this battery significantly lighter than traditional lead-acid batteries, reducing the overall weight of your boat and improving fuel efficiency.
• Faster Charging: Lithium batteries charge much faster than lead-acid batteries, ensuring your trolling motor is always ready for action without long waiting times for charging.
• Built-In Protection: Equipped with advanced safety features, including overcharge, over-discharge, and thermal protection, the 36V 150Ah battery ensures safe operation under even the harshest conditions.
• IP67 Waterproof Rating: The IP67 rating means the battery is fully protected against dust and can withstand submersion in water up to 1 meter for 30 minutes. This makes it an ideal choice for use in marine environments, where exposure to water is inevitable.
• Bluetooth Monitoring: This battery comes with Bluetooth connectivity, allowing you to monitor the charge, health, and status of your battery in real time using a mobile app or connected display.

Application Scenarios for the 36V 150Ah Marine Trolling Motor Battery

• Trolling Motors: This lithium battery is specifically designed for use with marine trolling motors, providing the high-capacity, long-lasting power needed for smooth and quiet operation on the water.
• Fishing Boats: Ideal for fishing boats, this battery ensures that you can stay on the water longer, powering your trolling motor and providing backup power for other essential onboard systems.
• Pontoon Boats: Perfect for pontoons, it offers a lightweight, high-performance energy source, reducing the overall weight and improving fuel economy without sacrificing runtime.
• Hybrid Marine Applications: This lithium battery can be integrated with solar or other renewable energy systems to power your boat, reducing reliance on fuel-powered generators or outboard motors.
• Small to Mid-Sized Vessels: Whether you’re cruising or fishing, this lithium battery delivers the necessary power for propulsion and onboard systems, all while reducing weight and improving efficiency.
