EZGO Shuttle 2+2 (2008-2012) 48V Lithium Battery Conversion Kit — Fleet Lithium
EZGO Shuttle 2+2 (2008-2012) 48V Lithium Battery Conversion Kit — Fleet Lithium - 51V 168Ahis backordered and will ship as soon as it is back in stock.
10-Year Warranty / 5,000+ Cycles
10-Year Warranty / 5,000+ Cycles
Built for the long haul. Every Promise-series battery is backed by a 10-year manufacturer's warranty and rated for 5,000+ cycles at 80% depth of discharge. View full warranty details.
Product Highlights
Product Highlights
EZGO Shuttle 2+2 (2008-2012) 48V Lithium Battery Conversion Kit — F...
Upgrade Your E-Z-GO Shuttle 2+2 to Fleet Lithium
A Shuttle 2+2 spends its day full of people and stopping constantly — the worst possible duty cycle for flooded batteries. Replacing the lead pack with one 51V Fleet Lithium pack keeps the cart at full speed on the last run of the day, takes hundreds of pounds off the chassis, and removes watering from the maintenance list entirely.
Choose Your Capacity
| Capacity | Range* | Best For |
|---|---|---|
| 51V 65Ah | Up to 27 mi | Stock carts only |
| 51V 105Ah | Up to 50 mi | Daily driving |
| 51V 168Ah | Up to 75 mi | All-day use |
| 51V 210Ah | Up to 90 mi | Max range, fleet use |
65Ah is for stock motors and controllers only. If your cart is lifted, loaded, or running an upgraded motor or controller, start at 105Ah.

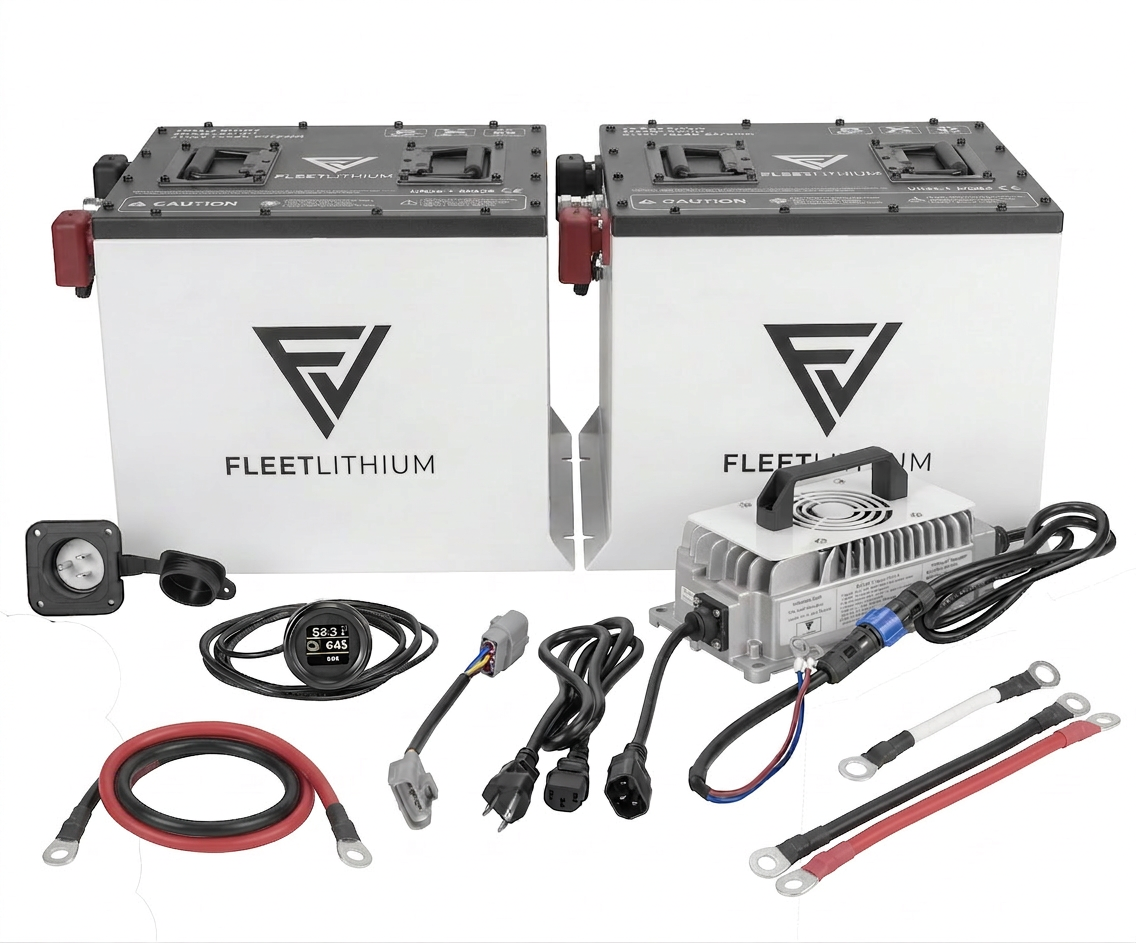

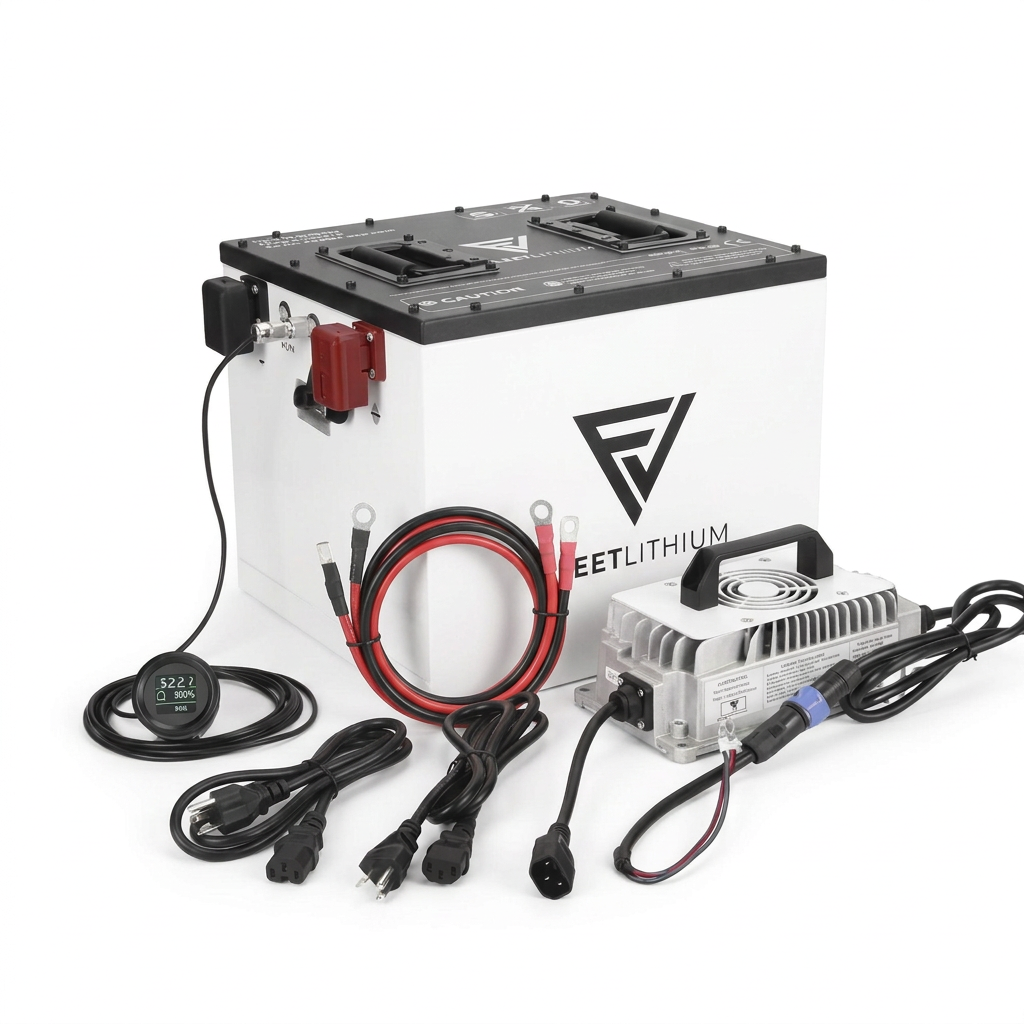

What's Included
- 51V NexGen Fleet Lithium LiFePO4 Battery (selected capacity)
- CH5618 — 58.4V 18A LiFePO4 Smart Charger
- BR4402 — Bracket Kit - E-Z-GO TXT / RXV
- AC0219 — AC Power Connector
- Cable Set
- Digital State-of-Charge Gauge
- All mounting hardware
Key Specs
- 300A NexGen BMS with 800A peak surge
- Patent-pending fire suppression system
- Built-in cold-weather heater — activates automatically below 32°F (standard, not an add-on)
- Bluetooth monitoring — voltage, temp and cycle count from your phone
- 10-year warranty — designed and assembled in the USA
Fitment Guide
| OEM Model | Years | Factory Battery Tray | Bracket Shipped |
|---|---|---|---|
| E-Z-GO Shuttle 2+2 | 2008–2012 | 6x 8V | BR4402 |
| E-Z-GO Shuttle 2+2 | 2008–2012 | 4x 12V | BR4402 |
Which Do You Have?
E-Z-GO built the Shuttle 2+2 on two different chassis in these years. Lift the seat: six 8V batteries means the TXT-based chassis, which is what this kit fits. Four 12V batteries means the RXV-based chassis and needs the RXV kit instead.
Will It Work With My Controller?
The TXT-based Shuttle 2+2 uses E-Z-GO's 48V SepEx DC drive. The 51V Fleet pack is a direct replacement — no controller work.
Frequently Asked Questions
Will this fit my Shuttle 2+2?
Yes, if it is the TXT-based chassis with six 8V batteries.
What if mine has four 12V batteries?
That is the RXV-based Shuttle 2+2. Use the RXV / Freedom RXV kit.
Does it fit gas Shuttle models?
No — electric only.
How long does installation take?
30–60 minutes with basic hand tools.
Does it work in cold weather?
Yes. The built-in heater activates automatically below 32°F — standard on every pack.
*Range estimates are maximums under ideal conditions (flat terrain, single rider, 12–15 mph, 70°F). Actual range varies with terrain, weight, speed, and temperature.
Electrical & Performance
- Factory Pack Voltage
Battery & BMS
- Battery Technology
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge , Advanced Battery Management System (BMS) , Internal Heating for Cold Temp Charging , Active Cell Balancing for Extended Life Cycle
- Safety Features
- Thermal Regulation (Heated Cells) , Low Voltage Disconnect (LVD) , Over Charge / Discharge Protection , Over Current Protection
- Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC) , Discharging: -4 to 149 ºF (-20 to 65 ºC) , Storage: 50 to 113 ºF (10 to 45 ºC)
Warranty & Compliance
- Certifications
- UL 1642 , UL 1973 , CE , RoHS , UN38.3 , IP67
- Standards
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Lithium Battery Conversion Kit
- SKU
- EZSTW-51168
- Shipping Weight
- 177.0 lb
