EZGO Express S6 (2018-2022) 72V Lithium Battery Conversion Kit — Fleet Lithium
EZGO Express S6 (2018-2022) 72V Lithium Battery Conversion Kit — Fleet Lithium - 76.8V 105Ahis backordered and will ship as soon as it is back in stock.
10-Year Warranty / 5,000+ Cycles
10-Year Warranty / 5,000+ Cycles
Built for the long haul. Every Promise-series battery is backed by a 10-year manufacturer's warranty and rated for 5,000+ cycles at 80% depth of discharge. View full warranty details.
Product Highlights
Product Highlights
EZGO Express S6 (2018-2022) 72V Lithium Battery Conversion Kit — Fl...

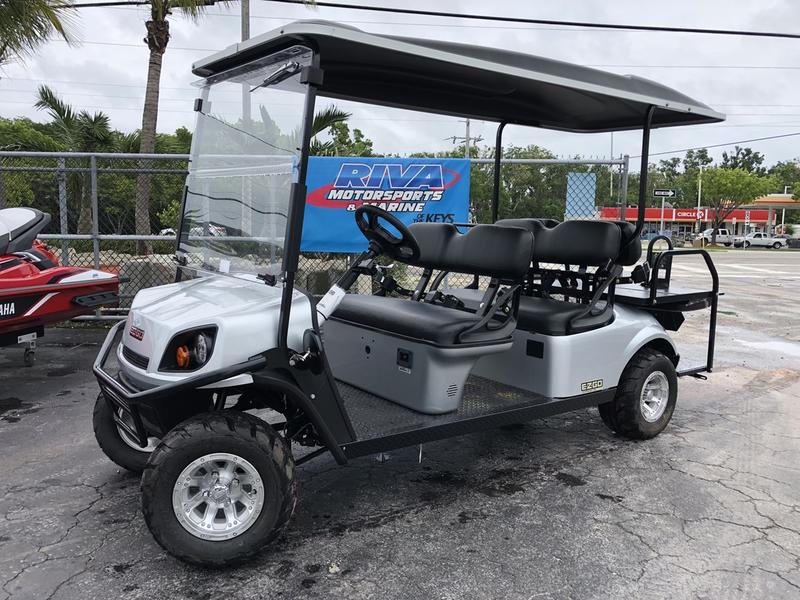

Upgrade Your E-Z-GO Express S6 to Fleet Lithium
Six passengers on 72V is the hardest job in the Express line, and the factory six 12V lead pack is the weak link — about 400 lb that fades exactly when you are fully loaded on a grade. The 76.8V Fleet Lithium pack holds voltage flat under that load, cuts roughly 250 lb, and carries a ten-year warranty.
Choose Your Capacity
| Capacity | Range* | Best For |
|---|---|---|
| 76.8V 105Ah | Up to 50 mi | Daily driving |
| 76.8V 168Ah | Up to 75 mi | All-day use |
What's Included
- 76.8V NexGen Fleet Lithium LiFePO4 Battery (selected capacity)
- CH8713 — 87.6V 13A LiFePO4 Smart Charger
- BR4480 — Bracket Kit - E-Z-GO Express S4 / S6
- AC0219 — AC Power Connector
- Cable Set
- Digital State-of-Charge Gauge
- All mounting hardware
Key Specs
- 300A NexGen BMS with 800A peak surge
- Patent-pending fire suppression system
- Built-in cold-weather heater — activates automatically below 32°F (standard, not an add-on)
- Bluetooth monitoring — voltage, temp and cycle count from your phone
- 10-year warranty — designed and assembled in the USA
Fitment Guide
| OEM Model | Years | Factory Battery Tray | Bracket Shipped |
|---|---|---|---|
| E-Z-GO Express S6 | 2018–2022 | 6x 12V | BR4480 |
Which Do You Have?
A 2018 Express S6 could be built as either 48V or 72V. Count your batteries — six 12V is the 72V cart this kit fits.
Will It Work With My Controller?
The 350A 72V AC drive runs the 76.8V Fleet pack without modification.
Frequently Asked Questions
Will this fit my Express S6?
Yes, for the 72V six 12V build, using the same BR4480 bracket as the rest of the S-series.
Mine is a 2018 — how do I tell 48V from 72V?
Count the batteries. Six 12V is 72V; eight 6V is 48V.
Does it fit a factory ELiTE lithium S6?
No.
How long does installation take?
30–60 minutes with basic hand tools.
Does it work in cold weather?
Yes. The built-in heater activates automatically below 32°F — standard on every pack.
*Range estimates are maximums under ideal conditions (flat terrain, single rider, 12–15 mph, 70°F). Actual range varies with terrain, weight, speed, and temperature.
Quick answer: the EZGO Express S6 (2018-2022) 72V Lithium Battery Conversion Kit — Fleet Lithium from Fleet Lithium has nominal voltage 76.8V, capacity 105 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), chemistry Lithium Iron Phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Factory Pack Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Chemistry
- Battery Technology
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge , Advanced Battery Management System (BMS) , Internal Heating for Cold Temp Charging , Active Cell Balancing for Extended Life Cycle
- Safety Features
- Thermal Regulation (Heated Cells) , Low Voltage Disconnect (LVD) , Over Charge / Discharge Protection , Over Current Protection
- Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC) , Discharging: -4 to 149 ºF (-20 to 65 ºC) , Storage: 50 to 113 ºF (10 to 45 ºC)
Dimensions & Weight
- Dimensions (L x W x H)
Fitment & Compatibility
- Make
- Model
- Model Year
- 2018 , 2019 , 2020 , 2021 , 2022
- Model Number
- Motor Controller
Warranty & Compliance
- Warranty
- Certifications
- UL 1642 , UL 1973 , CE , RoHS , UN38.3 , IP67
- Standards
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Lithium Battery Conversion Kit
- SKU
- EZEXH-76105
- Shipping Weight
- 147.0 lb
