EZGO Express S6 (2012-2018) 48V Lithium Battery Conversion Kit — Fleet Lithium
EZGO Express S6 (2012-2018) 48V Lithium Battery Conversion Kit — Fleet Lithium - 51V 168Ahis backordered and will ship as soon as it is back in stock.
10-Year Warranty / 5,000+ Cycles
10-Year Warranty / 5,000+ Cycles
Built for the long haul. Every Promise-series battery is backed by a 10-year manufacturer's warranty and rated for 5,000+ cycles at 80% depth of discharge. View full warranty details.
Product Highlights
Product Highlights
EZGO Express S6 (2012-2018) 48V Lithium Battery Conversion Kit — Fl...
Upgrade Your E-Z-GO Express S6 to Fleet Lithium
Replace the eight 6V lead-acid batteries in your 48V E-Z-GO Express S6 with a single 51V LiFePO4 pack from Fleet Lithium. Complete conversion kit — battery, charger, BR4480 bracket kit, cables and hardware included. Half the weight, twice the range, and no watering, ever.
Choose Your Capacity
| Capacity | Range | Best For |
|---|---|---|
| 51V 65Ah | Up to 27 mi | Stock carts only |
| 51V 105Ah | Up to 50 mi | Daily driving, shuttling |
| 51V 168Ah | Up to 75 mi | All-day use, six passengers |
| 51V 210Ah | Up to 90 mi | Max range, fleet use |
65Ah is for stock motors and controllers only. A loaded six-passenger S6 should start at 105Ah, and 168Ah or higher is the right call for resorts and shuttle routes.

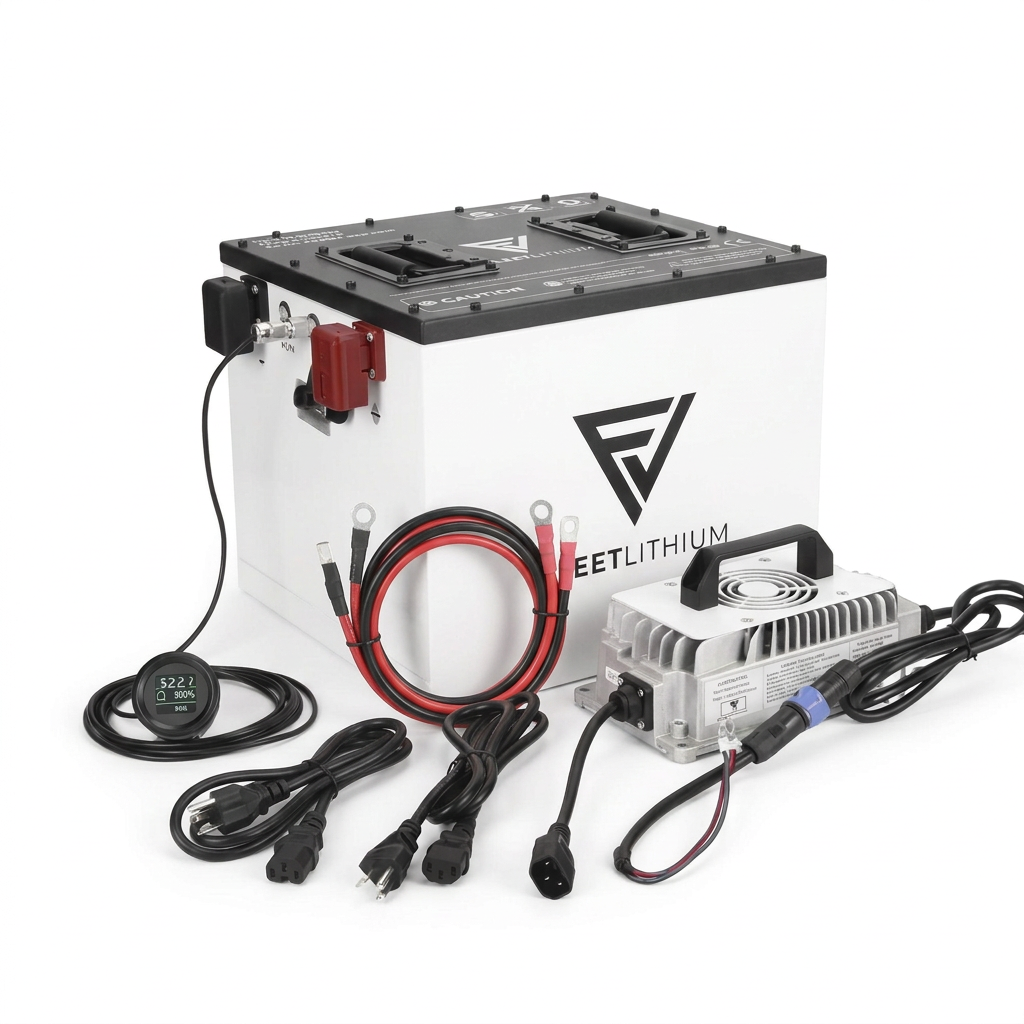

What's Included
- 51V NexGen Fleet Lithium LiFePO4 Battery (selected capacity)
- CH5618 — 58.4V 18A LiFePO4 Smart Charger
- BR4480 — Bracket Kit for E-Z-GO Express S4 / S6
- AC0219 — AC Power Connector
- CB0917 — Cable Set (35.4")
- Digital State-of-Charge Gauge
- All mounting hardware
Key Specs
- 300A NexGen BMS with 800A peak surge
- Patent-pending fire suppression system
- Built-in cold-weather heater — activates automatically below 32°F (standard, not an add-on)
- Bluetooth monitoring — voltage, temp, cycle count from your phone
- 10-year warranty — designed and assembled in the USA
Fitment Guide
| OEM Model | Years | Factory Pack | Bracket Shipped |
|---|---|---|---|
| E-Z-GO Express S6 | 2012–2018 | 48V, eight 6V lead-acid | BR4480 |
E-Z-GO introduced a 72V AC Express powertrain in 2018 and a factory ELiTE lithium version after that. If your S6 is a 2018 model, open the seat and confirm you have eight 6V lead-acid batteries on a 48V system before ordering — a 72V or factory-lithium S6 is not covered by this kit.
Controller Compatibility
The 48V Express S6 uses an E-Z-GO / Curtis 400A PDS/SepEx DC controller. The Fleet Lithium 51V pack is a direct match — no reprogramming, no controller upgrade, and no wiring changes. Aftermarket controllers should be verified separately.
Will this fit my Express S6?
Yes, on any 48V eight-6V Express S6 from 2012 through 2018. The BR4480 bracket kit mounts to the factory tray, so no drilling or vehicle modification is expected.
Does it fit a 72V Express S6?
No. The 2018-and-later 72V AC powertrain and the factory ELiTE lithium models use a different architecture and are not covered by this kit.
How long does installation take?
30–60 minutes with basic hand tools.
Does it work in cold weather?
Yes. The built-in heater activates automatically below 32°F — standard on every pack.
*Range estimates are maximums under ideal conditions (flat terrain, single rider, 12–15 mph, 70°F). Actual range varies with terrain, weight, speed, and temperature.
Quick answer: the EZGO Express S6 (2012-2018) 48V Lithium Battery Conversion Kit — Fleet Lithium from Fleet Lithium has nominal voltage 51.2V, capacity 105 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), chemistry Lithium Iron Phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Factory Pack Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Chemistry
- Battery Technology
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge , Advanced Battery Management System (BMS) , Internal Heating for Cold Temp Charging , Active Cell Balancing for Extended Life Cycle
- Safety Features
- Thermal Regulation (Heated Cells) , Low Voltage Disconnect (LVD) , Over Charge / Discharge Protection , Over Current Protection
- Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC) , Discharging: -4 to 149 ºF (-20 to 65 ºC) , Storage: 50 to 113 ºF (10 to 45 ºC)
Dimensions & Weight
- Dimensions (L x W x H)
Fitment & Compatibility
- Make
- Model
- Model Year
- 2012 , 2013 , 2014 , 2015 , 2016 , 2017 , 2018
- Model Number
- Motor Controller
Warranty & Compliance
- Warranty
- Certifications
- UL 1642 , UL 1973 , CE , RoHS , UN38.3 , IP67
- Standards
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Conversion Kit
- SKU
- EZEXF-51168
- Shipping Weight
- 177.0 lb
