EZGO Clays Car (2004-2011) 36V Lithium Battery Conversion Kit — Fleet Lithium
EZGO Clays Car (2004-2011) 36V Lithium Battery Conversion Kit — Fleet Lithium - 38.4V 105Ahis backordered and will ship as soon as it is back in stock.
10-Year Warranty / 5,000+ Cycles
10-Year Warranty / 5,000+ Cycles
Built for the long haul. Every Promise-series battery is backed by a 10-year manufacturer's warranty and rated for 5,000+ cycles at 80% depth of discharge. View full warranty details.
Product Highlights
Product Highlights
EZGO Clays Car (2004-2011) 36V Lithium Battery Conversion Kit — Fle...
Upgrade Your E-Z-GO Clays Car to Fleet Lithium
The Clays Car spends its life idling between stations and then hauling shooters and gear across soft ground — exactly the duty cycle that kills flooded batteries early. A 38V Fleet Lithium pack delivers the same usable power on the last hole as the first, cuts about 180 lb from the chassis, and eliminates watering, terminal cleaning, and acid spills in the bed.
Choose Your Capacity
| Capacity | Range* | Best For |
|---|---|---|
| 38.4V 105Ah | Up to 50 mi | Daily driving |
What's Included

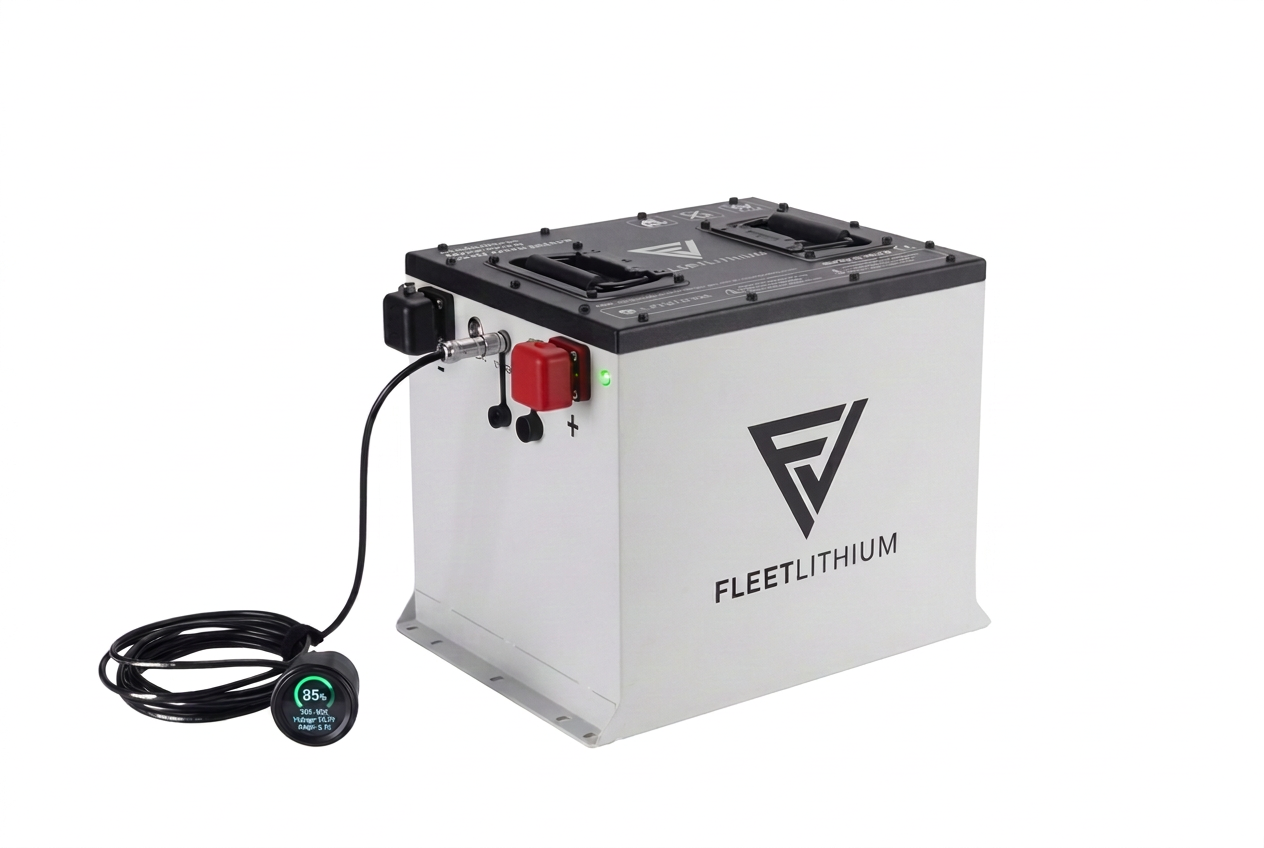

- 38.4V NexGen Fleet Lithium LiFePO4 Battery (selected capacity)
- FL-36C — 43.8V LiFePO4 Smart Charger
- Vehicle-specific mounting bracket kit — matched to your cart's factory battery tray
- AC0219 — AC Power Connector
- Cable Set
- Digital State-of-Charge Gauge
- All mounting hardware
Key Specs
- 300A NexGen BMS with 800A peak surge
- Patent-pending fire suppression system
- Built-in cold-weather heater — activates automatically below 32°F (standard, not an add-on)
- Bluetooth monitoring — voltage, temp and cycle count from your phone
- 10-year warranty — designed and assembled in the USA
Fitment Guide
| OEM Model | Years | Factory Battery Tray | Bracket Shipped |
|---|---|---|---|
| E-Z-GO Clays Car | 2004–2011 | 6x 6V | Matched to your tray |
Which Do You Have?
This kit is for the factory 36V car running six 6V batteries. If your car has been converted to 48V, order the 48V kit instead.
Will It Work With My Controller?
Clays Cars from this era use E-Z-GO's PDS-generation 36V DC drive. The 38V Fleet pack matches the factory system voltage, so the controller and motor stay exactly as they are. Check the controller label under the seat before ordering if the car has been worked on.
Frequently Asked Questions
Will this fit my Clays Car?
Yes, for the factory 36V six 6V configuration.
Does it fit a 48V-converted car?
No. A converted car needs the matching 48V kit and a 48V charger.
Do I need a new charger?
No — the 43.8V lithium smart charger is included in the kit.
How long does installation take?
30–60 minutes with basic hand tools.
Does it work in cold weather?
Yes. The built-in heater activates automatically below 32°F — standard on every pack.
*Range estimates are maximums under ideal conditions (flat terrain, single rider, 12–15 mph, 70°F). Actual range varies with terrain, weight, speed, and temperature.
Quick answer: the EZGO Clays Car (2004-2011) 36V Lithium Battery Conversion Kit — Fleet Lithium from Fleet Lithium has nominal voltage 38.4V, capacity 105 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), chemistry Lithium Iron Phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Factory Pack Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Chemistry
- Battery Technology
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge , Advanced Battery Management System (BMS) , Internal Heating for Cold Temp Charging , Active Cell Balancing for Extended Life Cycle
- Safety Features
- Thermal Regulation (Heated Cells) , Low Voltage Disconnect (LVD) , Over Charge / Discharge Protection , Over Current Protection
- Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC) , Discharging: -4 to 149 ºF (-20 to 65 ºC) , Storage: 50 to 113 ºF (10 to 45 ºC)
Dimensions & Weight
- Dimensions (L x W x H)
Fitment & Compatibility
- Make
- Model
- Model Year
- 2004 , 2005 , 2006 , 2007 , 2008 , 2009 , 2010 , 2011
- Model Number
- Motor Controller
Warranty & Compliance
- Warranty
- Certifications
- UL 1642 , UL 1973 , CE , RoHS , UN38.3 , IP67
- Standards
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Lithium Battery Conversion Kit
- SKU
- EZCLY-38105
- Shipping Weight
- 118.0 lb
