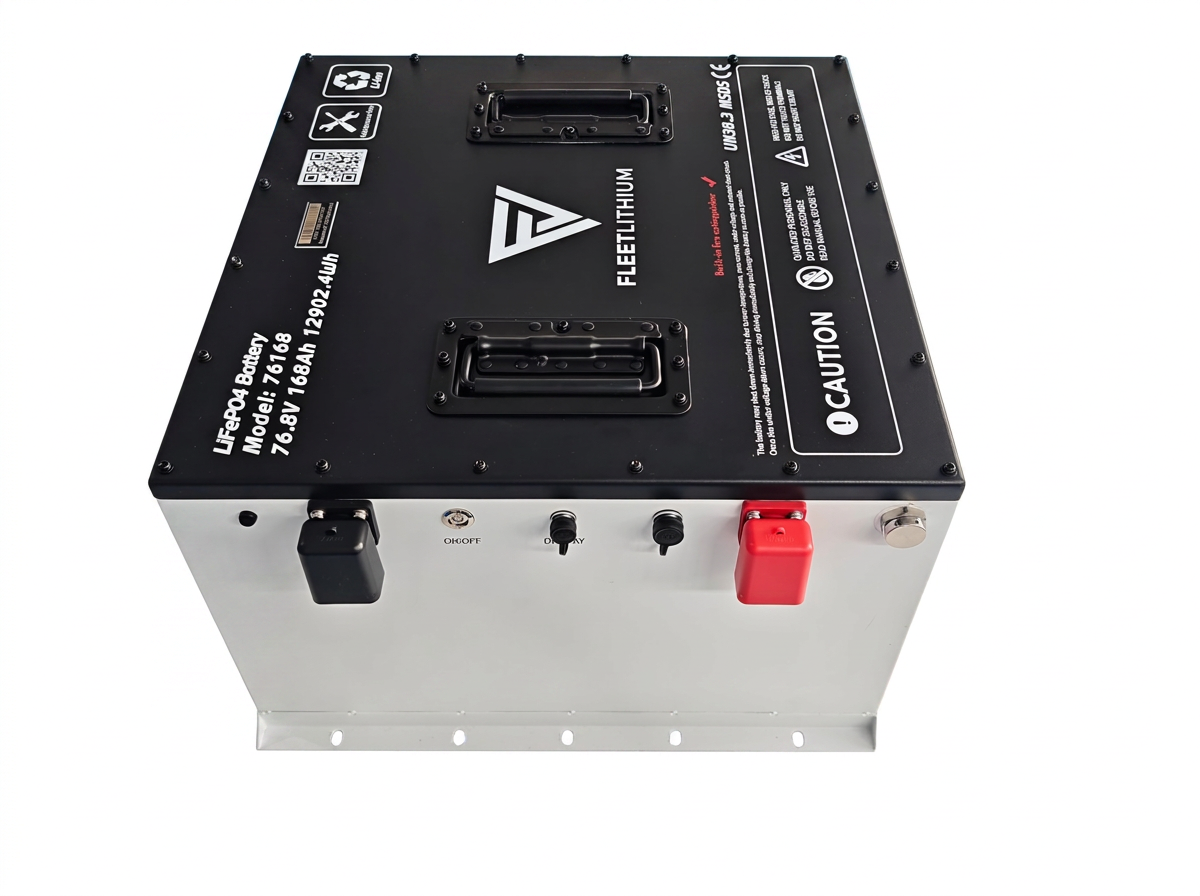

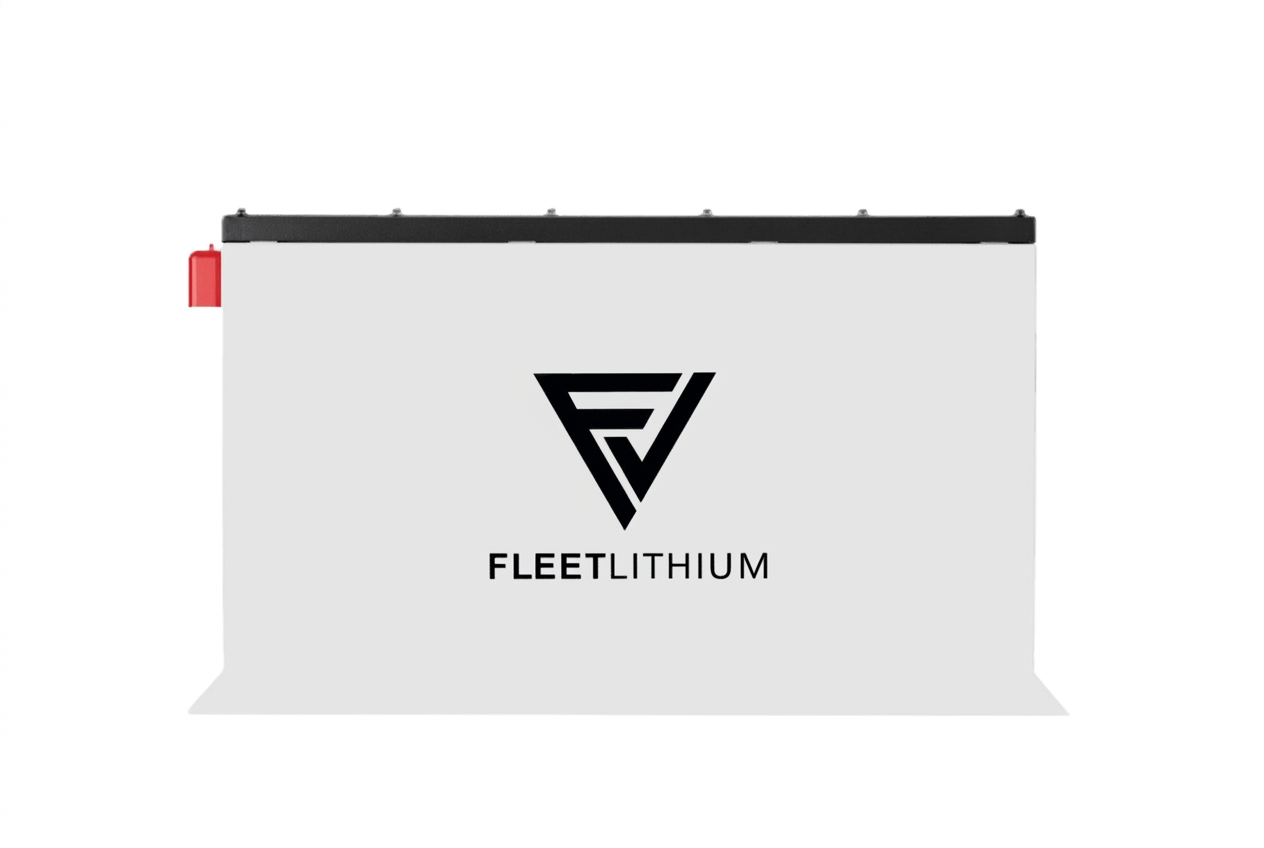

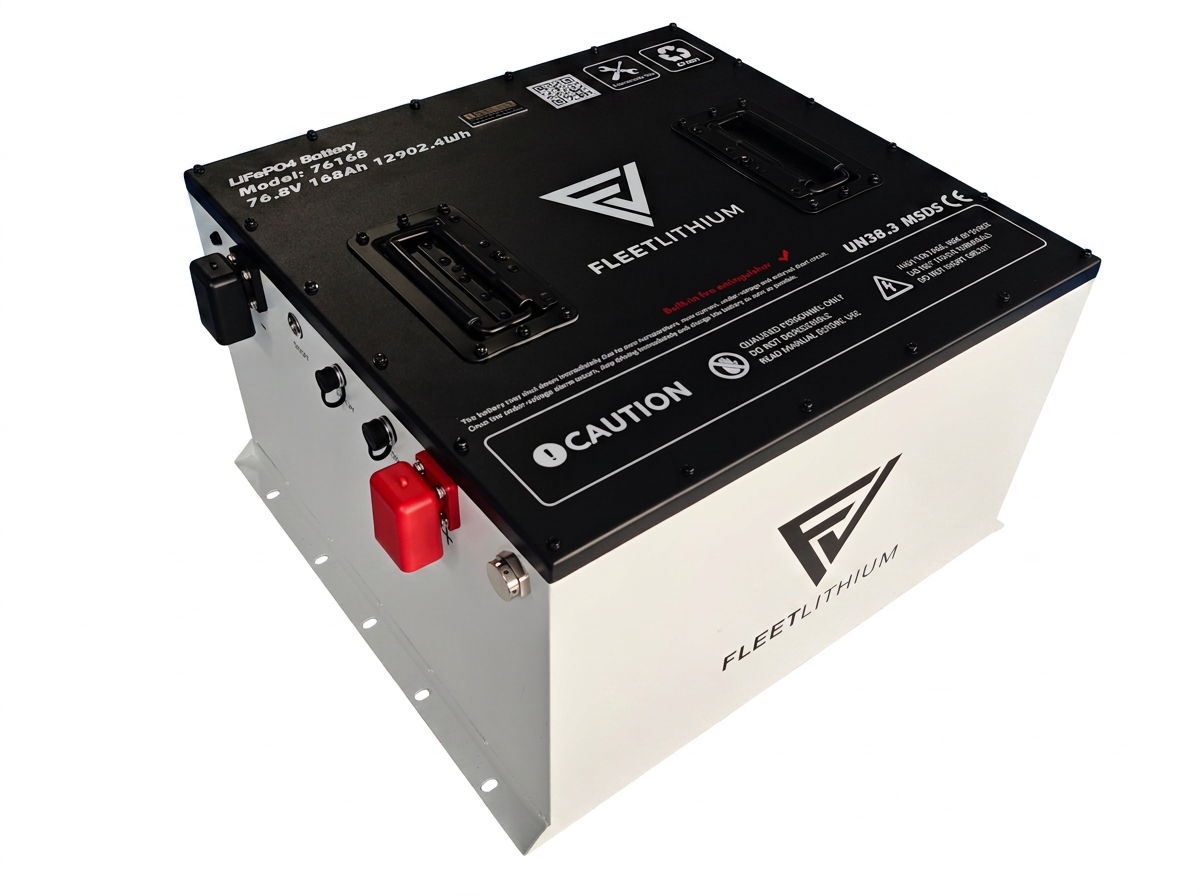

76.8V 168Ah Fleet Lithium Battery — NexGen BMS
76.8V 168Ah Fleet Lithium Battery — NexGen BMSis backordered and will ship as soon as it is back in stock.
10-Year Warranty / 5,000+ Cycles
10-Year Warranty / 5,000+ Cycles
Built for the long haul. Every Promise-series battery is backed by a 10-year manufacturer's warranty and rated for 5,000+ cycles at 80% depth of discharge. View full warranty details.
Product Highlights
Product Highlights

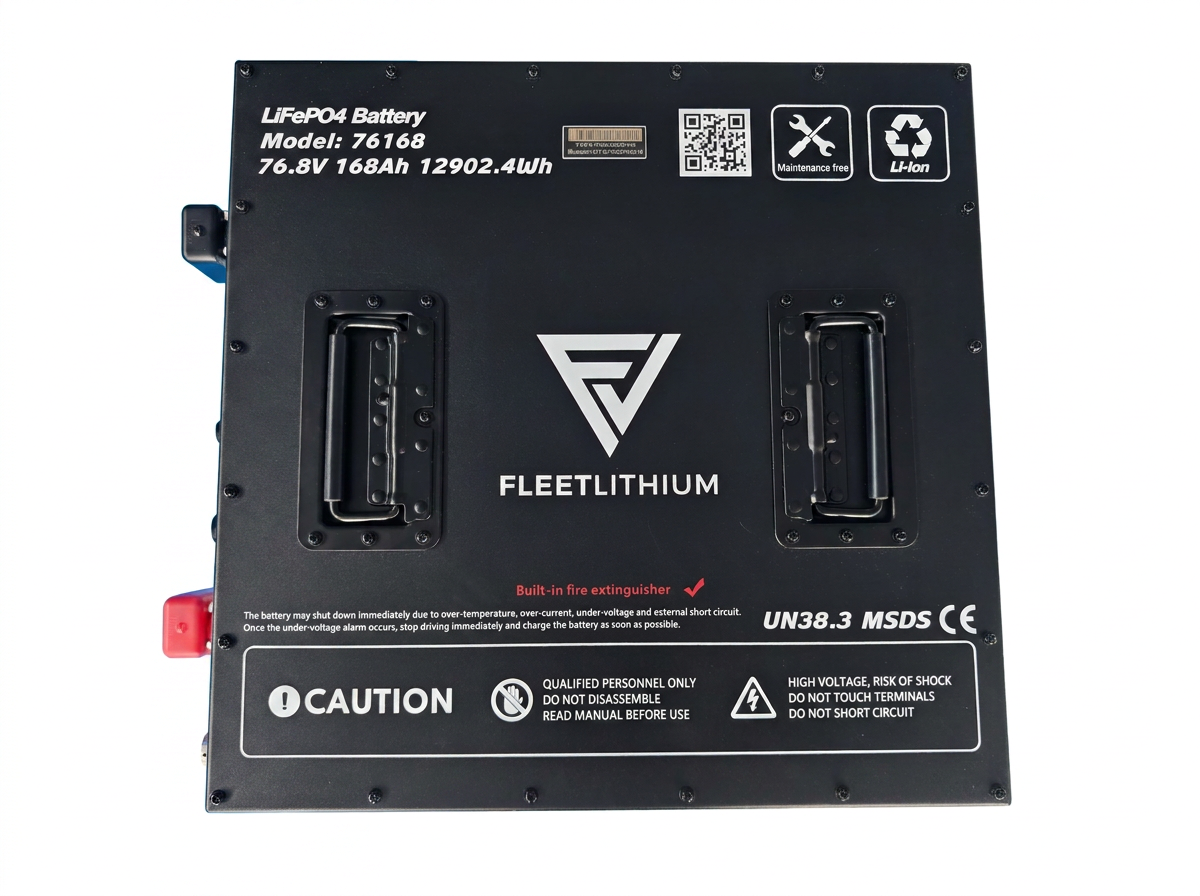

76.8V 168Ah Fleet Lithium Battery — NexGen BMS
76.8V 168Ah Fleet Lithium Battery — NexGen BMS
Maximum range, maximum torque, zero maintenance. 12,902Wh of fade-free energy for high-amperage 72V/76.8V vehicles, marine, and off-grid systems. Monitor state of charge, voltage, and cycle count via Bluetooth. Patent-pending fire suppression and a 300A NexGen BMS handle continuous high-draw applications without breaking a sweat.
What This Upgrade Fixes
- Eliminates voltage sag and sluggish performance common in aging lead-acid setups
- Cures range anxiety with consistent, fade-free power down to the last drop of capacity
- Removes hundreds of pounds of dead weight, improving acceleration, handling, and braking
- Ends the hassle of terminal corrosion, acid leaks, and seasonal battery watering
What's Included
1× 76.8V 168Ah Fleet Lithium Battery. Standalone bare battery unit. An 87.6V lithium charger, voltage reducer, custom wiring, and mounting brackets are not included — see our Bundle and Conversion Kit listings for complete drop-in packages.
Compatibility

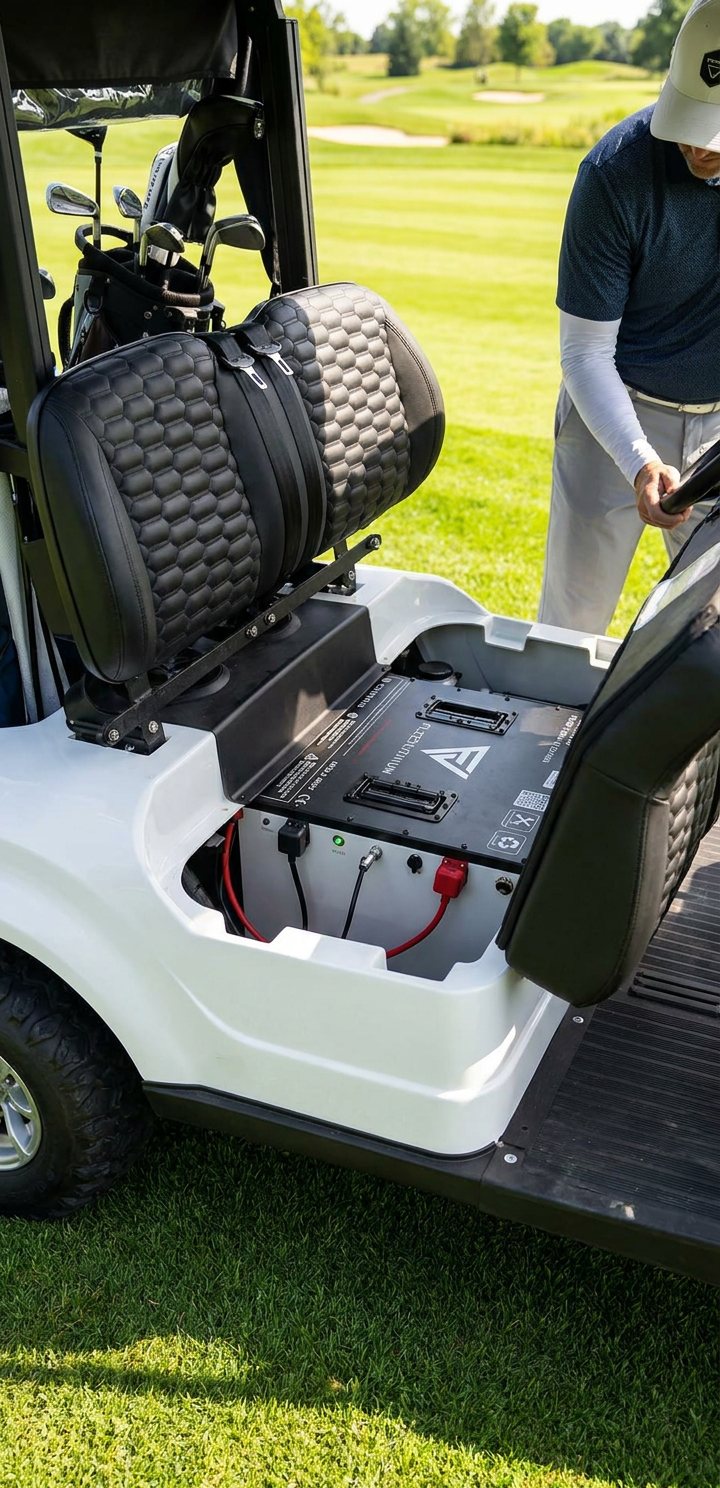

Universal 76.8V power unit optimized for high-draw environments. Drops directly into custom 72V or 76.8V electrical systems. Built specifically for high-amperage 72V vehicles like Textron Prowler EV, Cushman Hauler PRO/PRO-X, and custom builds requiring 300A+ continuous draw, plus off-grid solar banks and deep-cycle marine.
Key Specs
- Chemistry: LiFePO4
- Nominal Voltage: 76.8V
- Capacity: 168Ah (12,902 Wh / 12.90 kWh)
- Cell Configuration: 24S1P
- Working Voltage: 64.8V – 87.6V
- Charging Voltage: 87.6V
- BMS Voltage Cutoff: 64.8V
- Recommended Low Voltage Disconnect: 73.5V
- 300A NexGen BMS with 800A peak surge
- Cycle Life: 5,000+ cycles at 80% DoD
- Weight: ~216 lbs (98 kg)
- Dimensions: 19.72" × 17.83" × 11.22"
- Enclosure: Cold rolled steel, IP65
- Operating Temp (Discharge): -20°C to 55°C (-4°F to 131°F)
- Operating Temp (Charge): 0°C to 55°C (32°F to 131°F) — heater activates below 32°F
- Communication: Bluetooth, GPS, RS485, UART, CAN
Frequently Asked Questions
Does this battery include a charger?
No — this listing is the bare battery only. You'll need a matched 87.6V LiFePO4 charger to run it.
- Best value: Grab the 76.8V 168Ah Fleet Lithium Bundle — battery + CH8713 87.6V smart charger + cable set + voltage reducer + state-of-charge gauge. Everything for a complete drop-in.
- Charger only: Add the CH8713 87.6V Smart Charger alongside this battery.
Will this work in severe cold climates?
Yes. The NexGen BMS automatically activates internal heating below 32°F so the pack charges safely year-round.
How long will this battery actually last?
Engineered for over a decade of reliable performance and backed by our 10-year warranty.
What vehicles is this designed for?
Built for high-amperage 72V vehicles — Textron Prowler EV, Cushman Hauler PRO/PRO-X, lifted custom builds, and any application requiring 300A+ continuous draw with maximum range.
Can I integrate this with a sophisticated motor controller?
Yes. The integrated BMS provides CANBUS and RS485 ports for advanced motor controllers and telemetry systems.
Is there a vehicle-specific kit with brackets?

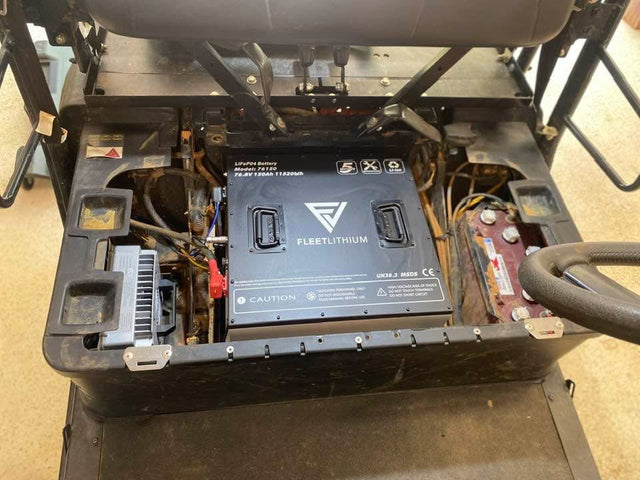

Yes. If you're converting a specific 72V vehicle, our 72V Conversion Kits include this exact battery plus a model-specific bracket, charger, voltage reducer, and all wiring — no fabrication required.
Quick answer: the 76.8V 168Ah Fleet Lithium Battery — NexGen BMS from Fleet Lithium has nominal voltage 76.8V, capacity 168 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), cell chemistry Lithium iron phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Cell Chemistry
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge , Advanced Battery Management System (BMS) , Internal Heating for Cold Temp Charging , Built in Fire Extinguisher for Ultimate Safety , Patent-Pending Fire Suppression System , Real-time status monitoring (via app or display) , Active Cell Balancing for Extended Life Cycle , Bluetooth Communication with BT 5.0
- Safety Features
- Built in Fire Extinguishers , Low Voltage Disconnect (LVD) , Low Temp Charging Cutoff , Over Charge / Discharge Protection , Reverse Polarity Protection , Over Current Protection
- Battery Features
- EV Battery Features
- Operating Temperature
- Charging: 0°C to 45°C (32°F to 113°F) , Discharging: -20°C to 60°C (-4°F to 140°F)
Dimensions & Weight
- Dimensions (L x W x H)
- Length
- Width
- Height
- Weight
- 149.0 lb
Fitment & Compatibility
- Make
- Model
- Model Number
Warranty & Compliance
- Warranty
- Certifications & Standards
- UL 1642, UL 1973, CE, RoHS, UN 38.3, IP65, MSDS
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Individual Batteries
- SKU
- 76-VLT-168-BAT
