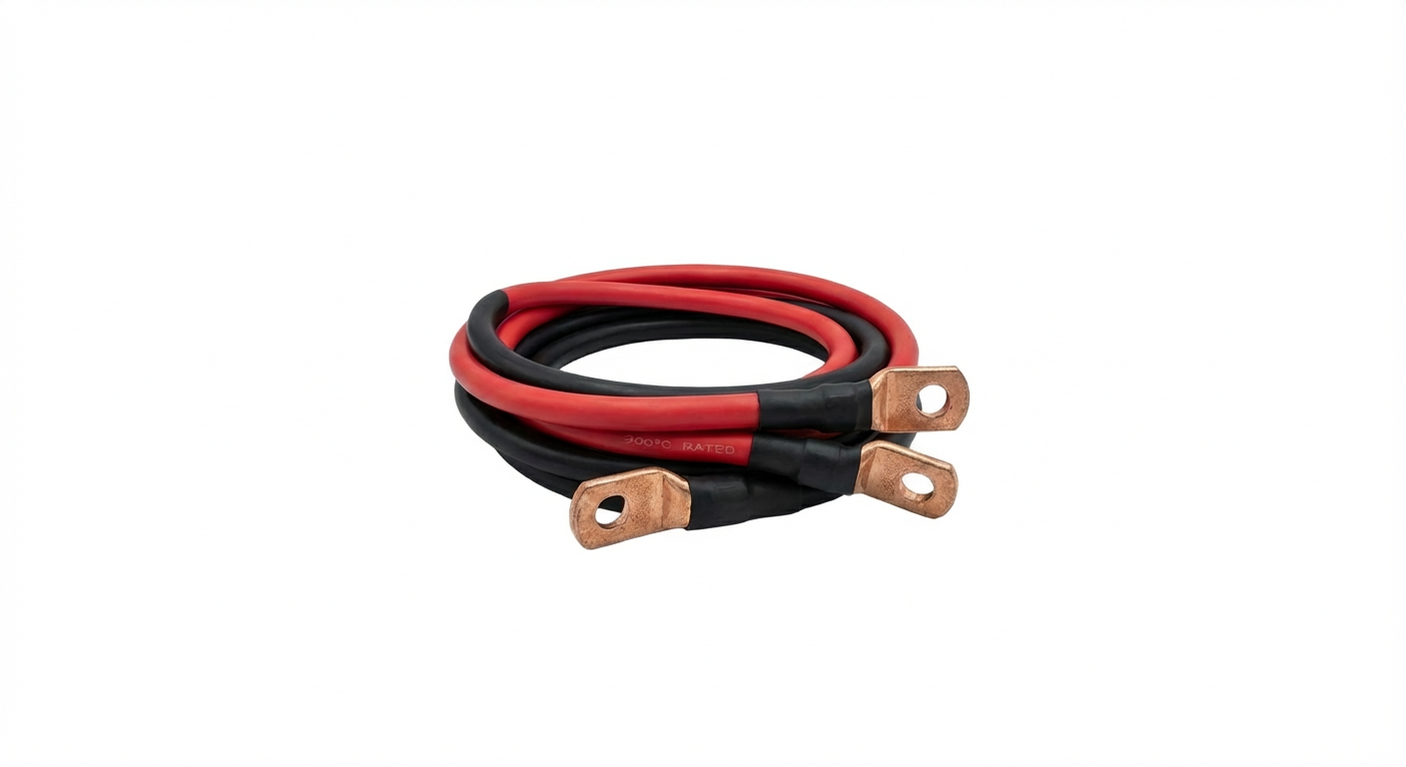

1/0 AWG High Current Battery Cable Set (Pair)


Sale price $6500 USD Regular price $8900
Shipping calculated at checkout.

Description

Fleet Lithium High-Current Power & Ground Cable Set

Engineered for high-demand 72V lithium traction systems where voltage stability and surge capacity matter.

Electrical Specifications

  • Conductor Size: 50mm² Fine-Strand Copper (≈ 1/0 AWG Class)
  • Cable Length: 40 inches (3.3 ft)
  • Insulation Rating: 200°C High-Temperature Jacket
  • Resistance (40" run): ~0.00032 Ω
  • Continuous Current Capacity: 300–350A (properly terminated)
  • Surge / Burst Capacity: 600–800A (short duration)
  • Momentary Peak Tolerance: 900A+ (<3 seconds, installation dependent)
  • Lug Type: Heavy-Wall Tinned Copper
  • Stud Compatibility: 10mm

Performance Characteristics

  • Low voltage drop under high acceleration load
  • Designed for dual-controller and high-output setups
  • Fine-strand flexibility for vibration resistance
  • High thermal margin for lithium surge currents
  • Optimized for short-run EV/UTV battery-to-controller connections

Built to support the higher surge currents and instantaneous torque delivery of modern lithium systems while maintaining stable system voltage under load.

Fleet Lithium High-Current Power & Ground Cable Set

Engineered for high-demand 72V lithium traction systems where voltage stability and surge capacity matter.

Electrical Specifications

  • Conductor Size: 50mm² Fine-Strand Copper (≈ 1/0 AWG Class)
  • Cable Length: 40 inches (3.3 ft)
  • Insulation Rating: 200°C High-Temperature Jacket
  • Resistance (40" run): ~0.00032 Ω
  • Continuous Current Capacity: 300–350A (properly terminated)
  • Surge / Burst Capacity: 600–800A (short duration)
  • Momentary Peak Tolerance: 900A+ (<3 seconds, installation dependent)
  • Lug Type: Heavy-Wall Tinned Copper
  • Stud Compatibility: 10mm

Performance Characteristics

  • Low voltage drop under high acceleration load
  • Designed for dual-controller and high-output setups
  • Fine-strand flexibility for vibration resistance
  • High thermal margin for lithium surge currents
  • Optimized for short-run EV/UTV battery-to-controller connections

Built to support the higher surge currents and instantaneous torque delivery of modern lithium systems while maintaining stable system voltage under load.
