Navitas 4-Seater Frame 72V Lithium Battery Conversion Kit — Fleet Lithium
10-Year Warranty / 5,000+ Cycles
10-Year Warranty / 5,000+ Cycles
Built for the long haul. Every Promise-series battery is backed by a 10-year manufacturer's warranty and rated for 5,000+ cycles at 80% depth of discharge. View full warranty details.
Product Highlights
Product Highlights
Navitas 4-Seater Frame 72V Lithium Battery Conversion Kit — Fleet Lithium - 105Ahis backordered and will ship as soon as it is back in stock.
Navitas 4-Seater Frame 72V Lithium Battery Conversion Kit — Fleet L...
Direct Drop-In 72V Lithium Upgrade for Navitas Chassis Frames

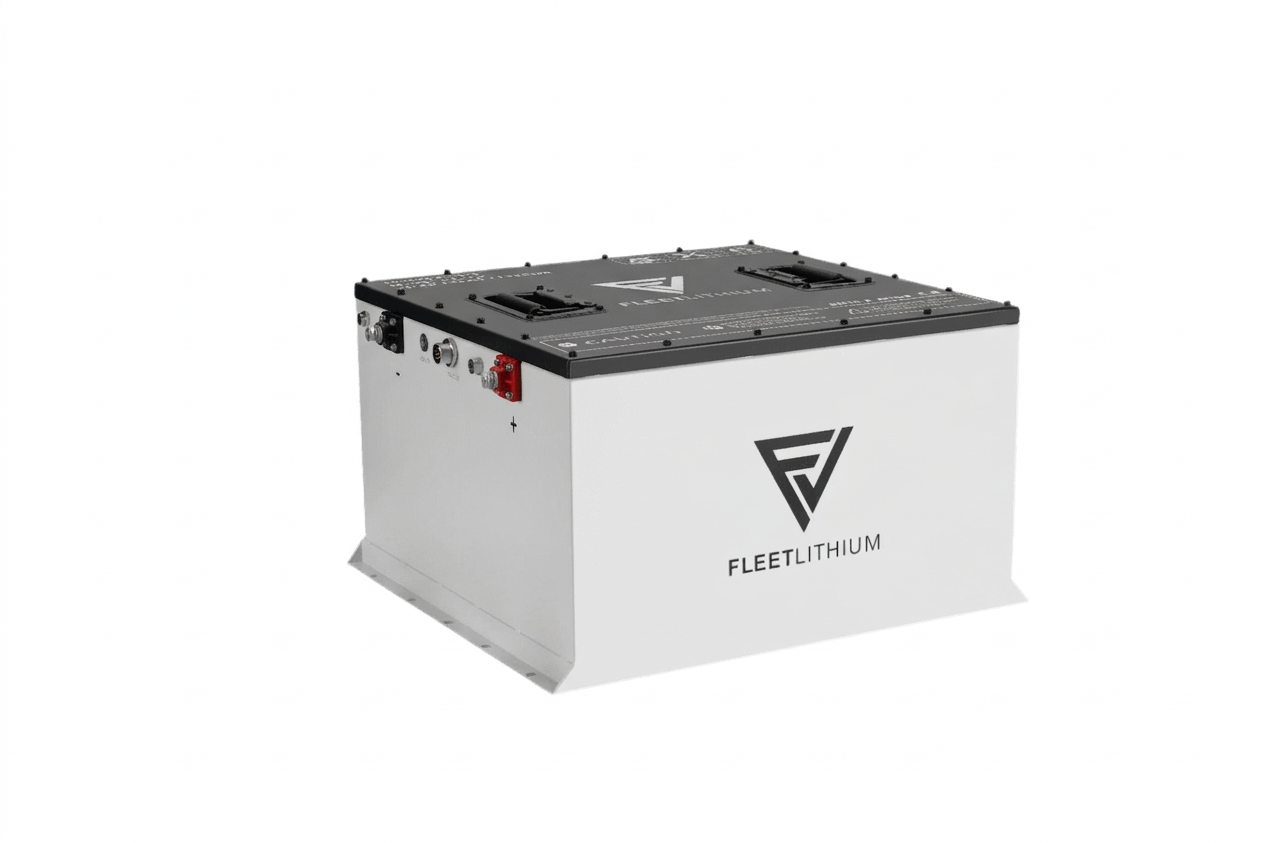

Replace your heavy lead-acid batteries with a single Fleet Lithium 76.8V LiFePO4 battery pack. Designed specifically for Navitas chassis builds, this complete conversion kit includes everything needed for a seamless upgrade — battery, charger, mounting bracket, and cables.
Fitment Guide
| OEM | Model | Year Range | Factory Voltage |
|---|---|---|---|
| Navitas | All Chassis Models | All Years | 72V (6× 12V) |
Controller Compatibility
Navitas controllers are designed for lithium compatibility. No programming required in most configurations. Verify your specific controller model supports 76.8V nominal input.
What's Included
- ✅ Fleet Lithium 76.8V LiFePO4 Battery Pack with 300A NexGen BMS (800A peak surge)
- ✅ Integrated Bluetooth monitoring and cold-weather heating system
- ✅ 72V lithium-compatible charger
- ✅ Vehicle-specific mounting bracket kit (BR5141)
- ✅ Pre-terminated cable harness with corrosion-resistant terminals
Key Specifications
- Chemistry: LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage: 76.8V
- Cycle Life: 5,000+ cycles at 80% DoD
- Certifications: UL 1642, UL 1973, CE, RoHS, UN38.3, IP67
- Warranty: 10-Year Limited Warranty
Frequently Asked Questions
Which capacity is right for me?
105Ah (8.06 kWh) — Best all-around option for daily driving. Provides up to 50 miles of range per charge and fits most standard configurations.
168Ah (12.90 kWh) — Maximum range for extended use. Delivers up to 80 miles per charge, ideal for large properties, commercial fleets, or all-day driving.
Will this void my warranty?
Installing a Fleet Lithium battery does not void your vehicle's warranty. The battery itself is covered by a 10-year limited warranty.
How long does installation take?
Most installations are completed in 30–60 minutes with basic hand tools. No wiring modifications are required.
Quick answer: the Navitas 4-Seater Frame 72V Lithium Battery Conversion Kit — Fleet Lithium from Fleet Lithium has nominal voltage 76.8V, capacity 105 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), chemistry EVE Prismatic Cell - LiFePO4, warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Factory Pack Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Cold Crank Amps
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Chemistry
- Battery Technology
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge, Advanced Battery Management System (BMS), Internal Heating for Cold Temp Charging, Patent-Pending Fire Suppression System, Real-time status monitoring (via app or display), Active Cell Balancing for Extended Life Cycle, Bluetooth Communication with BT 5.0
- Safety Features
- Thermal Regulation (Heated Cells), Built in Fire Extinguishers, Jump Start on Low Voltage, Low Voltage Disconnect (LVD), Low Temp Charging Cutoff, Over Charge / Discharge Protection, Reverse Polarity Protection, Over Current Protection
- Battery Features
- EV Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC), Discharging: -4 to 149 ºF (-20 to 65 ºC)
Dimensions & Weight
- Dimensions (L x W x H)
Fitment & Compatibility
- Make
- Model
- Model Year
- 0
- Model Number
- Motor Controller
Warranty & Compliance
- Warranty
- Certifications
- UL 1642, UL 1973, CE, RoHS, UN38.3, IP67
- Standards
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Lithium Battery Conversion Kit
- SKU
- NV7676105
- Shipping Weight
- 120.0 lb
