Epic Carts E40 / E40L / E60 / E60L (2017-2024) (48V) Fleet Lithium Conversion Kit
Epic Carts E40 / E40L / E60 / E60L (2017-2024) (48V) Fleet Lithium Conversion Kit - 51V 105Ahis backordered and will ship as soon as it is back in stock.
Epic Carts E40 / E40L / E60 / E60L (2017-2024) (48V) Fleet Lithium ...
Upgrade your EPIC E40 / E40L / E60 / E60L with a matched Fleet Lithium system
Replace a confirmed compatible 48V lead-acid bank with the Fleet 51.2V nominal LiFePO4 configuration that suits your driving routine. Confirm the vehicle labels, tray, controller, converter and charging interface before ordering.
EPIC E20 / E40 / E60 installation resources
Download the Fleet installation manual (PDF) · Read the lithium conversion guide
Separate E20, E40 and E60 layout photos, labeled EPIC components, charger-inhibit and converter instructions, plus a fillable installation record. Revision 1.1. For compatible 48V lead-acid conversions; factory-lithium and FX replacements need separate approval.
Choose your capacity
- 65Ah: 3.33 kWh nominal; stock motor/controller and approved load.
- 105Ah: 5.38 kWh nominal; regular use with opportunities to recharge.
- 168Ah: 8.60 kWh nominal; more reserve in one pack.
- 210Ah: 10.75 kWh nominal; two matched 105Ah packs in parallel with approved dual mounting and wiring.
Nominal energy is 51.2V × Ah ÷ 1,000. Range depends on passengers, terrain, speed, tires, temperature and accessories. A controller amp label alone does not establish the battery current required.
What is included
Your selected Fleet battery configuration, CH5618 58.4V/18A lithium charger, BR4763 mounting kit, AC0219 inlet, CB0917 cable set, digital SOC gauge and mounting hardware.
Check the delivered packing list and fitting instructions. Retain the existing DC converter only after its full input range, output and load capacity are confirmed; a replacement is not included in every EPIC bundle. Paired kits require the approved parallel components and matching procedure.
Fitment and electrical checks
For confirmed compatible 48V lead-acid E40/E40L/E60/E60L vehicles within the listed application. Check actual tray revisions; the E60 can have an eight-6V bank split across two compartments. Year alone does not prove fitment.
Use the matched lithium charger and SOC display. Preserve the approved charge-inhibit and electromagnetic-brake functions. Have the exact controller limits and regenerative-braking configuration checked; there is no universal reprogramming rule by model year.
A newer EPIC is not automatically 72V. Do not put a 76.8V battery into a 48V system. Factory-lithium and FX replacements require a separate battery, harness and communication compatibility check.
Fleet battery ownership
Use the matching SOC display and supported Bluetooth monitoring for battery information. Review the specifications and heater behavior of your selected pack and the current Fleet warranty terms. If your original bank is sealed AGM, it already needs no watering.
Ask Fleet to confirm your EPIC kit with vehicle and controller labels, battery-bank photos and your intended use.
Quick answer: the Epic Carts E40 / E40L / E60 / E60L (2017-2024) (48V) Fleet Lithium Conversion Kit from Fleet Lithium has nominal voltage 51.2V, capacity 105 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), cell chemistry Lithium iron phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Factory Pack Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Cell Chemistry
- Battery Type
- EV Battery Type

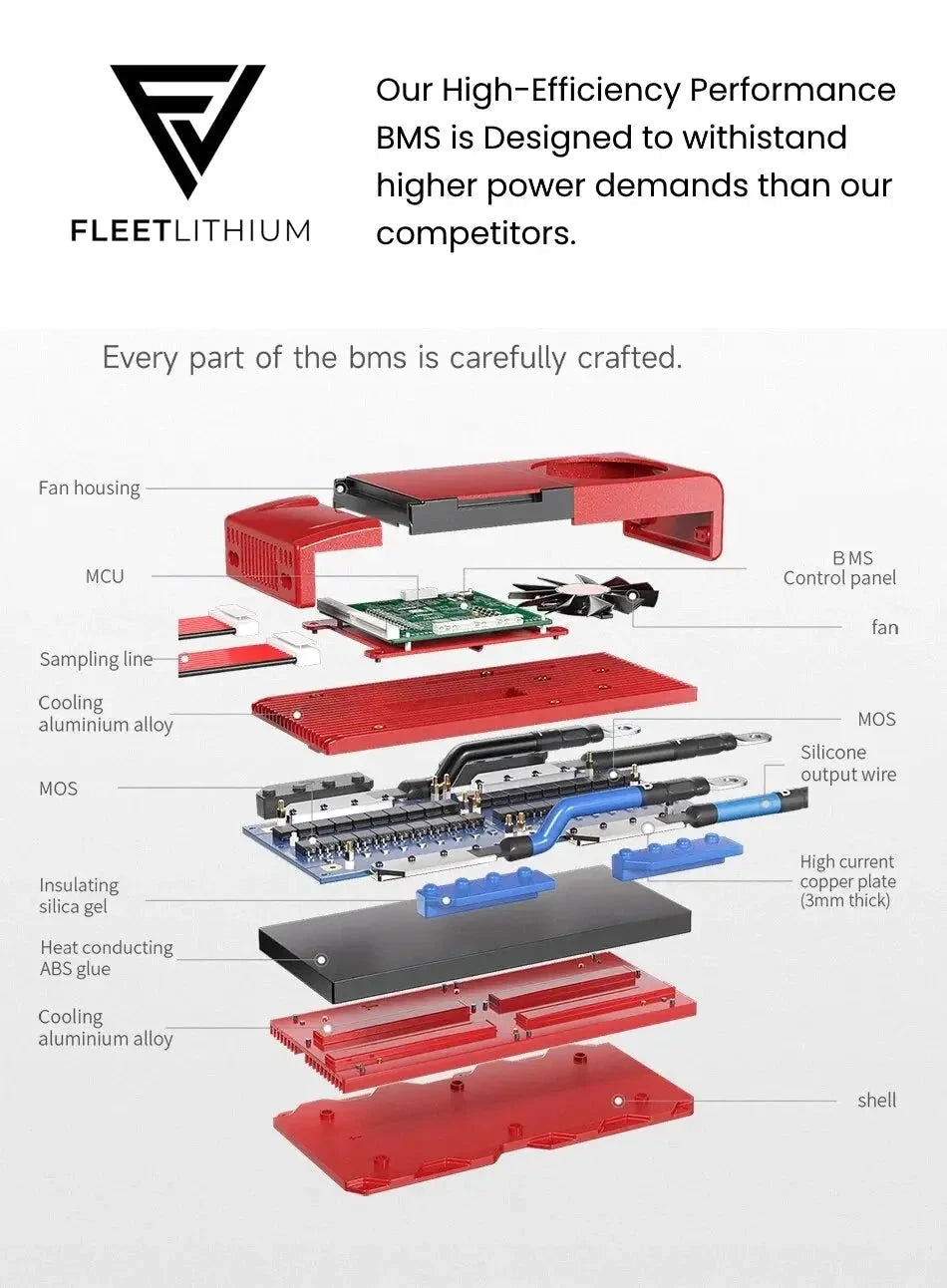

- BMS Features
- 300A Continuous / 800A Peak Surge Discharge , Advanced Battery Management System (BMS) , Internal Heating for Cold Temp Charging , Active Cell Balancing for Extended Life Cycle , Built in Fire Extinguisher for Ultimate Safety
- Safety Features
- Thermal Regulation (Heated Cells) , Low Voltage Disconnect (LVD) , Over Charge / Discharge Protection , Over Current Protection
- Battery Features
- EV Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC) , Discharging: -4 to 149 ºF (-20 to 65 ºC) , Storage: 50 to 113 ºF (10 to 45 ºC)
Dimensions & Weight
- Dimensions (L x W x H)
- Weight
- 118.0 lb
Fitment & Compatibility
- Make
- Model
- Model Year
- 2017 , 2018 , 2019 , 2020 , 2021 , 2022 , 2023 , 2024
- Model Number
- Motor Controller
Warranty & Compliance
- Warranty
- Certifications & Standards
- UL 1642, UL 1973, CE, RoHS, UN 38.3, IP67
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Lithium Battery Conversion Kit
- SKU
- EP4763
