Upgrade Your 72V E-Z-GO Freedom TXT to Fleet Lithium
Replace the six 12V lead-acid batteries in your 72V E-Z-GO Freedom TXT with a single 76.8V LiFePO4 pack from Fleet Lithium. Complete conversion kit — battery, 72V charger, BR5900 bracket kit, cables and hardware included. Half the weight, twice the range, and no watering, ever.
Choose Your Capacity
| Capacity | Range | Best For |
|---|---|---|
| 76.8V 105Ah | Up to 65 mi | Daily driving, golf |
| 76.8V 168Ah | Up to 100 mi | All-day use, fleet duty |

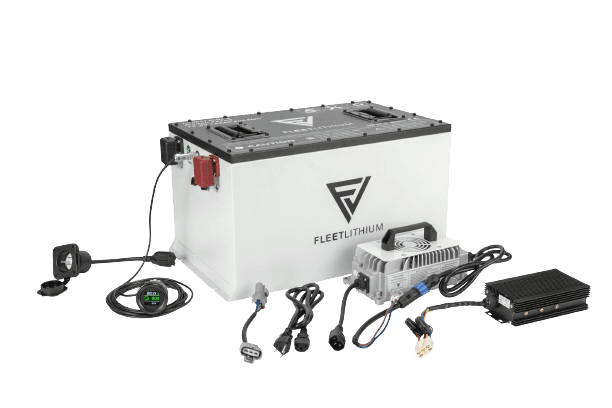

What's Included

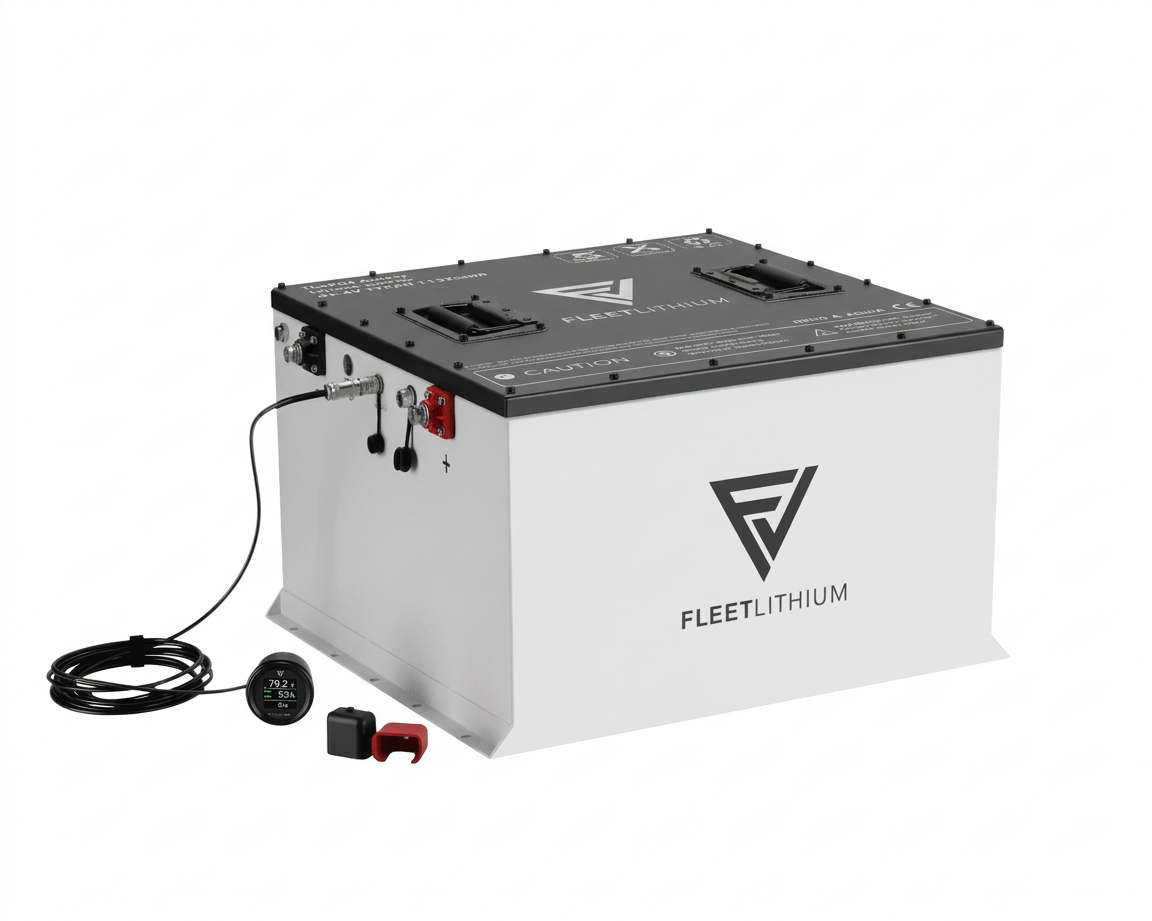

- 76.8V NexGen Fleet Lithium LiFePO4 Battery (selected capacity)
- CH8713 — 87.6V LiFePO4 Smart Charger
- BR5900 — Bracket Kit for E-Z-GO Freedom TXT 72V
- AC Power Connector
- Cable Set
- Digital State-of-Charge Gauge
- All mounting hardware
Key Specs
- 300A NexGen BMS with 800A peak surge
- Patent-pending fire suppression system
- Built-in cold-weather heater — activates automatically below 32°F (standard, not an add-on)
- Bluetooth monitoring — voltage, temp, cycle count from your phone
- 10-year warranty — designed and assembled in the USA
Fitment Guide
| OEM Model | Years | Factory Pack | Bracket Shipped |
|---|---|---|---|
| E-Z-GO Freedom TXT (72V AC) | 2017–2021 | 72V, six 12V lead-acid | BR5900 |
OEM parts fitment supports the 72V six-12V Freedom TXT from 2017 through 2021. Open the seat and confirm six 12V batteries before ordering — a 48V Freedom TXT uses a different kit, and factory ELiTE lithium carts are not covered.
Controller Compatibility
The 72V Freedom TXT uses an E-Z-GO 350A AC controller. The Fleet Lithium 76.8V pack is fully compatible — no reprogramming, no controller upgrade, and no wiring changes. Aftermarket controllers should be verified separately.
Will this fit my Freedom TXT?
Yes, on 72V lead-acid Freedom TXT carts from 2017 through 2021. No vehicle modification is expected with BR5900 and the Fleet 72V lithium charger.
Does it fit a 48V Freedom TXT?
No. The 48V Freedom TXT uses a different pack voltage and charger. Use the vehicle finder to confirm your system voltage before ordering.
How long does installation take?
30–60 minutes with basic hand tools.
Does it work in cold weather?
Yes. The built-in heater activates automatically below 32°F — standard on every pack.
*Range estimates are maximums under ideal conditions (flat terrain, single rider, 12–15 mph, 70°F). Actual range varies with terrain, weight, speed, and temperature.
Quick answer: the EZGO Freedom TXT (2017-2021) 72V Lithium Battery Conversion Kit — Fleet Lithium from Fleet Lithium has nominal voltage 76.8V, capacity 105 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), cell chemistry Lithium iron phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Factory Pack Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Cell Chemistry
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge , Advanced Battery Management System (BMS) , Internal Heating for Cold Temp Charging , Active Cell Balancing for Extended Life Cycle
- Safety Features
- Thermal Regulation (Heated Cells) , Low Voltage Disconnect (LVD) , Over Charge / Discharge Protection , Over Current Protection
- Battery Features
- EV Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC) , Discharging: -4 to 149 ºF (-20 to 65 ºC) , Storage: 50 to 113 ºF (10 to 45 ºC)
Dimensions & Weight
- Dimensions (L x W x H)
- Weight
- 147.0 lb
Fitment & Compatibility
- Make
- Model
- Model Year
- 2017 , 2018 , 2019 , 2020 , 2021
- Model Number
- Motor Controller
Warranty & Compliance
- Warranty
- Certifications & Standards
- UL 1642, UL 1973, CE, RoHS, UN 38.3, IP67
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- OE Battery Bundles
- SKU
- EZ5900
