Evolution Classic / D5 Ranger / Maverick (All Years) (48V) Fleet Lithium Conversion Kit
Evolution Classic / D5 Ranger / Maverick (All Years) (48V) Fleet Lithium Conversion Kit - 105Ah Backordered — estimated to ship Sep 15
10-Year Warranty / 5,000+ Cycles
10-Year Warranty / 5,000+ Cycles
Built for the long haul. Every Promise-series battery is backed by a 10-year manufacturer's warranty and rated for 5,000+ cycles at 80% depth of discharge. View full warranty details.
Product Highlights
Product Highlights
Evolution Classic / D5 Ranger / Maverick (All Years) (48V) Fleet Li...
Drop-In Lithium Power for Your Evolution Classic / D5 Ranger / Maverick
Replace your lead-acid batteries with a single, lightweight 48V LiFePO4 kit from Fleet Lithium. Fits Evolution Classic, D5 Ranger, and Maverick (all years) — no rewiring, no programming, no special tools.
Choose Your Range
| Capacity | Range | Best For |
|---|---|---|
| 51V 65Ah | Up to 27 mi | Stock carts only |
| 51V 105Ah | Up to 50 mi | Daily driving, golf |
| 51V 168Ah | Up to 75 mi | All-day use |
| 51V 210Ah | Up to 90 mi | Max range, fleet use |
65Ah is for stock motors/controllers only. If your cart has performance upgrades, choose 105Ah or higher.
What's Included
- 51V NexGen Fleet Lithium LiFePO4 Battery (selected capacity)
- CH5618 — 58.4V 18A LiFePO4 Smart Charger
- Vehicle-specific Evolution bracket kit
- AC0219 — AC Power Connector
- CB0917 — Cable Set (35.4")
- Digital State-of-Charge Gauge
- All mounting hardware
Key Specs

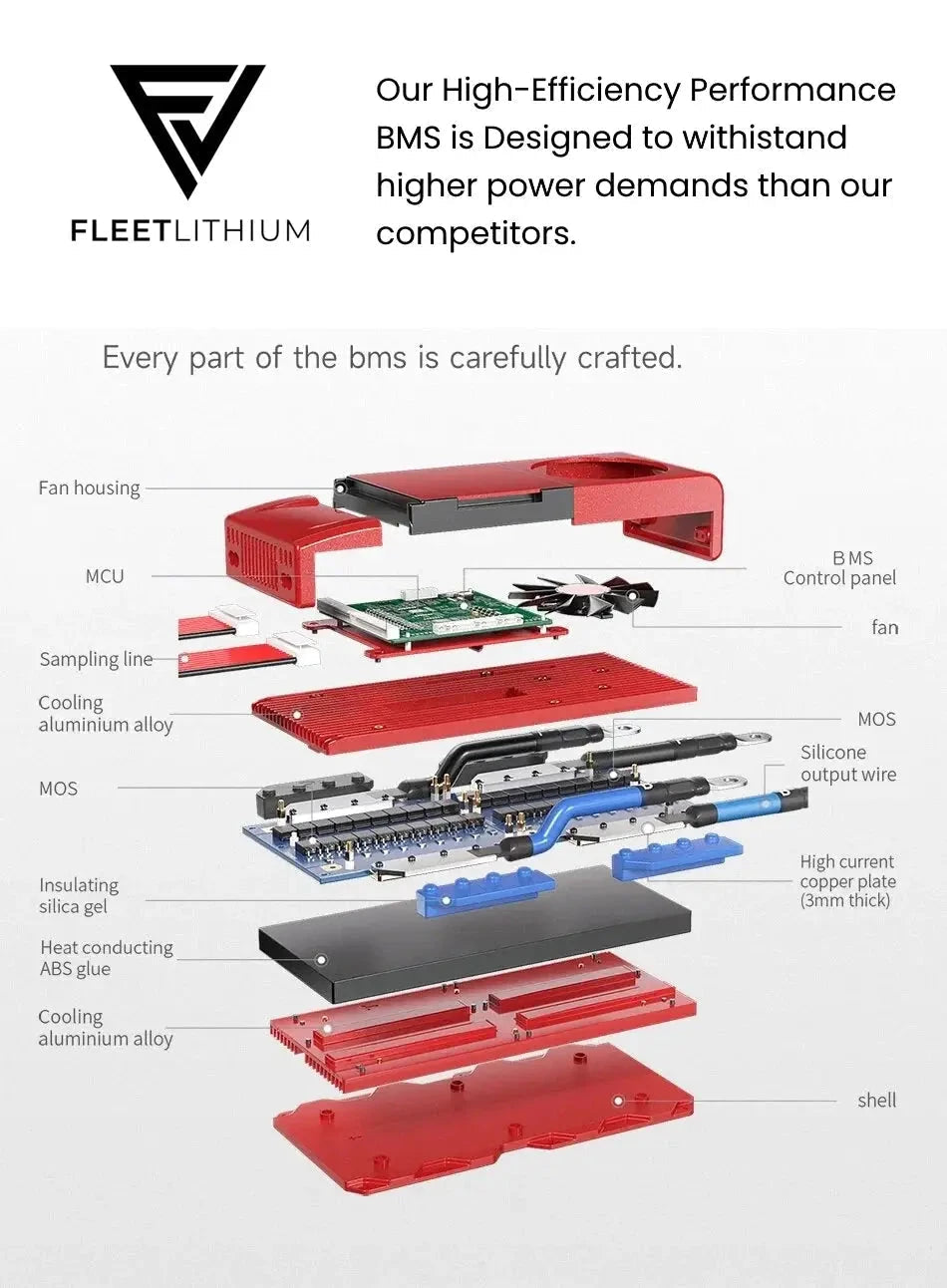

- 300A NexGen BMS with 800A peak surge
- Patent-pending fire suppression system
- Built-in cold-weather heater — activates automatically below 32°F (standard, not an add-on)
- Bluetooth monitoring — voltage, temp, cycle count from your phone
- 10-year warranty — designed and assembled in the USA
Fits: Evolution Classic, D5 Ranger, Maverick — all years — factory 48V AC controller compatible. No upgrades or reprogramming needed.
FAQ
Will this fit my Evolution cart? Yes. The included bracket kit ensures a factory-fit installation. No modifications required.
Do I need to reprogram my controller? No. Works with your factory 48V AC controller out of the box.
How long does installation take? 30–60 minutes with basic hand tools.
Does it work in cold weather? Yes. Built-in heater activates automatically below 32°F — standard on every pack.
*Range estimates are maximums under ideal conditions (flat terrain, single rider, 12–15 mph, 70°F). Actual range varies with terrain, weight, speed, and temperature.
Quick answer: the Evolution Classic / D5 Ranger / Maverick (All Years) (48V) Fleet Lithium Conversion Kit from Fleet Lithium has nominal voltage 51.2V, capacity 105 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), cell chemistry Lithium iron phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Factory Pack Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Cell Chemistry
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge , Advanced Battery Management System (BMS) , Internal Heating for Cold Temp Charging , Active Cell Balancing for Extended Life Cycle , Bluetooth Communication with BT 5.0
- Safety Features
- Thermal Regulation (Heated Cells) , Low Voltage Disconnect (LVD) , Over Charge / Discharge Protection , Reverse Polarity Protection , Over Current Protection
- Battery Features
- EV Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC) , Discharging: -4 to 149 ºF (-20 to 65 ºC) , Storage: 50 to 113 ºF (10 to 45 ºC)
Dimensions & Weight
- Dimensions (L x W x H)
- Weight
- 120.0 lb
Fitment & Compatibility
- Make
- Model
- Model Number
- Motor Controller
Warranty & Compliance
- Warranty
- Certifications & Standards
- UL 1642, UL 1973, CE, RoHS, UN 38.3, IP67
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Lithium Battery Conversion Kit
- SKU
- FL51105-FLEET-LITHIUM-CONVERSION-BUNDLE-FOR-EVOL
