EZGO TXT Lithium Ready (2020-2022) 48V Lithium Battery Conversion Kit — Fleet Lithium
EZGO TXT Lithium Ready (2020-2022) 48V Lithium Battery Conversion Kit — Fleet Lithium - 51V 105Ah Backordered — estimated to ship Sep 15
10-Year Warranty / 5,000+ Cycles
10-Year Warranty / 5,000+ Cycles
Built for the long haul. Every Promise-series battery is backed by a 10-year manufacturer's warranty and rated for 5,000+ cycles at 80% depth of discharge. View full warranty details.
Product Highlights
Product Highlights
EZGO TXT Lithium Ready (2020-2022) 48V Lithium Battery Conversion K...
Upgrade Your Lithium-Ready E-Z-GO TXT to Fleet Lithium
Replace the four 12V lead-acid batteries in your 48V lithium-ready E-Z-GO TXT with a single 51V LiFePO4 pack from Fleet Lithium. Complete conversion kit — battery, charger, BR2624 bracket kit, cables and hardware included. Half the weight, twice the range, and no watering, ever.
Choose Your Capacity
| Capacity | Range | Best For |
|---|---|---|
| 51V 65Ah | Up to 27 mi | Stock carts only |
| 51V 105Ah | Up to 50 mi | Daily driving, golf |
| 51V 168Ah | Up to 75 mi | All-day use |
| 51V 210Ah | Up to 90 mi | Max range, fleet use |
65Ah is for stock motors and controllers only. If your TXT is lifted, loaded, or upgraded, choose 105Ah or higher.

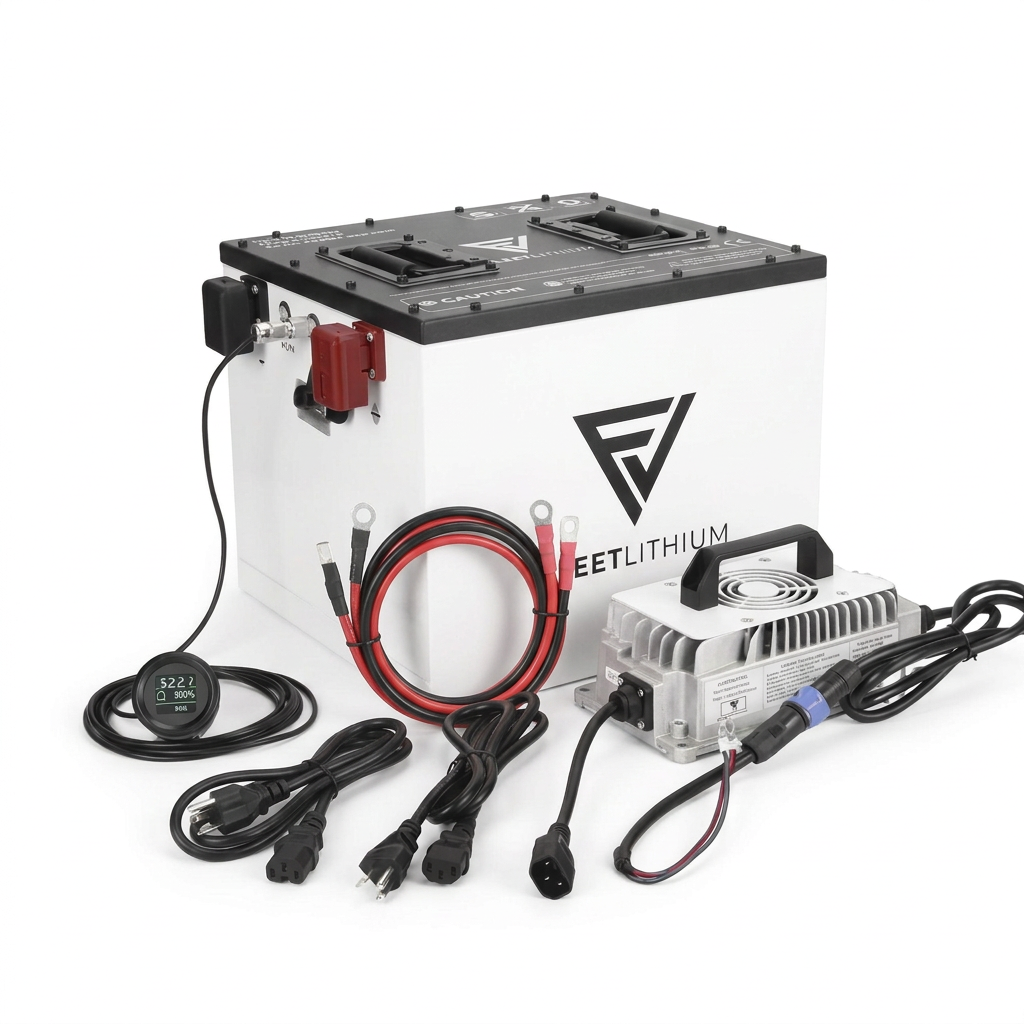

What's Included
- 51V NexGen Fleet Lithium LiFePO4 Battery (selected capacity)
- CH5618 — 58.4V 18A LiFePO4 Smart Charger
- BR2624 — Bracket Kit for E-Z-GO TXT Lithium Ready
- AC0219 — AC Power Connector
- CB0917 — Cable Set (35.4")
- Digital State-of-Charge Gauge
- All mounting hardware
Key Specs
- 300A NexGen BMS with 800A peak surge
- Patent-pending fire suppression system
- Built-in cold-weather heater — activates automatically below 32°F (standard, not an add-on)
- Bluetooth monitoring — voltage, temp, cycle count from your phone
- 10-year warranty — designed and assembled in the USA
Fitment Guide
| OEM Model | Years | Factory Pack | Bracket Shipped |
|---|---|---|---|
| E-Z-GO TXT (lithium-ready tray) | 2020–2022 | 48V, four 12V lead-acid | BR2624 |
Verified through 2022 on the four-12V lithium-ready tray. Open the seat and count four 12V batteries before ordering. Older TXT carts with six 8V batteries use a different bracket, and factory ELiTE lithium carts are not covered by this kit.
Controller Compatibility
Lithium-ready TXT carts ship with a 48V Curtis controller already configured for lithium packs. The Fleet Lithium 51V pack drops straight in — no reprogramming, no controller upgrade, no wiring changes. Aftermarket controllers should be verified separately.
Will this fit my TXT?
Yes, on 2020–2022 lithium-ready TXT carts with the four-12V tray. No drilling or vehicle modification is expected with BR2624 and the Fleet lithium charger.
Does it fit an ELiTE lithium TXT?
No. Factory ELiTE carts already ship with a lithium pack and use a different architecture.
How long does installation take?
30–60 minutes with basic hand tools.
Does it work in cold weather?
Yes. The built-in heater activates automatically below 32°F — standard on every pack.
*Range estimates are maximums under ideal conditions (flat terrain, single rider, 12–15 mph, 70°F). Actual range varies with terrain, weight, speed, and temperature.
Quick answer: the EZGO TXT Lithium Ready (2020-2022) 48V Lithium Battery Conversion Kit — Fleet Lithium from Fleet Lithium has nominal voltage 51.2V, capacity 105 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), cell chemistry Lithium iron phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Factory Pack Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Cell Chemistry
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge , Advanced Battery Management System (BMS) , Internal Heating for Cold Temp Charging , Active Cell Balancing for Extended Life Cycle
- Safety Features
- Thermal Regulation (Heated Cells) , Low Voltage Disconnect (LVD) , Over Charge / Discharge Protection , Over Current Protection
- Battery Features
- EV Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC) , Discharging: -4 to 149 ºF (-20 to 65 ºC) , Storage: 50 to 113 ºF (10 to 45 ºC)
Dimensions & Weight
- Dimensions (L x W x H)
- Weight
- 118.0 lb
Fitment & Compatibility
- Make
- Model
- Model Year
- 2020 , 2021 , 2022
- Model Number
- Motor Controller
Warranty & Compliance
- Warranty
- Certifications & Standards
- UL 1642, UL 1973, CE, RoHS, UN 38.3, IP67
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Lithium Battery Conversion Kit
- SKU
- EZ2624
