Cushman Hauler 48V 105Ah Lithium Battery Kit — Fleet Lithium
10-Year Warranty / 5,000+ Cycles
10-Year Warranty / 5,000+ Cycles
Built for the long haul. Every Promise-series battery is backed by a 10-year manufacturer's warranty and rated for 5,000+ cycles at 80% depth of discharge. View full warranty details.
Product Highlights
Product Highlights
Cushman Hauler 48V 105Ah Lithium Battery Kit — Fleet Lithium - 105Ah Backordered — estimated to ship Sep 15
Cushman Hauler 48V 105Ah Lithium Battery
Drop-in 51V 105Ah LiFePO4 lithium battery conversion kit for Cushman Hauler (all years). Up to 50 miles of range with 300A continuous power. Complete kit with charger, bracket, cables, and all hardware.

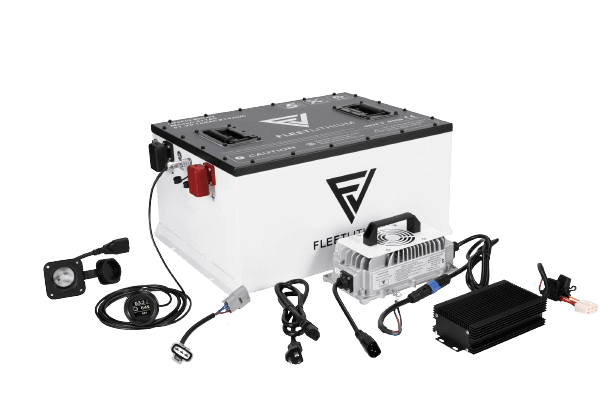

What's Included
- 51V 105Ah NexGen Fleet Lithium Battery (5.38 kWh)
- 58.4V 18A LiFePO4 Charger
- Vehicle-specific bracket kit
- AC connector, cable set, SOC gauge
- All mounting hardware
Key Specs
- 300A NexGen BMS with 800A peak surge
- Built-in cold-weather heating — activates automatically below 32°F
- Bluetooth diagnostics via iOS/Android app
- Integrated fire suppression system
- 10-year warranty, proudly built in America
Fits: Cushman Hauler — all years — factory 48V controller compatible.
How far can I drive on a single charge?
The 105Ah kit delivers up to 50 miles per charge under ideal conditions.
Is this a true drop-in replacement?
Yes. Designed for DIY installation with no special tools or controller reprogramming required.
Does it work in cold weather?
Yes. Built-in heating activates automatically below 32°F for safe cold-weather charging.
Range estimates reflect ideal conditions. Actual range varies with terrain, load, speed, tire pressure, and accessories.
Quick answer: the Cushman Hauler 48V 105Ah Lithium Battery Kit — Fleet Lithium from Fleet Lithium has nominal voltage 51.2V, capacity 105 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), chemistry Lithium Iron Phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Factory Pack Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Cold Crank Amps
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Chemistry
- Battery Technology
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge, Advanced Battery Management System (BMS), Internal Heating for Cold Temp Charging, Active Cell Balancing for Extended Life Cycle, Bluetooth Communication with BT 5.0
- Safety Features
- Thermal Regulation (Heated Cells), Low Voltage Disconnect (LVD), Over Charge / Discharge Protection, Reverse Polarity Protection, Over Current Protection
- Battery Features
- EV Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC), Discharging: -4 to 149 ºF (-20 to 65 ºC), Storage: 50 to 113 ºF (10 to 45 ºC)
Dimensions & Weight
- Dimensions (L x W x H)
Fitment & Compatibility
- Make
- Model
- Model Year
- 0
- Model Number
- Motor Controller
Warranty & Compliance
- Warranty
- Certifications
- UL 1642, UL 1973, CE, RoHS, UN38.3, IP67
- Standards
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Lithium Battery Conversion Kit
- SKU
- CU4827105
- Shipping Weight
- 120.0 lb
