36V 100Ah Lithium Battery for Marine Trolling Motors

36V 100Ah Lithium Battery for Marine Trolling Motors

Overview

The 36V 100Ah Lithium Battery is designed specifically for marine trolling motors, offering superior power, efficiency, and longevity compared to traditional lead-acid batteries. With its high energy density, fast charging capabilities, and lightweight design, this lithium battery provides reliable and consistent performance for long days on the water. It is engineered for marine environments, built to handle the demands of both fresh and saltwater applications.

Battery Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Voltage: 36V
• Capacity: 100Ah
• Nominal Energy: 3,600Wh
• Cycle Life: 3,000 - 5,000 cycles at 80% Depth of Discharge (DoD)
• Max Discharge Current: 100A continuous, 150A peak
• Weight: 35-40 lbs (depending on the specific model)
• Dimensions: 12.5” x 7.5” x 8”

Safety Features

• Overcharge protection
• Over-discharge protection
• Short circuit protection
• Overcurrent protection
• Thermal protection
• Reverse polarity protection
• Low voltage disconnect (LVD)

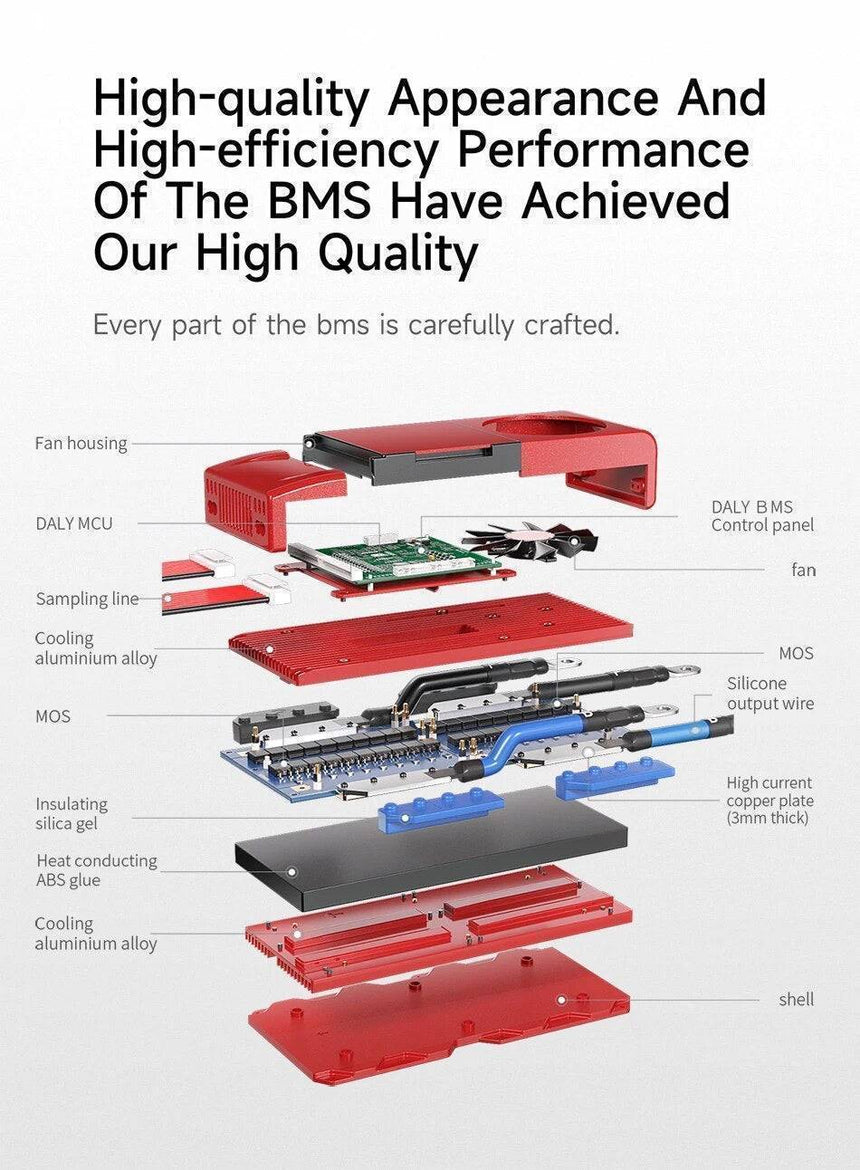

Battery Management System (BMS) Features

• Active and passive cell balancing for optimal performance
• Voltage, current, and temperature monitoring
• Real-time status monitoring via app or display
• Over-voltage, under-voltage, over-temperature, and over-current protection
• Low voltage disconnect (LVD) to prevent deep discharge
• Automatic shut-off in case of abnormal conditions

Certifications

• UL 1642
• UL 1973
• CE
• RoHS
• UN38.3 (for shipping)

Warranty

• 5 years or 3,000 cycles (whichever comes first)

Use Case

• Marine Trolling Motors: Perfect for use with 36V trolling motors, offering consistent power, long run times, and quick recharge times for day-long fishing or cruising excursions.
• Fishing Boats: Ideal for anglers who need reliable, deep-cycle power for their trolling motors and other onboard systems. The 36V system provides the energy needed for trolling without worrying about battery fade.
• Small to Medium-sized Boats: Suitable for boats that need a lightweight, powerful energy source for long days on the water. The battery ensures your trolling motor has consistent power throughout the day.
• Saltwater & Freshwater Use: The battery is designed for durability in both freshwater and saltwater environments, making it versatile for all kinds of marine adventures.
• Hybrid Applications: The 36V 100Ah battery is also great for hybrid marine systems, where it can power trolling motors alongside other electrical systems in the boat, such as lights, GPS, and fish finders.

Why Choose the 36V 100Ah Lithium Battery for Marine Trolling Motors?

• Longer Battery Life: With up to 5,000 charge cycles, this lithium battery lasts far longer than traditional lead-acid batteries, providing many years of reliable service.
• Higher Efficiency: Lithium batteries have a higher energy density and charge/discharge efficiency compared to lead-acid batteries, meaning more usable power for your trolling motor.
• Lightweight & Compact: Weighing significantly less than equivalent lead-acid batteries, the 36V 100Ah lithium battery reduces the overall weight of your boat, improving fuel efficiency and handling.
• Faster Charging: The lithium battery charges much faster than lead-acid batteries, meaning less downtime and more time spent on the water.
• Environmentally Friendly: Lithium batteries are safer for the environment, being free of lead and acid, and reducing the frequency of battery replacements, which contributes to a cleaner planet.
• Built for Marine Environments: The IP67 waterproof rating and robust design ensure the battery can withstand the harsh conditions of both saltwater and freshwater use.
• Bluetooth Monitoring: The battery includes Bluetooth functionality for real-time monitoring of charge status, health, and performance directly from your mobile device, providing peace of mind while on the water.

Application Scenarios for the 36V 100Ah Lithium Battery for Marine Trolling Motors

• Fishing Boats: This battery is ideal for powering trolling motors on fishing boats, providing consistent and reliable power for all-day fishing trips without worrying about battery fatigue.
• Recreational Boating: Use this lithium battery in recreational boating for cruising, fishing, and powering other essential electrical systems on board.
• Saltwater and Freshwater Use: Whether in saltwater or freshwater, this lithium battery performs optimally, offering resistance to corrosion and durability for tough environments.
• Hybrid Systems: If you are looking to install a hybrid power system, this 36V battery is a great choice for integrating with other power needs, from motors to onboard electronics.
• Electric Marine Propulsion: As part of a complete electric propulsion system, this 36V battery provides the power needed for quieter, cleaner, and more efficient boating.
