MadJax (All Years) (48V) Fleet Lithium Conversion Kit
10-Year Warranty / 5,000+ Cycles
10-Year Warranty / 5,000+ Cycles
Built for the long haul. Every Promise-series battery is backed by a 10-year manufacturer's warranty and rated for 5,000+ cycles at 80% depth of discharge. View full warranty details.
Product Highlights
Product Highlights
MadJax (All Years) (48V) Fleet Lithium Conversion Kit - 51V 168Ahis backordered and will ship as soon as it is back in stock.
MadJax (All Years) (48V) Fleet Lithium Conversion Kit
Upgrade Your MadJax Cart to Fleet Lithium
Replace the factory lead-acid batteries in your MadJax-built golf cart with a single, high-performance 51V LiFePO4 pack from Fleet Lithium. Complete conversion kit — battery, charger, bracket, cables, and all hardware included.
Choose Your Capacity
| Capacity | Range | Best For |
|---|---|---|
| 51V 65Ah | Up to 27 mi | Stock carts only |
| 51V 105Ah | Up to 50 mi | Daily driving |
| 51V 168Ah | Up to 75 mi | All-day use |
| 51V 210Ah | Up to 90 mi | Max range |
65Ah is for stock motors/controllers only.
What's Included
- 51V NexGen Fleet Lithium LiFePO4 Battery (selected capacity)
- CH5618 — 58.4V 18A LiFePO4 Smart Charger
- BR5215 — MadJax Generic Frame Bracket Kit
- AC0219 — AC Power Connector
- CB0917 — Cable Set (35.4")
- Digital State-of-Charge Gauge
- All mounting hardware
Key Specs

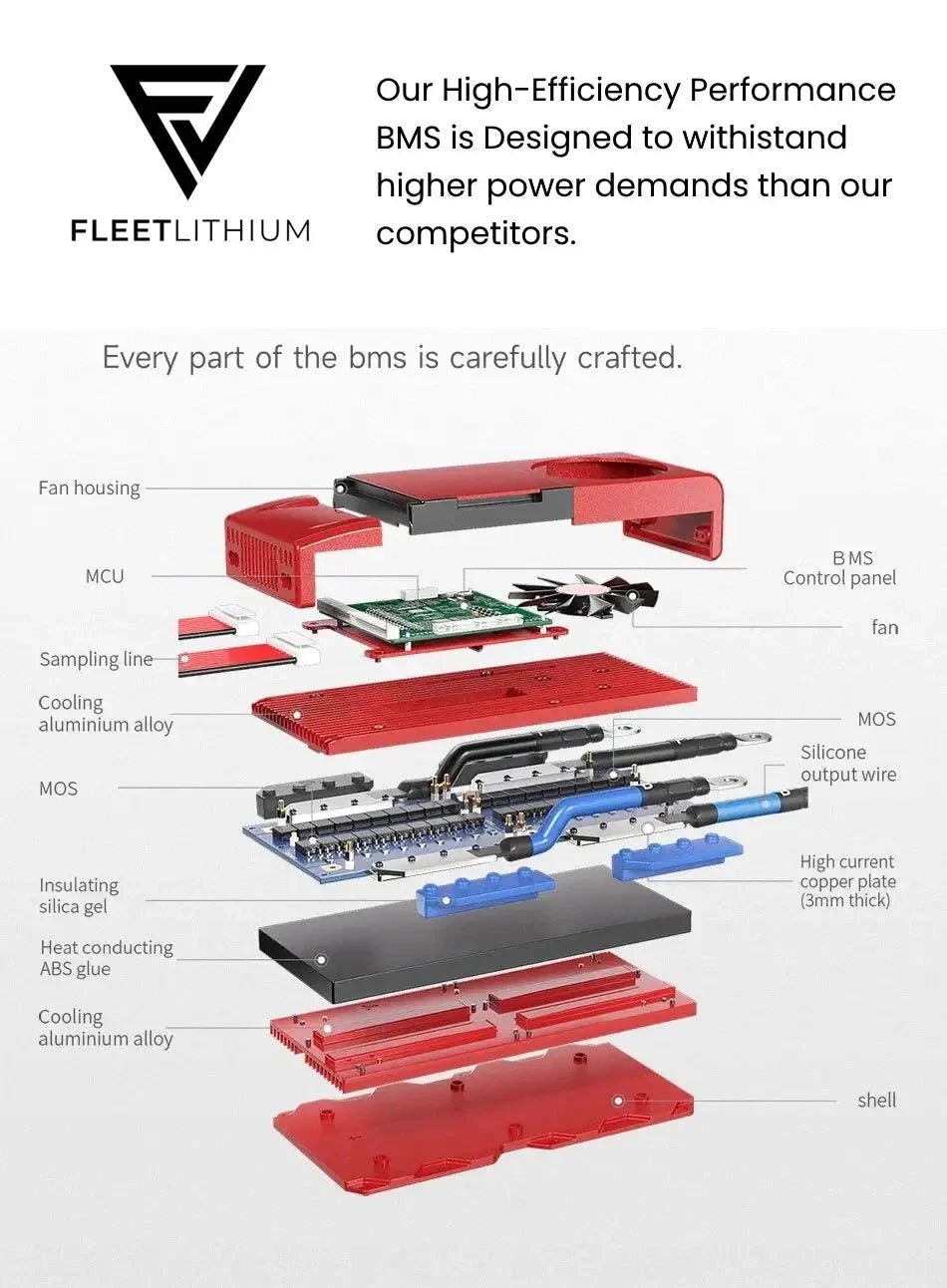

- 300A NexGen BMS with 800A peak surge
- Patent-pending fire suppression system
- Built-in cold-weather heater — activates automatically below 32°F
- Bluetooth monitoring
- 10-year warranty — designed and assembled in the USA
Fitment Guide
| OEM | Model | Years | Factory Voltage |
|---|---|---|---|
| MadJax | Generic Frame | All Years | 48V |
Controller Compatibility
MadJax frames typically use aftermarket 48V controllers. The Fleet Lithium 51V pack is compatible with most 48V controller setups. Verify your specific controller model before ordering.
Will this fit my MadJax cart?
Yes. The BR5215 bracket kit is designed for MadJax frame battery compartments.
Does my controller need reprogramming?
In most cases, no. Verify your controller model for compatibility.
Does it work in cold weather?
Yes. Built-in heater activates automatically below 32°F.
*Range estimates are maximums under ideal conditions.
Quick answer: the MadJax (All Years) (48V) Fleet Lithium Conversion Kit from Fleet Lithium has nominal voltage 51.2V, capacity 105 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), chemistry Lithium Iron Phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Factory Pack Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Cold Crank Amps
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Chemistry
- Battery Technology
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge, Advanced Battery Management System (BMS), Internal Heating for Cold Temp Charging, Patent-Pending Fire Suppression System, Bluetooth Communication with BT 5.0, Active Cell Balancing for Extended Life Cycle
- Safety Features
- Thermal Regulation (Heated Cells), Built in Fire Extinguishers, Low Voltage Disconnect (LVD), Low Temp Charging Cutoff, Over Charge / Discharge Protection, Over Current Protection
- Battery Features
- EV Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC), Discharging: -4 to 149 ºF (-20 to 65 ºC)
Dimensions & Weight
- Dimensions (L x W x H)
Fitment & Compatibility
- Make
- Model
- Model Year
- 0
- Model Number
- Motor Controller
Warranty & Compliance
- Warranty
- Certifications
- UL 1642, UL 1973, CE, RoHS, UN38.3, IP67
- Standards
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Lithium Battery Conversion Kit
- SKU
- MJ5215168
- Shipping Weight
- 147.0 lb
