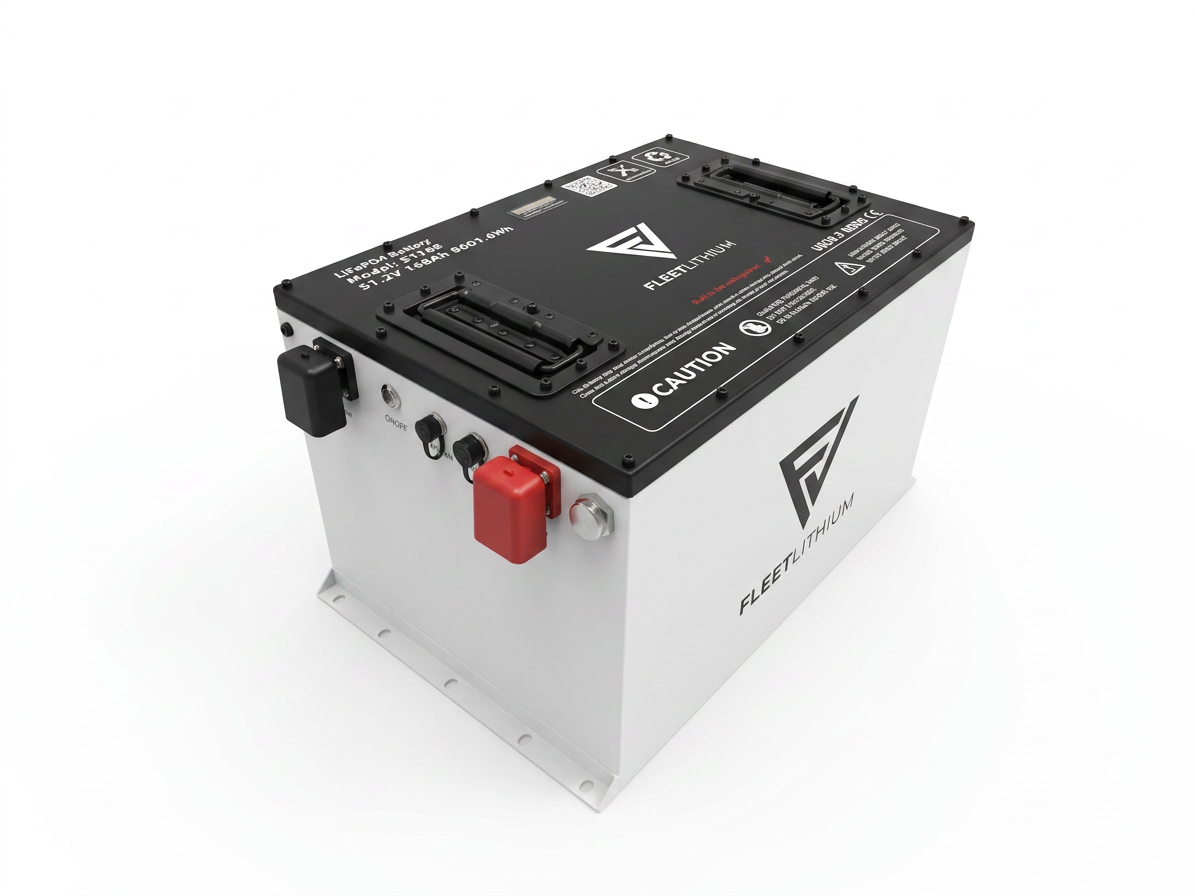

Drop-in 51.2V LiFePO4 replacement for tired 48V lead-acid banks — extended-range edition. 8,601Wh of fade-free energy, half the weight of lead, and zero maintenance. Monitor state of charge, voltage, and cycle count via Bluetooth. Patent-pending fire suppression and a 300A NexGen BMS keep you running through every shift, round, and run.
What This Upgrade Fixes
- Eliminates voltage sag and sluggish performance common in aging lead-acid setups
- Cures range anxiety with consistent, fade-free power down to the last drop of capacity
- Removes hundreds of pounds of dead weight, improving acceleration, handling, and braking
- Ends the hassle of terminal corrosion, acid leaks, and seasonal battery watering
What's Included
1× 51.2V 168Ah Fleet Lithium Battery. Standalone bare battery unit. A 58.4V lithium charger, custom wiring, and mounting brackets are not included — see our Bundle and Conversion Kit listings for complete drop-in packages.
Compatibility
Universal 51.2V power unit engineered as a one-for-one replacement for 48V lead-acid battery banks. Extended-range capacity is ideal for lifted carts, LSVs, UTVs, deep-cycle marine applications, and off-grid solar banks running factory 48V controllers — no reprogramming required for most vehicles.
Key Specs
- Chemistry: LiFePO4
- Nominal Voltage: 51.2V
- Capacity: 168Ah (8,601 Wh / 8.60 kWh)
- Cell Configuration: 16S1P
- Working Voltage: 43.2V – 58.4V
- Charging Voltage: 58.4V
- BMS Voltage Cutoff: 43.2V
- Recommended Low Voltage Disconnect: 49.0V

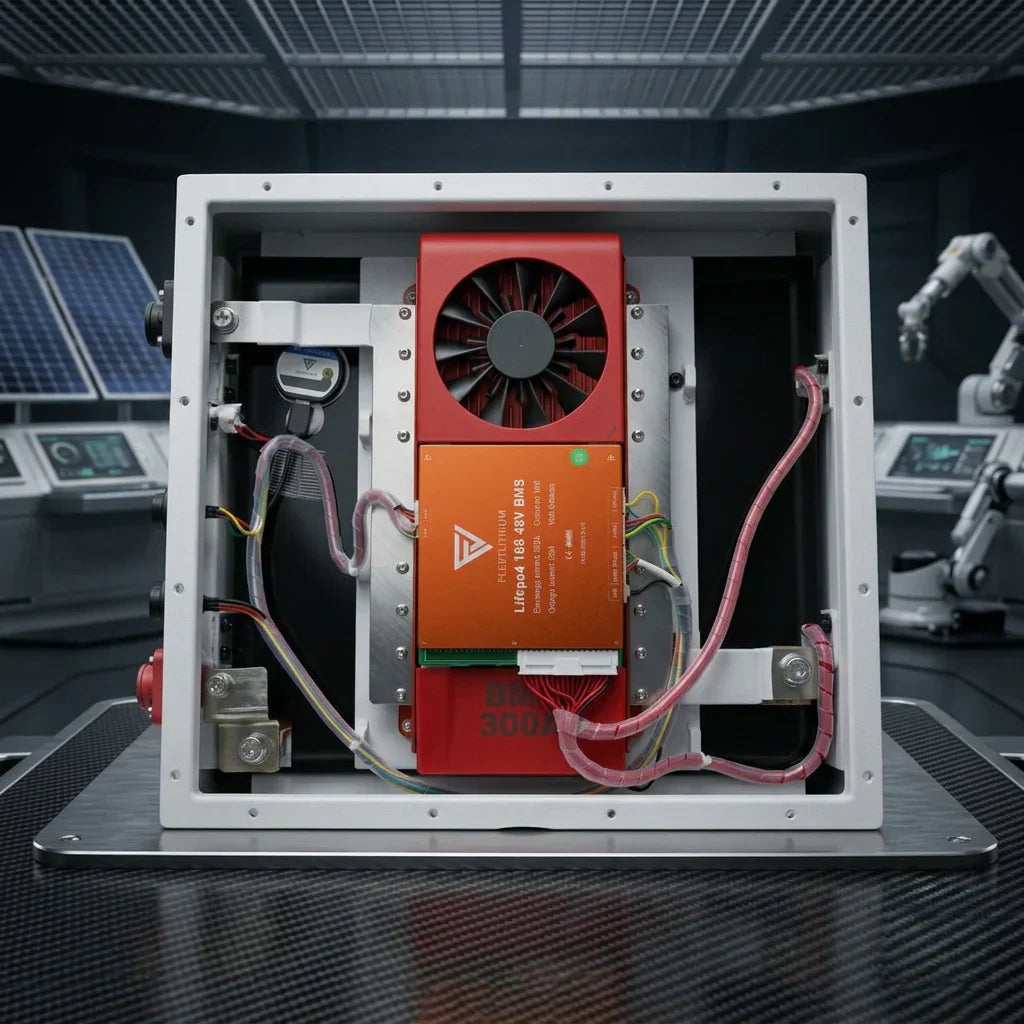

- 300A NexGen BMS with 800A peak surge
- Cycle Life: 5,000+ cycles at 80% DoD
- Weight: ~154 lbs (70 kg)
- Dimensions: 22" × 12" × 10.6"
- Enclosure: Cold rolled steel, IP65
- Operating Temp (Discharge): -20°C to 55°C (-4°F to 131°F)
- Operating Temp (Charge): 0°C to 55°C (32°F to 131°F) — heater activates below 32°F
- Communication: Bluetooth, GPS, RS485, UART, CAN
Frequently Asked Questions
Does this battery include a charger?
No — this listing is the bare battery only. You'll need a matched 58.4V LiFePO4 charger to run it.
- Best value: Grab the 51V 168Ah Fleet Lithium Bundle — battery + 58.4V smart charger + cable set + AC connector + state-of-charge gauge. Everything for a complete drop-in.
- Charger only: Add the CH5618 58.4V 18A Smart Charger alongside this battery.
Will this work in severe cold climates?
Yes. The NexGen BMS automatically activates internal heating below 32°F so the pack charges safely year-round.
How long will this battery actually last?
Engineered for over a decade of reliable performance and backed by our 10-year warranty. LiFePO4 cells are rated for 5,000+ cycles — at typical golf cart usage that translates to 10+ years of service life.
Will this work without reprogramming my controller?
In most cases, yes. Factory 48V controllers are generally compatible with the 51.2V output without modification.
Can I integrate this with a sophisticated motor controller?
Yes. The integrated BMS provides CANBUS and RS485 ports for advanced motor controllers and telemetry systems.
Is there a vehicle-specific kit with brackets?
Yes. If you're converting a specific golf cart (EZGO, Club Car, Yamaha, Advanced EV, etc.), our 48V Conversion Kits include this exact battery plus a model-specific bracket, charger, and all wiring — no fabrication required.
Quick answer: the 51V 168Ah Fleet Lithium Battery — NexGen BMS from Fleet Lithium has nominal voltage 51.2V, capacity 168 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), cell chemistry Lithium iron phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Cell Chemistry
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge , Advanced Battery Management System (BMS) , Active Cell Balancing for Extended Life Cycle
- Safety Features
- Low Temp Charging Cutoff , Over Charge / Discharge Protection , Over Current Protection , Low Voltage Disconnect (LVD)
- Battery Features
- EV Battery Features
- Operating Temperature
- Charging: 0°C to 45°C (32°F to 113°F) , Discharging: -20°C to 60°C (-4°F to 140°F)
Dimensions & Weight
- Dimensions (L x W x H)
- Length
- Width
- Height
- Weight
- 149.0 lb
Fitment & Compatibility
- Make
- Model
- Model Number
Warranty & Compliance
- Warranty
- Certifications & Standards
- UL 1642, UL 1973, CE, RoHS, UN 38.3, IP65, MSDS
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Individual Batteries
- SKU
- 51-VLT-168-AH
