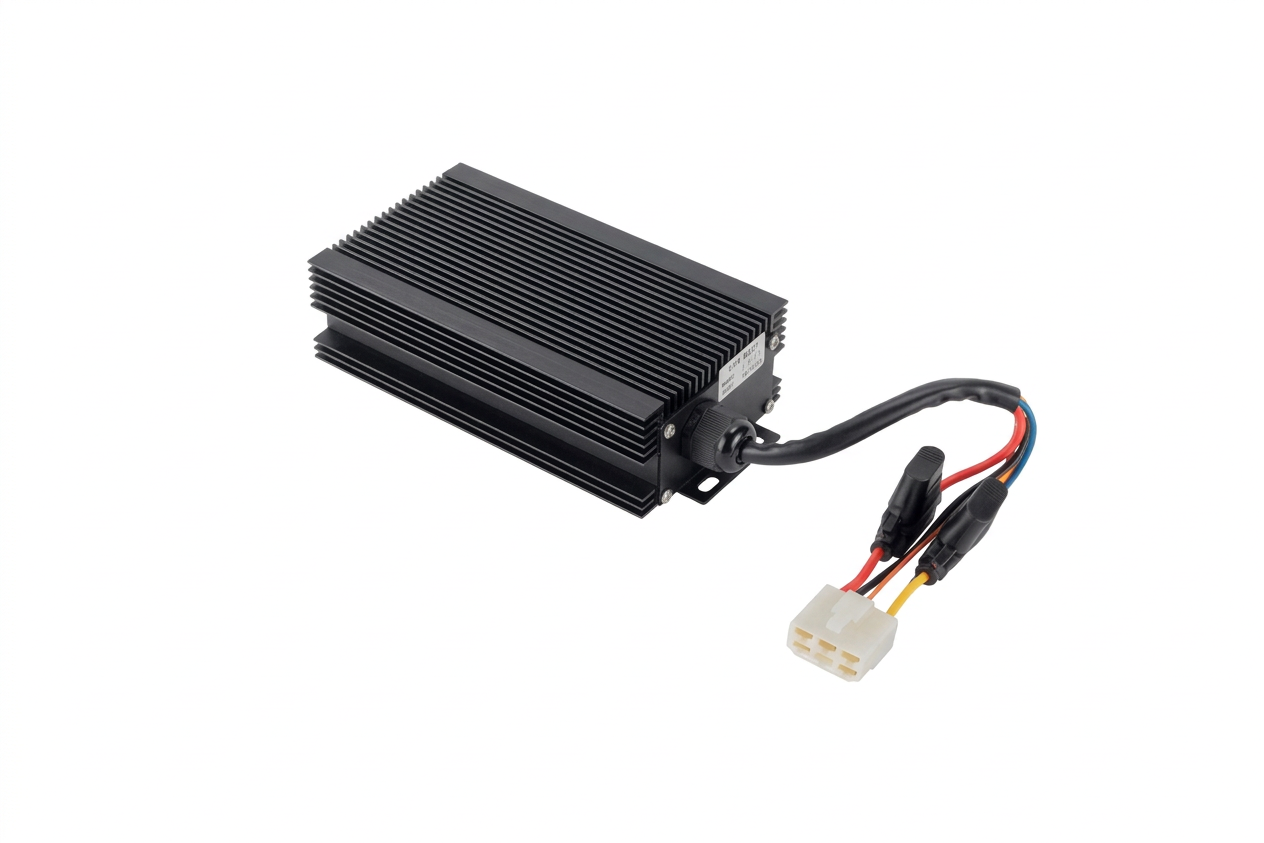

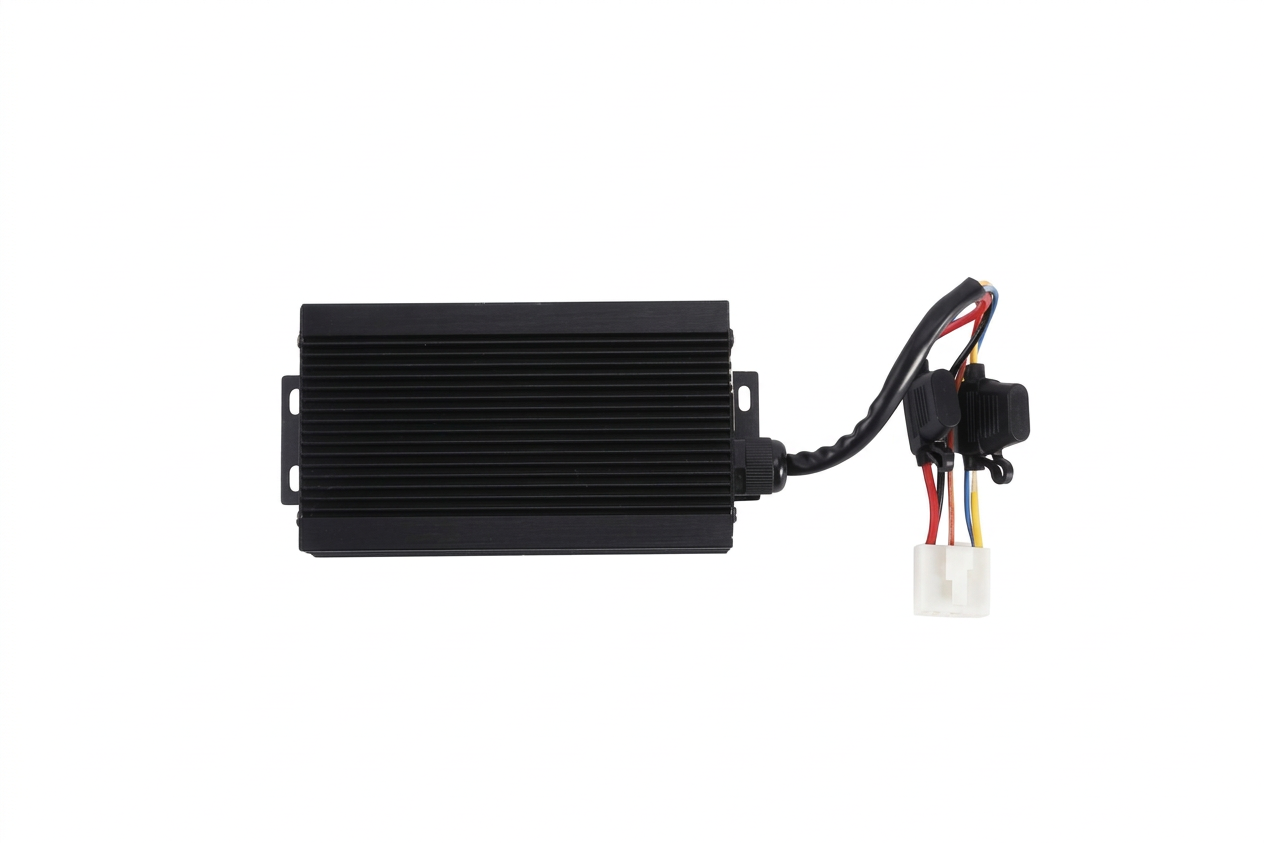

DC Converter 40-72V to 12V 25A + Harness (CV7526)
DC Converter 40-72V to 12V 25A + Harness (CV7526)is backordered and will ship as soon as it is back in stock.
DC Converter 40-72V to 12V 25A + Harness (CV7526)
DC-DC Converter 40-72V to 12V 25A with Wiring Harness
Part Number: CV7526
Step-down voltage converter that powers 12V accessories (headlights, turn signals, horn, radio, USB ports) from a compatible battery system within the converter's listed 40–72V DC input range. Includes a pre-wired harness for clean, plug-and-play installation.
Specifications
| Input Voltage | 40V – 72V DC |
| Output Voltage | 12V DC (regulated) |
| Max Output Current | 25A (300W) |
| Efficiency | ≥ 95% |
| Protection | Over-voltage, over-current, short-circuit, thermal shutdown |
| Enclosure | IP67 waterproof aluminum housing |
| Weight | 3 lbs |
What's Included
- ✔ 1x DC-DC converter (40-72V input → 12V output)
- ✔ 1x Pre-wired harness
- ✔ Mounting hardware
Why do I need a DC converter?
Most golf cart and LSV accessories (lights, horns, radios, USB chargers) run on 12V. When you upgrade from lead-acid to a 48V or 72V lithium pack, you need a converter to safely step the voltage down for these accessories.
How do I check battery compatibility?
The CV7526 is listed for 40–72V DC input. Before choosing this converter, confirm that your battery's fully charged voltage and operating voltage range are within the converter's supported input range. A battery's nominal 48V or 72V label alone does not establish compatibility. Contact Fleet Lithium if you need help confirming the match.
Quick answer: the DC Converter 40-72V to 12V 25A + Harness (CV7526) from Fleet Lithium has nominal voltage 76.8V, cell chemistry EVE Prismatic Cell - LiFePO4, warranty 12 Months. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Discharge Cutoff Voltage
Battery & BMS
- Cell Chemistry
Dimensions & Weight
- Weight
- 3.0 lb
Warranty & Compliance
- Warranty
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Accessories
- SKU
- CV7526
