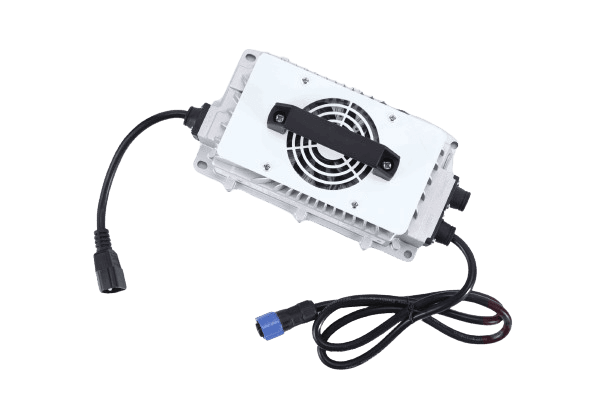

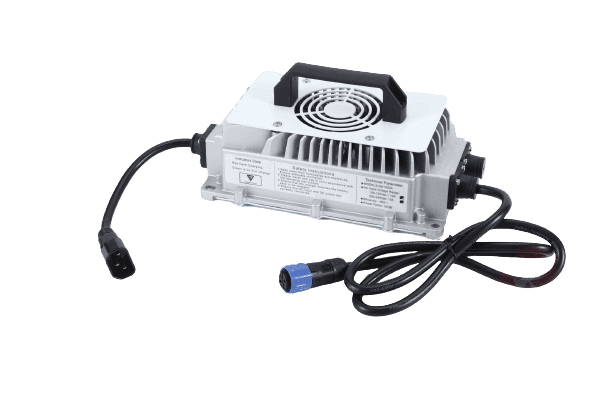

58.4V 18A On-board LiFePO4 Charger (CH5618)
58.4V 18A On-board LiFePO4 Charger (CH5618)is backordered and will ship as soon as it is back in stock.
Subscribe to our newsletter
Sign up for exclusive offers.
58.4V 18A On-board LiFePO4 Charger (CH5618)
58.4V 18A On-board LiFePO4 Charger (CH5618)
High-amperage on-board charger designed for Fleet Lithium 48V/51V conversion kits. The CH5618 delivers 18A of charging current for faster recharge times compared to the standard 12A replacement charger. Mounts directly on the vehicle for convenient plug-and-charge operation.
Key Specs
- Output Voltage: 58.4V (full charge)
- Charging Current: 18A
- Output Power: ~1,050W
- Charging Mode: Constant Current / Constant Voltage (CC/CV)
- Input: AC 100–240V, 50/60Hz
- Weight: ~5.0 lbs
- Part Number: CH5618
Safety Features
- Overcharge protection
- Overcurrent protection
- Short circuit protection
- Temperature monitoring
FAQ
What batteries does this work with? All Fleet Lithium 48V/51V LiFePO4 batteries and conversion kits.
How is this different from the standalone 51V charger? The CH5618 is an on-board charger (18A) included with conversion kits. The standalone replacement charger outputs 12A.
Can I use this as a replacement? Yes. If your kit originally included a CH5618, this is the correct replacement part.
Quick answer: the 58.4V 18A On-board LiFePO4 Charger (CH5618) from Fleet Lithium has nominal voltage 58.4V, cell chemistry EVE Prismatic Cell - LiFePO4, warranty 12 Months. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Charging Voltage
Battery & BMS
- Cell Chemistry
Dimensions & Weight
- Weight
- 7.0 lb
Warranty & Compliance
- Warranty
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Accessories
- SKU
- 51V-FL-CH
