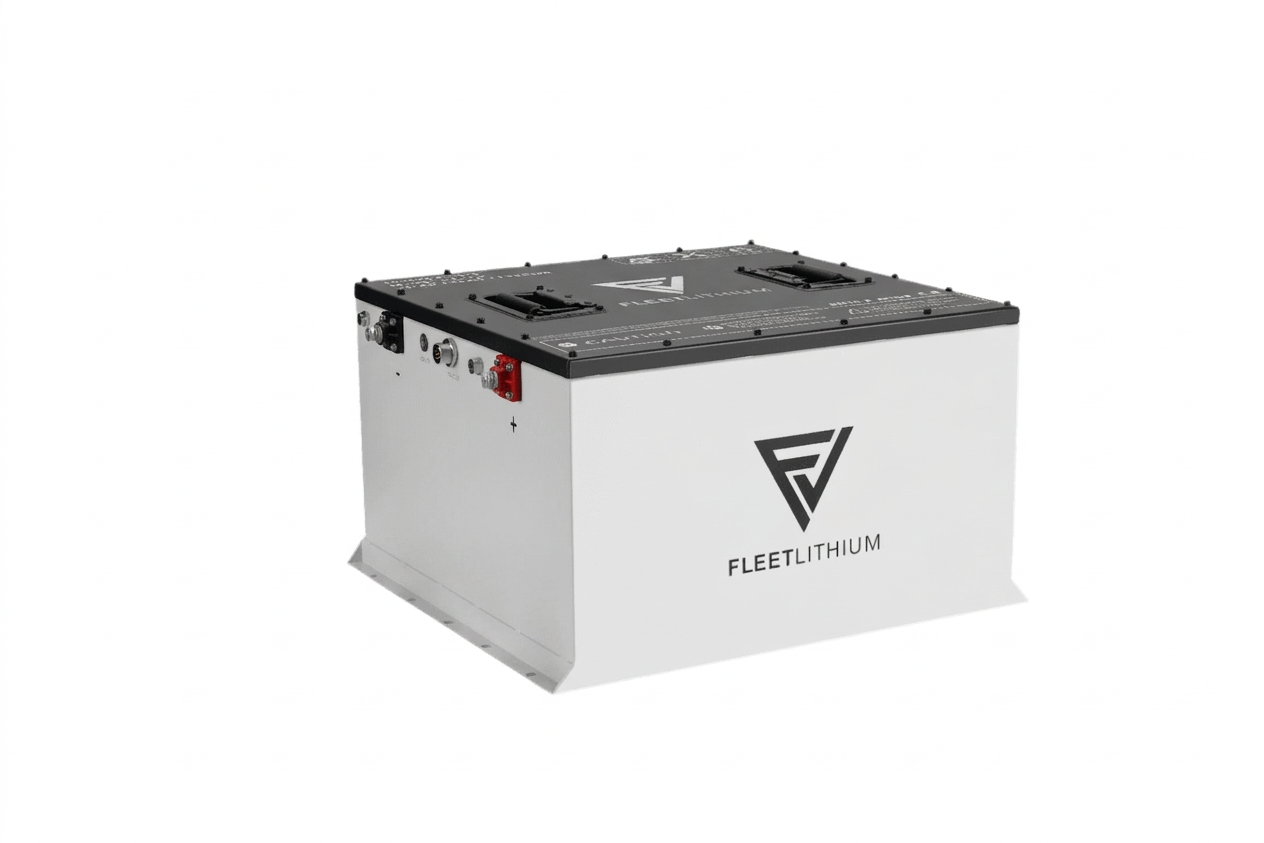

Star EV M-Series (All Years) (72V) Fleet Lithium Conversion Kit
10-Year Warranty / 5,000+ Cycles
10-Year Warranty / 5,000+ Cycles
Built for the long haul. Every Promise-series battery is backed by a 10-year manufacturer's warranty and rated for 5,000+ cycles at 80% depth of discharge. View full warranty details.
Product Highlights
Product Highlights
Star EV M-Series (All Years) (72V) Fleet Lithium Conversion Kit - 76.8V 105Ahis backordered and will ship as soon as it is back in stock.
Star EV M-Series (All Years) (72V) Fleet Lithium Conversion Kit
Upgrade Your Star EV M-Series to Fleet Lithium (72V)
Replace the factory lead-acid batteries in your Star EV M-Series 72V commercial shuttle with a high-performance 76.8V LiFePO4 pack from Fleet Lithium. Complete conversion kit included.
Choose Your Capacity
| Capacity | Range | Best For |
|---|---|---|
| 76.8V 105Ah | Up to 75 mi | Daily driving |
| 76.8V 168Ah | Up to 95 mi | Max range, all-day use |
What's Included
- 76.8V NexGen Fleet Lithium LiFePO4 Battery (selected capacity)
- CH8713 — 87.6V 13A LiFePO4 Smart Charger
- BR5214 — Star EV M-Series Bracket Kit
- AC0219 — AC Power Connector
- CB0917 — Cable Set (35.4")
- Digital State-of-Charge Gauge
- All mounting hardware
Key Specs
- 300A NexGen BMS with 800A peak surge
- Patent-pending fire suppression system
- Built-in cold-weather heater — activates automatically below 32°F
- Bluetooth monitoring
- 10-year warranty — designed and assembled in the USA
Fitment Guide
| OEM | Model | Years | Factory Voltage |
|---|---|---|---|
| Star EV | M-Series | All Years | 72V |
Controller Compatibility
Star EV M-Series models use a factory 72V AC controller. The 76.8V Fleet Lithium pack is compatible. No controller reprogramming typically required.
Will this fit my Star EV M-Series?
Yes. The BR5214 bracket kit provides a factory-fit installation.
Does my controller need reprogramming?
No.
Does it work in cold weather?
Yes. Built-in heater activates automatically below 32°F.
*Range estimates are maximums under ideal conditions.
Quick answer: the Star EV M-Series (All Years) (72V) Fleet Lithium Conversion Kit from Fleet Lithium has nominal voltage 76.8V, capacity 105 AH, continuous / peak discharge 300A continuous / 800A peak surge, cycle life 5,000+ cycles at 80% Depth of Discharge (DoD), chemistry Lithium Iron Phosphate (LiFePO4), warranty 10 Year Warranty. The complete specification table for this configuration is below.
Electrical & Performance
- Nominal Voltage
- Factory Pack Voltage
- Capacity
- Nominal Energy
- Continuous / Peak Discharge
- Cold Crank Amps
- Charging Voltage
- Charging Current
- Discharge Cutoff Voltage
- Cycle Life
Battery & BMS
- Chemistry
- Battery Technology
- Battery Type
- EV Battery Type
- BMS Features
- 300A Continuous / 800A Peak Surge Discharge, Advanced Battery Management System (BMS), Internal Heating for Cold Temp Charging, Active Cell Balancing for Extended Life Cycle, Built in Fire Extinguisher for Ultimate Safety
- Safety Features
- Thermal Regulation (Heated Cells), Low Voltage Disconnect (LVD), Over Charge / Discharge Protection, Over Current Protection
- Battery Features
- EV Battery Features
- Operating Temperature
- Charging: 32 to 140 ºF (0 to 60 ºC), Discharging: -4 to 149 ºF (-20 to 65 ºC)
Dimensions & Weight
- Dimensions (L x W x H)
Fitment & Compatibility
- Make
- Model
- Model Year
- 0
- Model Number
- Motor Controller
Warranty & Compliance
- Warranty
- Certifications
- UL 1642, UL 1973, CE, RoHS, UN38.3, IP67
- Standards
- Condition
- Manufacturer Relationship
Product Details
- Classification
- Colour / Finish
- Vendor
- Fleet Lithium
- Product Type
- Lithium Battery Conversion Kit
- SKU
- SE5214105
- Shipping Weight
- 120.0 lb
