51 Volt Fleet Lithium 105 AH Lithium Battery w/ NexGen BMS 103.0 lb

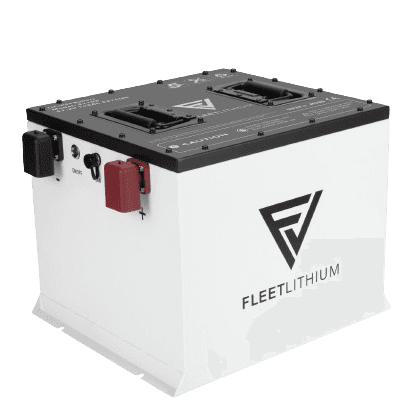

51 Volt 105Ah Fleet Lithium Battery

Overview

The 51 Volt 105Ah Fleet Lithium Battery is a high-performance energy storage solution designed for off-grid solar power systems, marine applications, electric vehicles, and more. With a robust Battery Management System (BMS) and features like Bluetooth monitoring, this battery offers exceptional reliability and longevity. It’s perfect for high-power applications that require consistent, long-lasting energy storage in a compact, lightweight form factor.

Key Features

• Voltage: 51V
• Capacity: 105Ah
• Nominal Energy: 5,355Wh
• Cycle Life: 3,000 to 5,000 cycles (at 80% DoD)
• Max Discharge Current: 250A continuous, 600A peak
• Weight: 103 lbs
• Dimensions: 13.8" x 11" x 9.0"
• Charging Time: 4-6 hours (depending on the charger used)

Battery Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51V
• Capacity: 105Ah
• Energy Storage: 5,355Wh
• Max Continuous Discharge Current: 105A
• Peak Discharge Current: 150A
• Charging Voltage: 58.8V
• Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
• Weight: 52-58 lbs
• Dimensions: 13.8" x 7.5" x 9.0"

Safety Features

• Overcharge protection
• Over-discharge protection
• Short circuit protection
• Overcurrent protection
• Thermal protection
• Reverse polarity protection
• Low voltage disconnect (LVD)

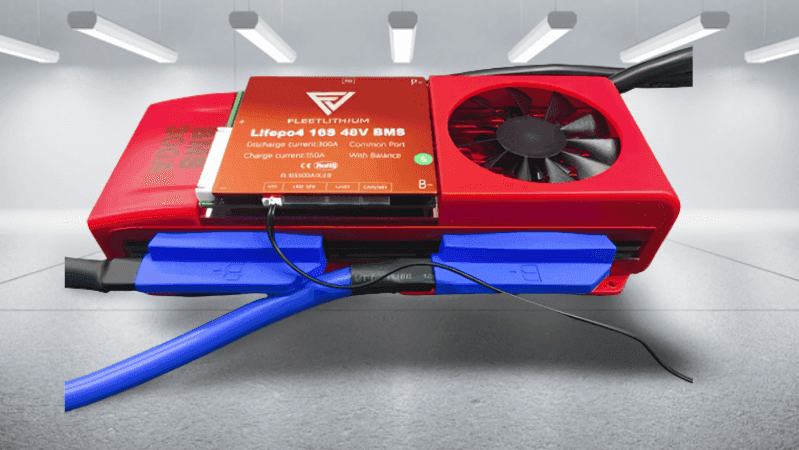

Battery Management System (BMS) Features

• Active and passive cell balancing for optimal performance
• Comprehensive protection against overcharging, over-discharge, short circuits, and temperature fluctuations
• Real-time monitoring through Bluetooth or an app for performance tracking
• Automatic shut-off in case of abnormal conditions
• Low voltage disconnect (LVD) to preserve battery health
• Voltage, current, and temperature monitoring for enhanced reliability

Certifications

• UL 1642
• UL 1973
• CE
• RoHS
• UN38.3 (for shipping)

Warranty

• 5 years or 3,000 cycles (whichever comes first)

Why Choose the 51 Volt 105Ah Fleet Lithium Battery?

• High Capacity & Efficiency: With 5,355Wh of energy storage, this battery is capable of powering large systems like off-grid solar arrays, high-performance electric vehicles, and other power-hungry applications.
• Extended Lifespan: LiFePO4 technology ensures up to 5,000 cycles at 80% depth of discharge (DoD), offering a significantly longer lifespan than
