51 Volt 160 AH Fleet Lithium Bundle 140.0 lb

51 Volt 160Ah Fleet Lithium Battery Bundle

Overview

The 51 Volt 160Ah Fleet Lithium Battery Bundle offers a powerful, high-capacity solution for high-demand applications. This bundle includes a 51V 160Ah battery, a 58V charger, Bluetooth module, and other essential accessories, ensuring a seamless integration and optimal performance. Designed for off-grid solar, electric vehicles, and marine applications, this bundle provides long-lasting power in a lightweight, durable package, making it ideal for both energy storage and high-performance usage.

What’s Included in the Bundle

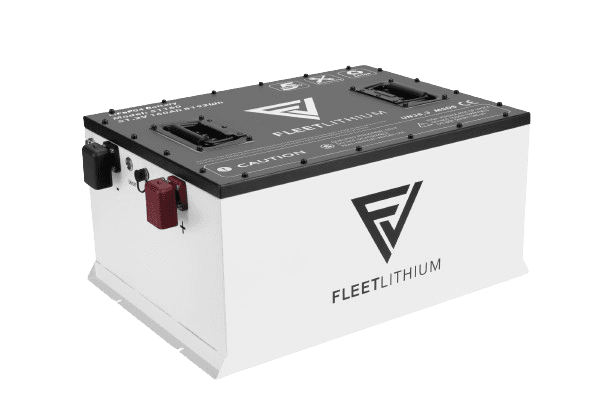

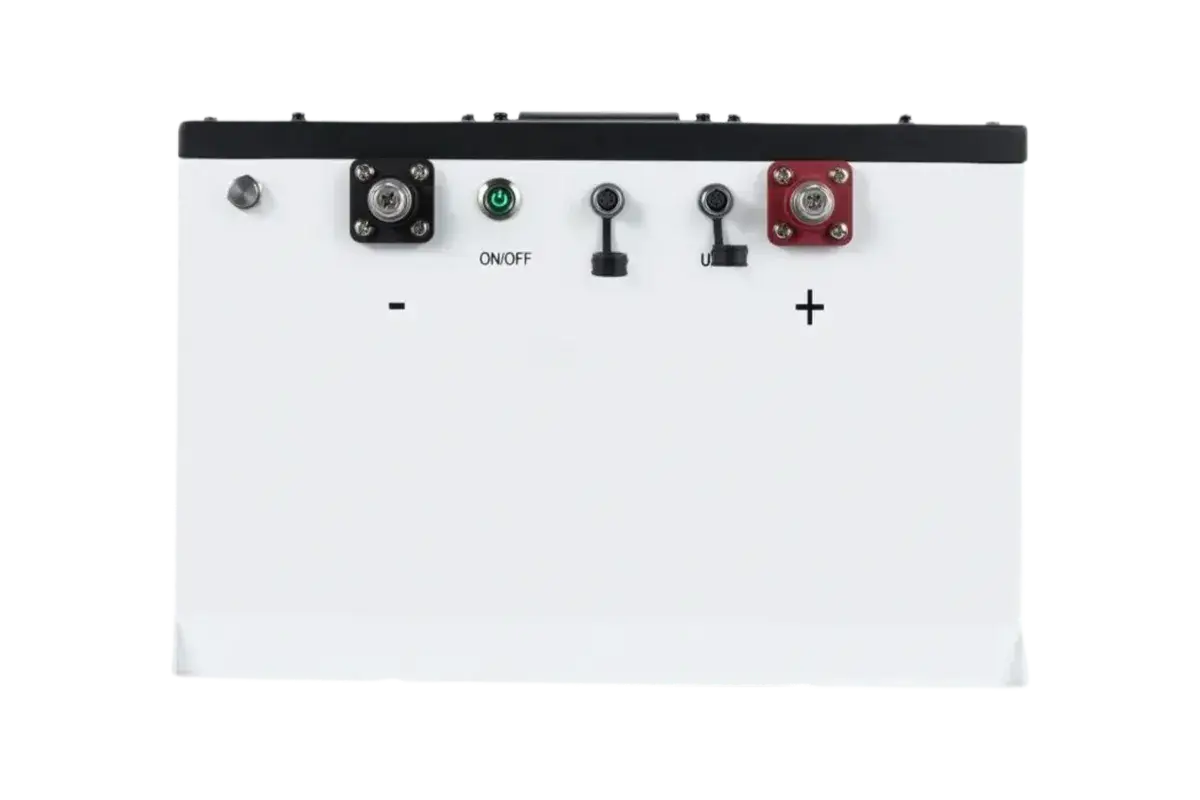

• 1 x 51 Volt 160Ah Fleet Lithium Battery: A high-performance lithium battery designed for long-lasting power and efficiency in demanding applications.

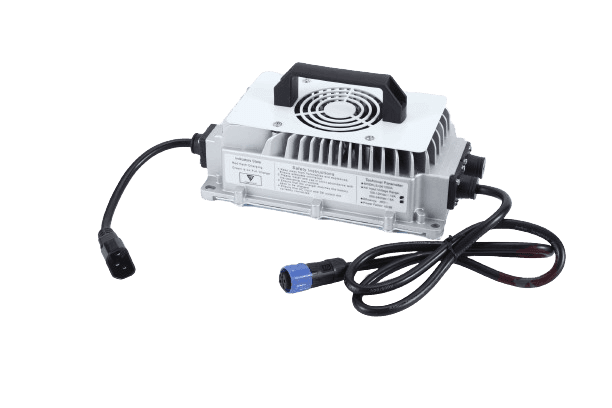

• 1 x 58 Volt Lithium Battery Charger: High-efficiency charger designed to charge the 51V battery quickly and safely, with automatic protections.
• 1 x Bluetooth Module: Allows real-time monitoring of the battery's state of charge and performance through a mobile app, enhancing battery management.
• 1 x GPS Module (Optional): Optional GPS tracking module to monitor the location and performance of your battery in remote locations or large systems.

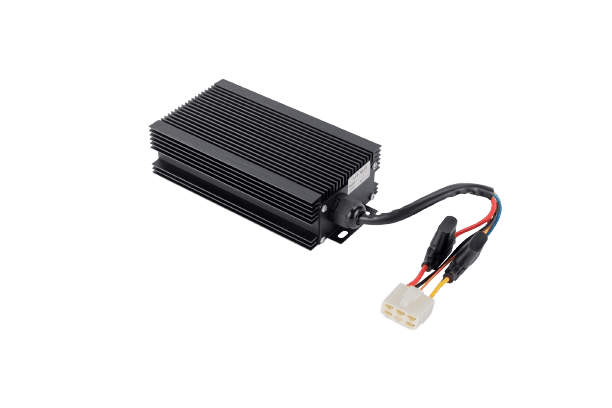

• 1 x DC Voltage Reducer: Efficiently reduces voltage for use with lower voltage systems, maintaining performance without compromising on power.

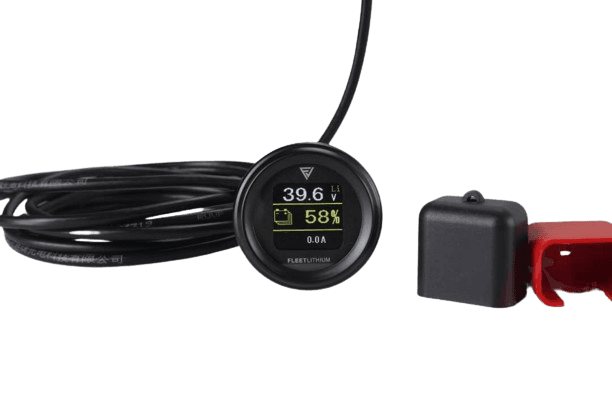

• 1 x Round State of Charge Meter: Provides clear and accurate readings of the battery’s charge level in real-time, preventing overdischarge.

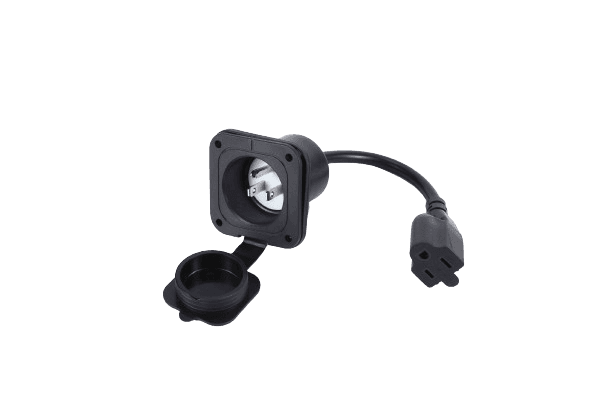

• 1 x Universal Charge Receptacle: A versatile charging receptacle for easy battery charging and integration with other systems.

Battery Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51V
• Capacity: 160Ah
• Energy Storage: 8,160Wh
• Max Continuous Discharge Current: 250A
• Peak Discharge Current: 600A
• Charging Voltage: 58V
• Cycle Life: 3,000 to 5,000 cycles (80% Depth of Discharge)
• Weight: 136 lbs
• Dimensions: 20.12" x 14.17" x 9.23"

Charger Specifications

• Input Voltage: 110V-240V AC
• Output Voltage: 58V
• Charging Current: 10A
• Efficiency: 95%
• Charger Type: Automatic with built-in protections for safety and efficiency
• Dimensions: 9.5" x 6.0" x 4.5"

State of Charge Meter Specifications

• Display Type: Digital LCD
• Voltage Monitoring: 0-60V
• Current Monitoring: 0-100A
• Capacity Monitoring: Displays battery capacity as a percentage (0-100%)
• Dimensions: 2.0" x 3.5" x 0.5"

Safety Features

• Overcharge protection
• Over-discharge protection
• Short circuit protection
• Overcurrent protection
• Thermal protection
• Reverse polarity protection
• Low voltage disconnect (LVD)

Battery Management System (BMS) Features

• Active and passive cell balancing for optimal performance
• Comprehensive protection against overcharging, over-discharge, short circuits, and temperature fluctuations
• Real-time monitoring through Bluetooth or app for performance tracking
• Automatic shut-off in case of abnormal conditions
• Voltage, current, and temperature monitoring for enhanced reliability

Certifications

• UL 1642
• UL 1973
• CE
• RoHS
• UN38.3 (for shipping)

Warranty

• 5 years or 3,000 cycles (whichever comes first)

Why Choose the 51 Volt 160Ah Fleet Lithium Battery Bundle?

• Complete Solution: This bundle provides everything you need to power your energy storage system or high-demand application, making it a complete energy solution.
• High Capacity & Efficiency: With 8,160Wh of energy storage, the 51V 160Ah battery is capable of powering large systems such as off-grid solar arrays, electric vehicles, and marine applications for extended periods.
• Extended Lifespan: The LiFePO4 technology ensures up to 5,000 cycles at 80% depth of discharge, providing a much longer lifespan compared to traditional lead-acid batteries.
• Compact & Lightweight: Despite its high capacity, the 51V 160Ah battery is compact and lightweight, making it ideal for space-constrained applications like RVs, boats, and vehicles.
• Bluetooth Monitoring: The built-in Bluetooth module allows you to monitor the battery’s state of charge and performance from your smartphone, making battery management convenient and efficient.
• All-in-One Protection: The integrated BMS provides active balancing, voltage and current protection, and thermal safeguards to ensure long-lasting and safe operation in all conditions.
• Waterproof & Durable: IP67 rated for dust and water protection, the 51V 160Ah battery is designed to withstand harsh marine, outdoor, and off-grid environments.
• Fast Charging: The 51V 160Ah Fleet Lithium Battery charges rapidly, keeping your systems operational with minimal downtime.

Application Scenarios for the 51 Volt 160Ah Fleet Lithium Battery Bundle

• Off-Grid Solar Systems: Ideal for storing energy in solar-powered homes, cabins, or businesses in remote locations without access to the grid, ensuring reliable power for extended periods.
• Electric Vehicles (EVs): Suitable for powering large electric vehicles, including golf carts, electric motorcycles, and other electric transportation, providing energy-efficient solutions with a long life cycle.
• Marine Applications: Perfect for powering boats, yachts, and trolling motors, the 51V 160Ah battery ensures longer run times and efficient energy management on the water.
• RV Power Systems: Ideal for RVs, providing reliable energy to power all electrical systems, from lights and appliances to air conditioning and other high-demand devices.
• Hybrid Energy Systems: Can be used in hybrid solar-wind systems or as a backup power source for critical systems, offering a green and reliable energy storage solution.
